Brand: Inaxsys Security Systems
|
SKU:
10013620

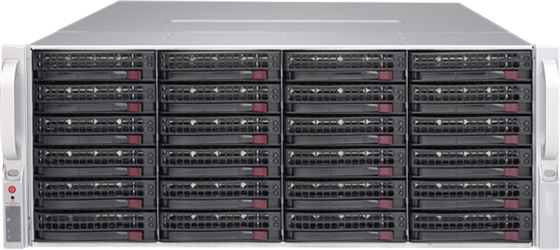

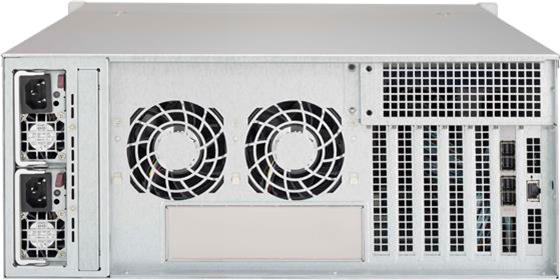

Inaxsys Security Systems 4U-IPS-120T-RAID5-HSDS | Inaxsys 4U Rackmount hot-swappable drive IP Server with RAID5 and redundant PSU, 120000 GB (112TB Usable)
Regular price
$29,421.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Inaxsys Security Systems 4U-IPS-120T-RAID5-HSDS | Inaxsys 4U Rackmo...
Regular price
$29,421.64
Unit price
Brand: Inaxsys Security Systems
|
SKU:
10013620
Regular price
$29,421.64
Unit price
Shipping calculated at checkout.
Description
Description
Inaxsys Security Systems 4U-IPS-120T-RAID5-HSDS | Inaxsys 4U Rackmount hot-swappable drive IP Server with RAID5 and redundant PSU, 120000 GB (112TB Usable)
Parts / Vendor ONLY sold in Canada and to Canadian Certified Customers.
Inaxsys Security Systems - 4U-IPS-120T-RAID5-HSDS - Features
- All-in-OneSolution
- Video recording, web/mobile clienthosting, and local live video display
- from the same server.
- UnlimitedScalability
- Can come pre-loaded with Arkiv,IVTVision or STORM video management
- system (VMS) software, or can run yourfavorite VMS. Manage individual
- systems from the same user interface orupgrade to your VMS software to
- easily manage multiple serverssimultaneously.
- Enterprise-ClassStorage
- Up to 192 TB of storage per serverusing continuous duty enterprise-class
- drives. RAID5 is standard on theseservers and RAID6 is optional.
- Enterprise-ClassHardware
- Windows 10 Professional is the standardoperating systems, with Windows
- 2012 or 2016 optional. Dual redundantpower supply and Hot-swappable
- Enterprise-Class Hard drives arestandard.
- 3-YearHardware Warranty, 3-Year Software
- SubscriptionAgreement (SSA)
- 3-year hardware warranty and SSA included.
Specifications
Specifications
Inaxsys Security Systems - 4U-IPS-120T-RAID5-HSDS - Product Categories
- Security
- Video Surveillance
- Video Servers and Storage
Inaxsys Security Systems - 4U-IPS-120T-RAID5-HSDS - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | 4U-IPS-120T-RAID5-HSDS |
| Item Description | Inaxsys 4U Rackmount hot-swappable drive IP Server with RAID5 and redundant PSU, 120000 GB (112TB Usable) |
| Hard Drive Type | Sata |
| Type | Server |
| Mount Type | Rack |
| Operating System | Windows |
| UNSPSC Code | 46171600 |
| Disk space | 120 TB |
| UPC | 685225301325 |
| Raid | Equiped |
| Hot swap | Equiped |
| Dual supply | Equiped |
| Maximum IP Cameras | Data rate dependent; VMS Application dependent |
| Video Management Software | Arkiv, STORM, LEGEND ou des logiciels tiers tels que ExacqVision™, Genetec™, Milestone™, Avigilon™, etc. |
| Server OS | Windows 11 Pro 64 bit (standard) |
| Maximum Storage | 384 TB |
| Drive Bays | 24x 3.5” hot-swap drive bay |
| DVD / CD-ROM | Optional |
| Keyboard & Mouse | Included |
| Network Controllers | Dual LAN with Intel® Ethernet i225LM |
| LAN | PCIE Network Card (Startech ST1000SPEX2L GbE, TP-Link TG-3468, or equivalent) |
| SATA | Intel Q670E controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| PCI-E Add on Card | Up to 2 NVMe SSDs |
| CPU | Latest Generation Intel®Core i7, 30M Cache, up to 5.20 GHz |
| Core | Up to 24 cores |
| Solid-State Drive | 2 x 1TB NVMe M.2 SSD |
| *Maximum Video Storage Rate | 1000 to 1200 Mbps (Windows) |
| RAM | 2 x 8GB Memory DDR-5/4800 (or faster) |
| Memory Type | 4400/4000/3600 MT/s |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.1V |
| USB Ports | 6 x USB 2.0 & 6 x USB 3.1 |
| Display Outputs | 1 VGA port, 1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port |
| SATA | 8 SATA3 (6Gbps) port(s) |
| Input Voltage | 1200W with Input 200 - 240Vac; 1000W with Input 100 - 127Vac; 1200W with Input 200 - 240Vdc |
| Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm |
| Heatsink/Fan | Speed Control: 4-pin PWM; Rated Voltage: 12.0 VDC; Rated Speed: 3,800 RPM |
| Dimensions | 178 mm x 437 mm x 660 mm |
| Weight | 118 lbs |
| Réglement ation | BSMI CCC CE/EMC FCC classe A UL/CB UL/CUL |
| Optional | Windows Server 2022/2024 32-bit or 64-bit |
