Brand: Inaxsys Security Systems
|
SKU:
10013647

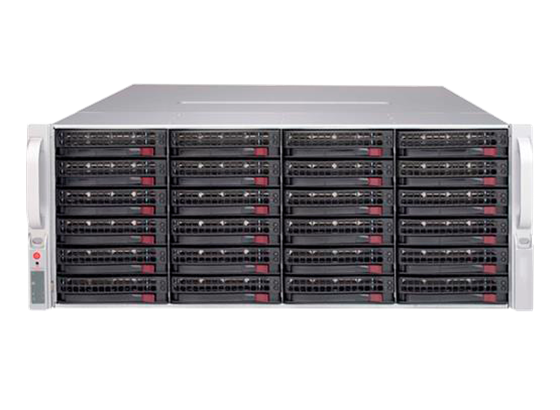

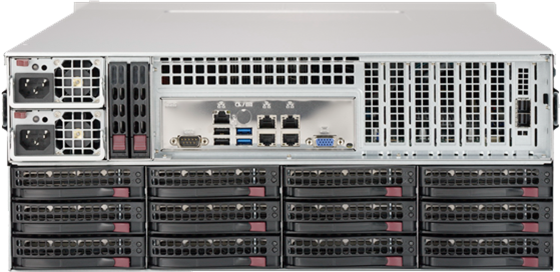

Inaxsys Security Systems 4U-MIPS-272T-RAID5-HSDS | Inaxsys 4U Rackmount hot-swappable drive IP Server with RAID5 and redundant PSU, 272000 GB (264TB Usable)
Regular price
$38,009.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Inaxsys Security Systems 4U-MIPS-272T-RAID5-HSDS | Inaxsys 4U Rackm...
Regular price
$38,009.86
Unit price
Brand: Inaxsys Security Systems
|
SKU:
10013647
Regular price
$38,009.86
Unit price
Shipping calculated at checkout.
Description
Description
Inaxsys Security Systems 4U-MIPS-272T-RAID5-HSDS | Inaxsys 4U Rackmount hot-swappable drive IP Server with RAID5 and redundant PSU, 272000 GB (264TB Usable)
Parts / Vendor ONLY sold in Canada and to Canadian Certified Customers.
Inaxsys Security Systems - 4U-MIPS-272T-RAID5-HSDS - Features
- All-in-One Solution
- Video recording, web/mobile client hosting, and local live video display from the same server.
- Unlimited Scalability
- Can come pre-loaded with Arkiv, IVTVision or STORM video management system (VMS) software, or can run your favorite VMS. Manage individual systems from the same user interface or upgrade to your VMS software to easily manage multiple servers simultaneously.
- Enterprise-Class Storage
- Up to 288 TB of storage per server using continuous duty enterprise-class drives. RAID5 is standard on these servers and RAID6 is optional.
- Enterprise-Class Hardware
- Windows 10 Professional is the standard operating systems, with Windows 2012 or 2016 optional. Hot-swappable Enterprise-Class Hard drives are optional.
- 3-Year Hardware Warranty, 3-Year Software Subscription Agreement (SSA)
- 3-year hardware warranty and SSA included.
Specifications
Specifications
Inaxsys Security Systems - 4U-MIPS-272T-RAID5-HSDS - Product Categories
- Security
- Video Surveillance
- Video Servers and Storage
Inaxsys Security Systems - 4U-MIPS-272T-RAID5-HSDS - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | 4U-MIPS-272T-RAID5-HSDS |
| Item Description | Inaxsys 4U Rackmount hot-swappable drive IP Server with RAID5 and redundant PSU, 272000 GB (264TB Usable) |
| Hard Drive Type | Sata |
| Type | Server |
| Mount Type | Rack |
| Operating System | Windows |
| UNSPSC Code | 46171600 |
| Disk space | 272 TB |
| UPC | 685225302605 |
| Raid | Equiped |
| Hot swap | Equiped |
| Dual supply | Equiped |
| Maximum IP Cameras | Data rate dependent; VMS Application dependent |
| Video Management Software | Arkiv, STORM, LEGEND or 3rd party software such as ExacqVision™, Genetec™, Milestone™, Avigilon™, and more |
| Server OS | Windows 11 Pro 64 bit (standard) |
| Maximum Storage | 576 TB |
| Drive Bays | Optional 2x 2.5” hot-swap drive bay, 36x 3.5” hot-swap SAS/SATA drive bay with SES3 |
| DVD / CD-ROM | Optional |
| Keyboard & Mouse | Included |
| Network Controllers | Dual LAN with Intel® Ethernet i225LM LAN, PCIE Network Card (Startech ST1000SPEX2L GbE, TP-Link TG-3468, or equivalent) |
| SATA | Intel Q670E controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| PCI-E Add on Card | Up to 2 NVMe SSDs |
| CPU | Latest Generation Intel® Core i7, 30M Cache, up to 5.20 GHz |
| Core | Up to 24 cores |
| Solid-state Drive | 2 x 1TB NVMe M.2 SSD |
| Maximum Video Storage Rate | 1000 to 1200 Mbps (Windows) |
| RAM | 2 x 8GB Memory DDR-5/4800 (or faster) |
| Memory Type | 4400/4000/3600 MT/s |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.1V |
| USB Ports | 6 x USB 2.0 et 6 x USB 3.1 |
| Display Outputs | 1 port VGA, 1 port HDMI, 1 port DP (DisplayPort), 1 port DVI - D |
| SATA Input Voltage | 8 SATA3 (6Gbps) port(s) |
| Power Supply | 1000W with Input 100 - 127Vac, 1200W with Input 200 - 240Vdc |
| 1U 1200W/1000W Titanium Power Supply W/PMbus | Yes |
| Heatsink/Fan Dimensions | W76xL336xH40mm |
| Weight | 118 lbs |
| Regulatory | BSMI CCC CE/EMC FCC classe A UL/CB UL/CUL |
| OS | Windows Server 2022/2024 32-bit or 64-bit |
