Inaxsys Security Systems | 5.1MP Active Deterrence 32X PTZ
Regular price
$1,327.37
Unit price
Brand: Inaxsys Security Systems
|
SKU:
10507068
Regular price
$1,327.37
Unit price
Description
Description

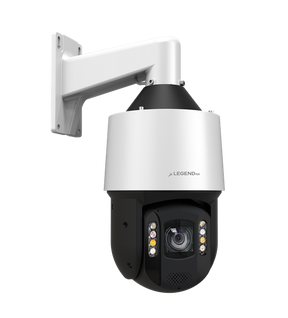

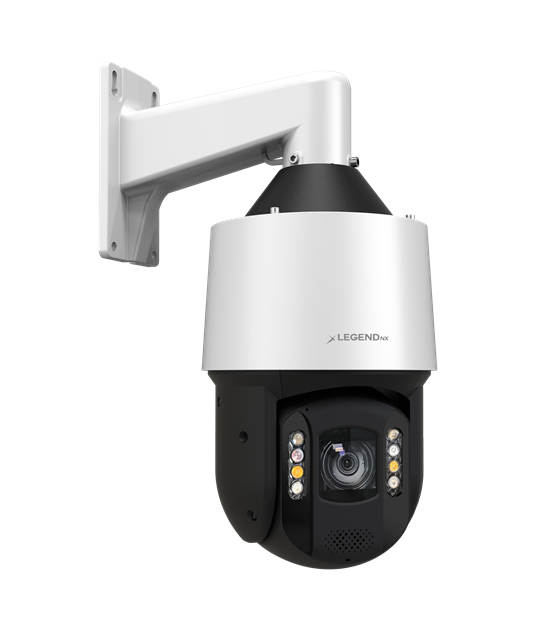

Inaxsys Security Systems LGNXDO5ADWPTZ32X | 5.1 MP ACTIVE DETERRENCE 32X PTZ
Inaxsys Security Systems - LGNXDO5ADWPTZ32X - Features
- This 5MP camera offers high-resolution imaging with a 32x optical zoom and 130dB Superior True WDR technology for clear details in various lighting conditions. It features automatic tracking, up to 200m IR range, built-in mic and audio, and iQuality technology for precise detection of humans and vehicles, all housed in an IP67 water and dust-resistant design.
- 5MP High-Resolution Imaging
- 32x Optical zoom
- Smart target recognition of humans & vehicles powered by deep learning
- 130dB Superior True WDR Technology
- Automatic Tracking
- Up to 200m IR Range
- IP67: Water and dust resistant
- Built-in Microphone and Audio
- Includes a wall mount support, a seismic cord, a 36V power supply with its power cord, concrete bolts, and sealing tape for a secure and durable installation.
Specifications
Specifications
Inaxsys Security Systems - LGNXDO5ADWPTZ32X - Product Categories
- Hardware
- Tools and Supplies
- Miscellaneous
Inaxsys Security Systems - LGNXDO5ADWPTZ32X - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | LGNXDO5ADWPTZ32X |
| Item Description | 5.1 MP ACTIVE DETERRENCE 32X PTZ |
| UNSPSC Code | 43222500 |
| UPC | 685225204039 |
| Image Sensor | 1/2.8” Progressive Scan CMOS Sensor |
| Minimum Illumination | Color: 0.005 Lux at F1.6, B/W: 0.0005 Lux at F1.6, 0 Lux with IR light on |
| Illumination Distance | 200m / 656.2ft (IR light), 50m / 164.04ft (Warm light) |
| Illumination | 4 IR LED, 2 Laser, 4 White light LED |
| Active Deterrence LED | 1 Red light and 1 Blue light |
| Wavelength | 850nm |
| IR On/Off Control | Automatique/Manual |
| Shutter Time | Auto/Manual, 1/1 ~ 1/100000s |
| Smart IR | Supported |
| S/N Ratio | >56dB |
| Focal Length | 32x optical zoom / 16x digital zoom, 4.8 ~ 154 mm |
| Aperture | F1.6 ~ F4.3 |
| Field of View | 4.8 ~ 154 mm: Horizontal FOV: 54.4° ~ 2.3°, Vertical FOV: 41.1° ~ 1.7°, Diagonal FOV: 67.2° ~ 2.8° |
| Zoom Speed | 5.66s |
| Focus Control | Auto, Semi-Auto, Manual |
| DORI Distance | Detection: 109m; Observe: 43.6m; Recognize: 21.8m; Identify: 10.9m (4.8 mm) Detection: 2500m; Observe: 1000m; Recognize: 500m; Identify: 250m (154 mm) |
| Maximum Resolution | 5MP (2592 × 1944) |
| Frame Rate (Main Stream) | 50Hz: 25ips: 2592 × 1944, 2304 × 1728, 1920 × 1080, 1280 × 960, 1280 × 720; 60Hz: 30fps: 2592 × 1944, 2304 × 1728, 1920 × 1080, 1280 × 960, 1280 × 720 |
| Frame Rate (Sub Stream) | 50Hz: 25ips: (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Frame Rate (Third Stream) | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| U-code | H.264+ / H.265+ |
| Image Setting | Brightness / Contrast / Saturation / Hue / Sharpness |
| White Balance | Supported |
| Day/Night | IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 130 dB |
| Digital Noise Reduction | 2D/3D DNR |
| BLC, HLC, ROI, Starlight | Supported |
| RotateX | Supported |
| Video Compression | Main Stream: H.265+ / H.265 / H.264+ / H.264; Sub Stream: H.265 / H.264 / MJPEG; Third Stream: H.265 / H.264 |
| H.265 Code C Profile | Main Profile |
| H.254 Code C Profile | Base Profile / Main Profile / High Profile |
| Video Bit Rate | 32Kbps ~ 16Mbps |
| Triple Streams | Support |
| Audio Compression | Auto/Manual |
| Two-way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHz |
| Basic Event | Motion Detection, Video Tampering |
| Smart Event | Smart motion detection, line crossing, area intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle)) |
| Auto Tracking | Supported |
| Face Detection | Supported |
| Active Deterrence | Red & Blue warning light and supported sound warning |
| Network Storage | NAS (NFS / CIFS) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnPTM, P2P |
| System Compatibility | ONVIF (Profile S, Profile G, Profile T0, CGI |
| Security | User Authentication, IP address filtering |
| User | 40 |
| Software | ARKIV, Legend NX |
| Web Browser | Live view plug-in required: IE 10, IE 11 Local Service: Chrome 57.0 and + and Firefox 52.0 and + |
| Mobile Surveillance | IOS, Android |
| Communication Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Storage | Up to 512 GB |
| Built-in Mic | Supported |
| Built-in Speaker | Supported |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | - |
| Video Output | - |
| Reset Button | Supported |
| Pan Range | 360° endless |
| Pan Speed | Configurable from 0.1° to 240°/s; Preset speed: 240°/s |
| Tilt Range | –15° to +90° (auto flip 180°) |
| Tilt Speed | Configurable from 0.1° to 80°/s, preset speed 200°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 255 |
| Power-off Memory | Supported |
| Patrol | 32 Automatic patrols |
| Preset Patrol | 32 patrols, up to 32 presets for each patrol |
| Route Patrol | Supported |
| Recorded Patrol | 8 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s ~ 255s |
| Preset Image Freeze | - |
| Home Position | Supported |
| 3D Positioning | Supported |
| Operating Conditions | ( -40 °C ~ 70 °C ) ( -40 °F ~ 158 °F ); Humidity 95% or less (non-condensing) |
| Power Supply | DC36V |
| Power Consumption | Max 30W |
| Power Interface | Pressed wire connectors with a spacing of 8mm |
| Protection Level | IP67 |
| Surge Protection | 6000V lightning protection, surge protection and anti-surge protection |
| Dimensions | ?190 × 339.8mm (7.48’’ × 13.38’’) |
| Weight | 7650g / 16.86 lb |
