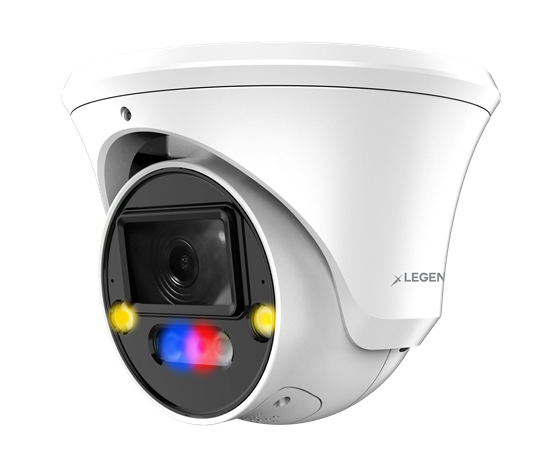

Inaxsys Security Systems | 5.1MP Active Deterrence Fixed Lens Turret Network Camera
Regular price
$232.40
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Inaxsys Security Systems | 5.1MP Active Deterrence Fixed Lens Turre...
Regular price
$232.40
Unit price
Brand: Inaxsys Security Systems
|
SKU:
10508258
Regular price
$232.40
Unit price
Description
Description
Inaxsys Security Systems LGNXTO5ADWF | 5.1 MPACTIVE DETERRENCE TURRET NETWORK CAMERA FIXED LENS
Inaxsys Security Systems - LGNXTO5ADWF - Features
- This 5MP camera delivers high-resolution imaging with advanced H.265+ compression for efficient storage and 120 dB WDR technology for enhanced clarity in varying lighting conditions. It features deep learning for accurate human and vehicle detection, active deterrence with red and blue lights, IP67-rated weather resistance, and built-in audio and alarm interfaces.
- 5MP High-Resolution Imaging
- Improve human and vehicle classification using deep learning
- 120 dB true WDR Technology
- Active Deterrence with Red & Blue lights
- Water and dust resistant (IP67)
- Built-in microphone, audio & alarm interface
- Advanced H.265+ Compression
Specifications
Specifications
Inaxsys Security Systems - LGNXTO5ADWF - Product Categories
- Security
- Video Surveillance
- Surveillance Cameras
Inaxsys Security Systems - LGNXTO5ADWF - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | LGNXTO5ADWF |
| Item Description | 5.1 MPACTIVE DETERRENCE TURRET NETWORK CAMERA FIXED LENS |
| Lens Type | Fixed |
| Position Type | Fixed |
| UNSPSC Code | 46171610 |
| UPC | 685225309000 |
| Image Sensor | 1/2.7” Progressive Scan CMOS Sensor |
| Minimum Illumination | Color: 0.003 Lux (F1.0, AGC ON), 0 Lux with light |
| Illumination Distance | 30m / 98.43ft (IR light), 30m / 98.43ft (Warm light) |
| Strobe Light | - |
| Smart IR | Supported |
| Pan / Tilt / Rotation Range | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360° |
| Focal Length | 2.8mm |
| Aperture | F1.0 |
| Field of View | 2.8mm: Horizontal: 103°, Vertical: 55°, Diagonal: 122° |
| Lens Mount | M12 |
| DORI | 2.8mm Detect: 67m, Observe: 25.9m, Recognize: 13m, Identify: 6.5m |
| Maximum Resolution | 5MP (2880 × 1620) |
| Main Stream | 50Hz: 25fps 5MP (2880 × 1620), 4MP (2688 × 1520), 4MP (2560 × 1440), 1080P (1920 × 1080); 60Hz: 30fps 5MP (2880 × 1620), 4MP (2688 × 1520), 4MP (2560 × 1440), 1080P (1920 × 1080) |
| Sub Stream | 50Hz: 25fps 720P (1280 × 720), D1 (704 × 576), CIF (352 × 288); 60Hz: 30fps 720P (1280 × 720), D1 (704 × 480), CIF (352 × 240) |
| Third Stream | 50Hz: 25fps CIF (352 × 288); 60Hz: 30fps CIF (352 × 240) |
| Image Setting | Brightness / Contrast / Saturation / Hue / Sharpness |
| Shutter Time | Auto/Manual, 1/3 ~ 1/100000s |
| Day/Night | IR Cut filter |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | 2D/3D DNR |
| BLC | Supported |
| HLC | Supported |
| ROI | Supported |
| Rotate | Supported |
| Video Compression | H.264 / H.264+ / H.265 / H.265+ / MJPEG |
| H.264 Codec Profile | Base / Main / High profile |
| H.265 Codec Profile | Main Profile |
| Video Bit Rate | 11 Kbps ~ 10 Mbps |
| Triple Streams | Supported |
| Audio Compression | G.711A, G.711U |
| Audio Bit Rate | 64 Kbps |
| Basic Events | Motion detection, Video Tampering |
| Smart Events | Line crossing detection, area intrusion, Monitoring entry and exit for specific regions (support alarm triggering by specified target types (human and vehicle), Scene Alteration Detection and Video Blur Detection |
| Face Detection | Supported |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
| System Compatibility | Onvif (Profile S, Profile G, T), SDK |
| Security | User authentication, IP address filtering, Video mask |
| Users | Maximum 40 users |
| Web Browsers | Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+ |
| Surveillance Mobile | iOS, Android |
| Communication Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Storage | Up to 256GB |
| Microphone | Supported |
| Speaker | Supported |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Reset Button | Supported |
| Active Deterrence Features | Red/Blue Light Warning & Sound Warning |
| Operating Conditions | -40°C ~ 60°C (-40°F ~ 140°F) Humidity 95% or less (non-condensing) |
| Power Supply | DC12V ± 25% |
| PoE | PoE (802.3 af) |
| Power Consumption | Less than 8W |
| Protection Level | IP67 |
| Material | Metal |
| Dimensions | ? 144.5 × 113.5 mm (? 5.68’’ × 4.47’’) |
| Gross Weight | 2.30lb / 1045g |
