Brand: Inaxsys Security Systems | SKU: 10508259

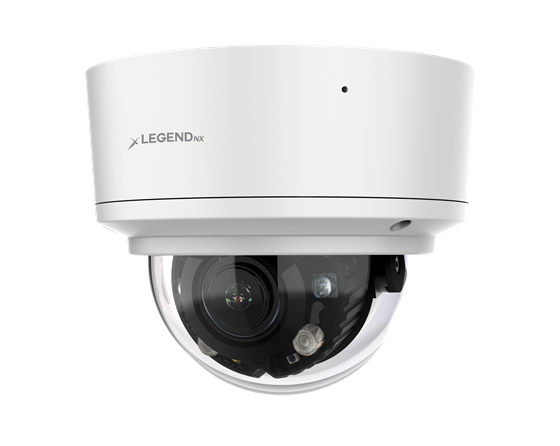

Inaxsys Security Systems | 5.1MP IQ Pro Series Motorized Dome Network Camera (NDAA)

$406.70

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description
Inaxsys Security Systems LGNXDO5IQWA | 5.1 MP IQ MOTORIZED LENS DOME NETWORK CAMERA

Inaxsys Security Systems - LGNXDO5IQWA - Features

  • This 5MP high-resolution surveillance camera features extreme AI analytics and a motorized varifocal lens for quick remote zoom and focus adjustments. It includes 120 dB true WDR, deep learning for enhanced human and vehicle recognition, IP67 water and dust resistance, IK10 vandal protection, built-in microphone with audio and alarm interface, and advanced H.265+ compression.
  • 5MP High-Resolution Imaging
  • High IQ: Extreme AI Analytics
  • Smart Target Recognition for humans & vehicles powered by deep learning
  • 120 dB true WDR Technology
  • IP67: Water and dust resistant
  • IK10: Vandal-Proof
  • Embedded Microphone, audio and alarm interface
  • Advanced H.265+ Compression

Specifications

Inaxsys Security Systems - LGNXDO5IQWA - Product Categories

  • Security
  • Video Surveillance
  • Surveillance Cameras

Inaxsys Security Systems - LGNXDO5IQWA - Specifications

Brand NameInaxsys Security Systems
Manufacturer Part NumberLGNXDO5IQWA
Item Description5.1 MP IQ MOTORIZED LENS DOME NETWORK CAMERA
Form FactorDome
UNSPSC Code46171610
UPC685225308966
Image Sensor1/2.7” Progressive Scan CMOS Sensor
Minimum IlluminationColor: 0.006 Lux (F1.6, AGC ON), 0 Lux with light
Illumination Distance50m / 164.04ft (IR light)
Strobe LightSupported
Smart IRSupported
Pan/Tilt/Rotation RangePan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°
Focal Length2.7 ~ 13.5 mm
ApertureF1.6
Field of View2.7 ~ 13.5 mm: Horizontal FOV: 112° ~ 35.5°, Vertical FOV: 59° ~ 20°, Diagonal FOV: 134° ~ 41°
Lens Mount? 14
DORI2.7 ~ 13.5 mm: Detection: 72-206m, Observe: 27.9-81.5m, Recognize: 14-40.8m, Identify: 7-20.4m
Maximum Resolution5MP (2880 × 1620)
Frame Rate (Main Stream)50Hz: 25fps 5MP (2880 × 1620), 25fps 4MP (2688 × 1520), 25fps 4MP (2560 × 1440), 25fps 1080P (1920 × 1080); 60Hz: 30fps 5MP (2880 × 1620), 30fps 4MP (2688 × 1520), 30fps 4MP (2560 × 1440), 30fps 1080P (1920 × 1080)
Frame Rate (Sub Stream)50Hz: 25fps 720P (1280 × 720), 25fps D1 (704 × 576), 25fps CIF (352 × 288); 60Hz: 30fps 720P (1280 × 720), 30fps D1 (704 × 480), 30fps CIF (352 × 240)
Frame Rate (Third Stream)50Hz: 25fps CIF (352 × 288); 60Hz: 30fps CIF (352 × 240)
Image SettingBrightness / Contrast / Saturation / Hue / Sharpness
Shutter TimeAuto/Manual, 1/3 ~ 1/100000s
Day/NightIR Cut Filter
Wide Dynamic Range120 dB
Digital Noise Reduction2D/3D DNR
BLCSupported
HLCSupported
Digital Noise Reduction2D/3D DNR
ROISupported
RotateSupported
Video CompressionH.264 / H.264+ / H.265 / H.265+ / MJPEG
H.264 Codec ProfileBase / Main / High profile
H.265 Codec ProfileMain Profile
Video Bit Rate11 Kbps ~ 16 Mbps
Triple StreamsSupported
Audio CompressionG.711A, G.711U
Audio Bit Rate64 Kbps
Basic EventsMotion detection (supports alarm triggering based on specified target types, such as humans and vehicles), Video Tampering
Smart EventsSmart Motion Detection, Line Crossing, Intrusion Detection, Monitoring entry and exit for specific regions (with alarm triggers for human and vehicle detection) and Scene Alteration Detection
Face DetectionSupported
Network StorageNAS (NFS, SMB/CIFS), ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P
System CompatibilityOnvif (Profile S, Profile G, T), SDK
SecurityPassword protection, complex passwords, HTTPS encryption, IP address filtering, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
UsersMaximum 40 users
Web BrowsersPlug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+
Mobile SurveillanceiOS, Android
Communication Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
StorageUp to 256GB
MicrophoneSupported
Speaker-
Audio I/O1/1
Alarm I/O1/1
Reset ButtonSupported
Operating Conditions-40°C ~ 60°C (-40°F ~ 140°F); Humidity 95% or less (non-condensing)
Power SupplyDC12V ± 25%
PoEPoE (802.3 af)
Power ConsumptionLess than 9.5W
Protection LevelIP67
IK RatingIK10
MaterialMetal
Dimensions? 142.2 × 116.5 mm (? 5.59’’ × 4.46’’)
Gross Weight2.25lb / 1020g
