Inaxsys Security Systems | 6.1MP Fisheye Network Camera
Regular price
$457.83
Unit price
Brand: Inaxsys Security Systems
|
SKU:
10508260
Regular price
$457.83
Unit price
Description
Description

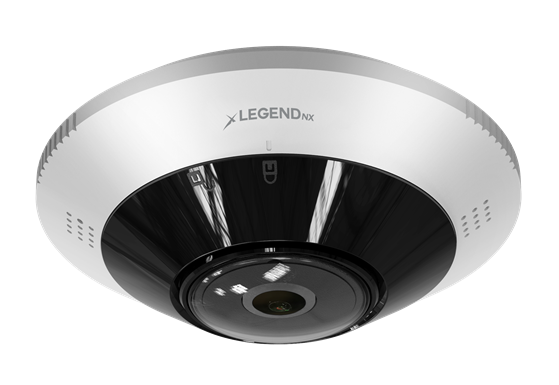

Inaxsys Security Systems LGNXDO6IRHEM | 6.1MP FISHEYE NETWORK CAMERA
Inaxsys Security Systems - LGNXDO6IRHEM - Features
- This 6MP camera delivers high-resolution imaging with advanced H.265+ compression, ensuring efficient storage without sacrificing quality. Designed to withstand harsh conditions with its IP67 water and dust resistance, it features multiple dewarp modes and includes a built-in microphone and speaker for live audio communication.
- 6MP High-Resolution Imaging
- IP67: Water and dust resistant
- Multiple dewarping modes
- Built-in microphone and speaker for live audio
- Advanced H.265+ Compression
Specifications
Specifications
Inaxsys Security Systems - LGNXDO6IRHEM - Product Categories
- Security
- Video Surveillance
- Surveillance Cameras
Inaxsys Security Systems - LGNXDO6IRHEM - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | LGNXDO6IRHEM |
| Item Description | 6.1MP FISHEYE NETWORK CAMERA |
| UNSPSC Code | 46171610 |
| UPC | 685225308850 |
| Image Sensor | 1/2.5” Progressive Scan CMOS Sensor |
| Minimum Illumination | Color: 0.008 Lux, 0 Lux with light |
| Illumination Distance | 20m / 65.62ft (IR light) |
| Lumière Stroboscopique | Supported |
| Smart IR | Supported |
| Pan / Tilt / Rotation Range | - |
| Focal Length | 1.68mm |
| Aperture | F2.0 |
| Field of View | 1.68mm: Horizontal FOV: 180°, Vertical FOV: 180° |
| Lens Mount | M12 |
| DORI | Detection: 33m, Observe: 13m, Recognize: 6.5m, Identify: 3.3m |
| Maximum Resolution | 2560 x 2560 |
| Frame Rate (Main Stream) | - |
| Fisheye | 50HZ: 25fps (2560 x 2560, 1920 x 1920); 60HZ: 30fps (2560 x 2560, 1920 x 1920) |
| Panoramic | 0HZ: 15fps (1920 x 1080, 1280 x 720); 60HZ: 15fps (1920 x 1080, 1280 x 720) |
| 4 PTZ | 50HZ: 15fps (1024 x 768); 60HZ: 15fps (1024 x 768) |
| Fisheye + Panoramic + 3 PTZ | 50HZ: 25fps (1920 x 1920) +15fps (1920 x 1080) + 15fps (1024 x 768) *3; 60HZ: 30fps (1920 x 1920) +15fps (1920 x 1080) + 15fps (1024 x 768) *3 |
| Fisheye + 4 PTZ | 50HZ: 25fps (1920 x 1920) + 15fps (1024 x 768) *4; 60HZ: 30fps (1920 x 1920) + 15fps (1024 x 768) *4 |
| Panoramic + 4 PTZ | 50HZ: 15fps (1920 x 1080, 1280 x 720) + 15fps (1024 x 768) *4; 60HZ: 15fps (1920 x 1080, 1280 x 720) + 15fps (1024 x 768) *4 |
| Frame Rate (Sub Stream) | - |
| Fisheye | 50HZ: 25fps (960 x 960, 480 x 480); 60HZ: 30fps (960 x 960, 480 x 480) |
| Panoramique | 50HZ: 15fps (704 x 576, 352 x 288); 60HZ: 15fps (704 x 480, 352 x 240) |
| 4 PTZ | 50HZ: 15pfs (640 x 480); 60HZ: 15pfs (640 x 480) |
| Fisheye + Panoramic + 3 PTZ | 50HZ: 25fps (960 x 960, 480 x 480) +15fps (704 x 576) + 15fps (640 x 480) *3; 60HZ: 30fps (960 x 960, 480 x 480) +15fps (704 x 480) + 15fps (640 x 480) *3 |
| Fisheye + 4 PTZ | 50HZ: 15fps (960 x 960, 480 x 480) + 15fps (640 x 480) *4; 60HZ: 15fps (960 x 960, 480 x 480) + 15fps (640 x 480) *4 |
| Panoramic + 4 PTZ | 50HZ: 15fps (704 x 576 , 352 x 288) + 15fps (640 x 480) *4; 60HZ: 15fps (704 x 480 , 352 x 240) + 15fps (640 x 480) *4 |
| Image Setting | Brightness / Contrast / Saturation / Hue / Sharpness |
| Shutter Time | Auto/Manual, 1/3 ~ 1/100000s |
| Wide Dynamic Range | Digital Wide Dynamic Range |
| Day/Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| BLC | Supported |
| HLC | Supported |
| ROI | Supported |
| Video Compression | H.264 / H.264+ / H.265 / H.265+ / MJPEG |
| H.264 Codec Profile | Base / Main / High Profile |
| H.265 Codec Profile | Main Profile |
| Video Bit Rate | 11 Kbps ~ 10 Mbps |
| Triple Streams | - |
| Audio Compression | G.711A, G.711U |
| Audio Bit Rate | 64 Kbps |
| Basic Event | Motion Detection, Video Tampering |
| Smart Event | Line Crossing Detection, Area Intrusion, Region Entrance & Exiting |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
| System Compatibility | Onvif (Profil S, Profil G, T), SDK |
| Security | Password Protection, Complex Passwords, HTTPS Encryption, IP Address Filtering, Basic and Digest Authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and Digest Authentication for Open Network Video Interface |
| User Maximum | 40 Users |
| Web Browsers | Plug-in Required Live View: IE 10, IE 11; Local Service: Chrome 57.0+, Firefox 52.0+ |
| Mobile Surveillance | iOS, Android |
| Communication Interface | 1 RJ45 10 M/100 M Self-Adaptive Ethernet Port |
| Storage | Up to 256GB |
| Microphone | Supported |
| Speaker | Supported |
| Reset Button | Supported |
| Operating Conditions | -40°C ~ 60°C (-40°F ~ 140°F), Humidity 95% or less (non-condensing) |
| Power Supply | DC12V ± 25% |
| PoE | PoE (802.3af) |
| Power Consumption | Less than 9W |
| Protection Level | IP66 |
| Material | Metal |
| Dimensions | ? 152 × 53 mm (? 5.98’’ × 2.08’’) |
| Gross Weight | 1.59lb / 724g |
