Brand: Inaxsys Security Systems | SKU: 10013525

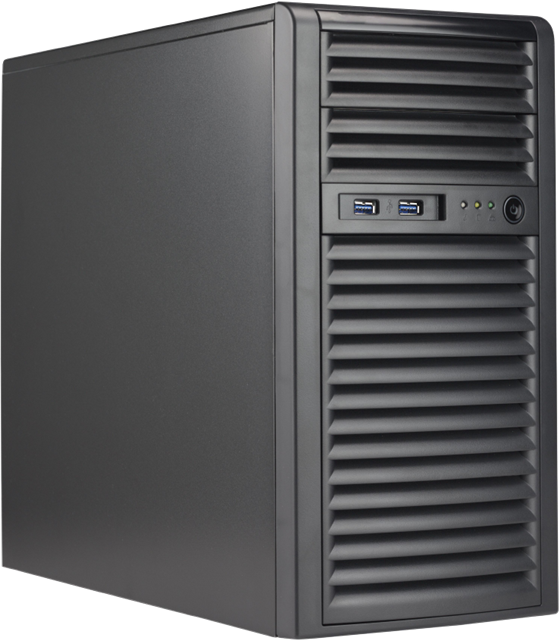

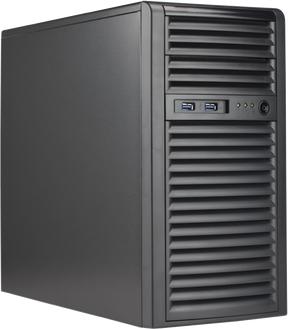

Inaxsys Security Systems DT-IPS-H-1T | High Performance Desktop IP Server, 1000 GB Hard drive

$6,157.84

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Inaxsys Security Systems DT-IPS-H-1T | High Performance Desktop IP Server, 1000 GB Hard drive

Parts / Vendor ONLY sold in Canada and to Canadian Certified Customers.

Inaxsys Security Systems - DT-IPS-H-1T - Features

The Desktop Case IP Server is a high-performance solution designed for robust video management and storage. Powered by the latest generation Intel® Core i7 Processor, this server offers exceptional processing capabilities. It features a 1TB M.2 NVMe boot drive and an additional 1TB NVMe SSD for swift data access and storage.
Equipped with 16GB of DDR-5/4800 memory (2 x 8GB), the server ensures smooth multitasking and efficient operation. With a storage capacity of up to 64TB, it is well-suited for extensive data retention needs. The server supports a range of video management software, including Arkiv, STORM, LEGEND, and third-party applications like ExacqVision™, Genetec™, Milestone™, and Avigilon™.
Ideal for comprehensive IP surveillance solutions, this server combines power, flexibility, and extensive compatibility to meet diverse security and monitoring requirements.

Specifications

Inaxsys Security Systems - DT-IPS-H-1T - Product Categories

Security
Video Surveillance
Video Servers and Storage

Inaxsys Security Systems - DT-IPS-H-1T - Specifications

Brand Name	Inaxsys Security Systems
Manufacturer Part Number	DT-IPS-H-1T
Item Description	High Performance Desktop IP Server, 1000 GB Hard drive
Hard Drive Type	Sata
Type	Server
Mount Type	Desktop
Operating System	Windows
UNSPSC Code	46171600
UPC	685225608417
Maximum IP Cameras	Data rate dependent; VMS Application dependent
Server OS	Arkiv, IVTVision, STORM or a 3rd party software
Video Management Software	Arkiv, STORM, LEGEND or 3rd party software such as ExacqVision™, Genetec™, Milestone™, Avigilon™, and more
Server OS	Windows 11 Pro 64 bit (standard)
Maximum storage	64 TB
Drive Bays	4 x 3.5” SAS/SATA Backplane for Hot-Swappable Drives
DVD / CD-ROM	Optional
Keyboard & Mouse	Included
Network Controllers	Dual LAN with Intel® Ethernet i225LM
Compatible OS	Windows 7, Windows Vista, Windows 8.1, Windows 10, Windows Server 2012/2016 or Mac OS X
LAN	PCIE Network Card (Startech ST1000SPEX2L GbE, TP-Link TG-3468, or equivalent)
SATA	Intel Q670E controller for 8 SATA3 (6 Gbps) ports;
PCI-E Add on Card	Up to 2 NVMe SSDs
Graphics Adapter	NVIDIA A2000
CPU	Latest Generation Intel®Core i7, 30M Cache, up to 5.20 GHz
Core	Up to 24 cores
Core	Up to 24 cores
Solid-State Drive	2 x 1TB NVMe M.2
Compatible OS	Windows 11 Pro, Server 2022 32-bit or 64-bit
*Maximum Video Storage Rate	600 to 800 Mbps (Windows)
RAM	2 x Memory 8GB DDR-5/4800 (or faster)
Memory Type	4400/4000/3600 MT/s
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.1V
USB Ports	6 x USB 2.0 & 6 x USB 3.1
Display Outputs	1 VGA port, 1 HDMI port, 1 DP (DisplayPort) port, 1 DVI - D port
SATA	8 SATA3 (6Gbps) port(s)
Input Voltage	668W with Input 100 - 240Vac
Power supply	PS2 668W Multi-output power supply 80PLUS Platinum
Heatsink/Fan	Speed Control: 4-pin PWM; Rated Voltage: 12.0 VDC; Rated Speed: 3,800 RPM
Dimensions	426 mm x 178 mm x 531 mm (H x W x D)
Weight	40 lbs
Regulatory	BSMI; CCC; CE/EMC; FCC class B; TUV/CB; UL/CUL

Documents and Downloads

Inaxsys Security Systems DT-IPS-H-1T Specifications Sheet
