Description
Description

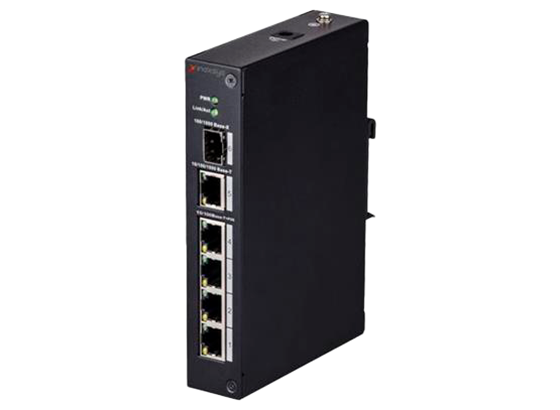

Inaxsys Security Systems IN-41POE | 4-port 10M/100M Desktop PoE Fast Ethernet Switch With 4 PoE Ports + 1 Combo Gigabit Copper/ 1 SFP
Inaxsys Security Systems - IN-41POE - Features
- 4 - Port PoE Switch with Gigabit Uplink
- Layer 2 industrial PoE switch
- Supports IEEE802.3af, IEEE802.3at standards
- Conforms to IEEE802.3, IEEE802.3u, IEEE 802.3ab/z and IEEE802.3X standards
- Industrial design supporting a wide temperature range
Specifications
Specifications
Inaxsys Security Systems - IN-41POE - Product Categories
- Networking
- Networking
- Power Over Ethernet
Inaxsys Security Systems - IN-41POE - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | IN-41POE |
| Item Description | 4-port 10M/100M Desktop PoE Fast Ethernet Switch With 4 PoE Ports + 1 Combo Gigabit Copper/ 1 SFP |
| UNSPSC Code | 43222600 |
| UPC | 685225400196 |
| Power Supply | 53 VDC |
| Data Transmission Port | Port 1–4: 4 × RJ-45 10/100 Mbps (PoE); Port 5: 1 × RJ-45 10/100/1000 Mbps (Uplink); Port 6: 1 × SFP 100/1000 Mbps (Uplink) |
| Operaing Temperature | –30 °C to +65 °C (-22 °F to +149 °F) |
| Operating Humidity | 5% - 95% (RH) |
| Optical Port | 1 |
| Ethernet Port | 4 |
| Ethernet Port Speed | 100 Mbps |
| PoE Standard | IEEE802.3af/ IEEE802.3at/ Hi-PoE |
| PoE Power | 60 W |
| Power Consumption Management | Supported |
| PoE Pin Assignment | PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance PoE | 250 m (820.21 ft) long distance PoE transmission |
| Capacity | 6.80 Gbps |
| MAC Table Size | 8K |
| Packet Forwarding Rate | 3.57 Mpps |
| Packet Buffer Memory | 1 Mbit |
| Lightning Protection | Air discharge: 15 kV; Contact discharge: 8 kV |
| ESD Protection | Common mode: 4kV; Differential mode: 2kV |
| Product Dimensions | 150 mm × 100 mm × 30 mm (5,91" × 3,94" × 1,18") |
| Poids net | 0.99 lbs (0.45 kg) |
