Brand: Inaxsys Security Systems | SKU: 10122349

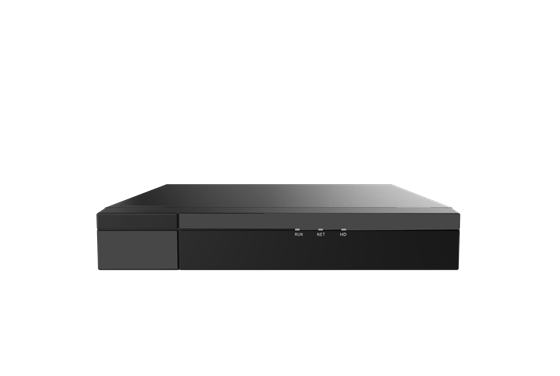

Inaxsys Security Systems INLG8814KN | NDAA Compliant. 8 Channel 4K NVR/8 PoE

$417.88

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Inaxsys Security Systems INLG8814KN | NDAA Compliant. 8 Channel 4K NVR/8 PoE

NDAA Compliant, Supports 265/H +,265/H.264 video formats, 8-channel input with POE, Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T, Support 1-ch HDMI, 1-ch VGA,HDMI at up 4K(3840x2160) resolution, HDMI and VGA simultaneous output, Up to 4K resolution recording, 1 SATA HDD up to 10TB, Incoming Bandwidth 80Mbps

Inaxsys Security Systems - INLG8814KN - Features

Introducing our 8-Channel 4K NVR, a compact and efficient network video recorder designed for high-quality surveillance. Supporting H.265+, H.265, and H.264 compression, this NVR ensures optimal video storage and transmission efficiency.
With 8-channel input, it can record up to 8 Megapixels resolution, delivering ultra-clear video quality. The NVR features both HDMI and VGA outputs for simultaneous video display.
Equipped with one SATA HDD slot, it supports up to 8TB of storage, providing ample capacity for extended video retention. The device also supports cloud upgrades, ensuring easy firmware updates and enhanced functionality.
Perfect for small to medium-sized security systems, this 8-Channel 4K NVR offers a reliable and high-resolution recording solution with straightforward installation and advanced features.
Ordering Information
Storage Capacity
INLG8814KN2T
2 TB
INLG8814KN4T
4 TB
INLG8814KN6T
6 TB
INLG8814KN8T
8 TB
INLG8814KN10T
10 TB

Specifications

Inaxsys Security Systems - INLG8814KN - Product Categories

Security
Video Surveillance
Video Recorders

Inaxsys Security Systems - INLG8814KN - Specifications

Brand Name	Inaxsys Security Systems
Manufacturer Part Number	INLG8814KN
Item Description	NDAA Compliant. 8 Channel 4K NVR/8 PoE
Capacity	8 Channel
Type	Nvr
UNSPSC Code	46171621
Raid	-
IP Video Input	8-Channel
Decoding Format	H.265+ / H.265 / H.264
Capability	2 x 4K at 30fps; 3 x 5MP at 30; 4 x 4MP at 30; 5 x 3MP at 30fps; 8 x 1080p at 30fps
Audio Compression	G.711A, G.711U
Incoming Bandwidth	80Mbps
Outgoing Bandwidth	64Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP
Browser	Windows: IE (IE10/11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)
HDMI/VGA Output	HDMI: 3840 x 2160 at 30Hz;1920 x 1080p at 60Hz; 1920 x 1080p at 50Hz; 1600 x 1200 at 60Hz; 1280 x 1024 at 60Hz; 1280 x 720 at 60Hz; 1024 x 768 at 60Hz // VGA: 1920 x 1080p at 60Hz; 1920 x 1080p at 50Hz, 1600 x 1200 at 60Hz, 1280 x 1024 at 60Hz, 1280 x 720 at 60Hz; 1024 x 768 at 60Hz
Audio Output	1-Channel, RCA
Liveview Display	1 / 4 / 6 / 8 / 9
Corridor Mode Screen	3 / 4 / 5 / 7 / 9
IP Video Input	8-Channel
RCA Audio Input	1-Channel
Two-way Audio Input	1-Channel, RCA
FTP/Schedule/Event Snapshot	4-Channel snapshot, up to D1 resolution
Recording Resolution	4k / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Synchronous Playback	8-Channel
VCA Detection by IPC	Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
VCA Detection by IPC	Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
Smart Search	8-Channel: Face Detection, SIP, UMD
General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	P Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
SATA	1 SATA Interface
Capacity	Up to 10TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)
Ethernet	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB	Rear panel: 1 x USB3.0, 1 x USB2.0
Power Supply	DC 52V/1.8A
Power Consumption	Less than 9.0W
PoE Interface	8 RJ45 10M/100M self-adaptive Ethernet Interface
Maximum Capacity	Max 30W for single port, Max 75W in total
Supported Standard	IEEE 802.3at, IEEE 802.3af
Certifications	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B
Working Envrionment	-10°C to +55°C; Less than 90% RH (non-condensing)
Dimensions	260mm × 240mm × 47mm (10.2”×9.4”×1.9 “)
Weight (without HDD)	2.43lb / 1.1kg

Documents and Downloads

Inaxsys Security Systems INLG8814KN Specifications Sheet
