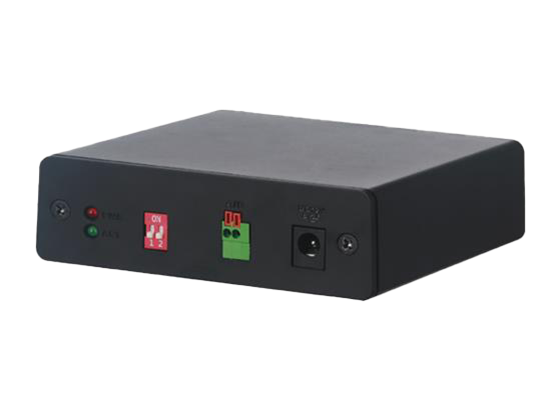

Inaxsys Security Systems INS166IO | 16 INPUT/6 OUTPUT ALARM BOX
Regular price
$66.35
Unit price
Brand: Inaxsys Security Systems
|
SKU:
10013410
Regular price
$66.35
Unit price
Description
Description
Inaxsys Security Systems INS166IO | 16 INPUT/6 OUTPUT ALARM BOX
Parts / Vendor ONLY sold in Canada and to Canadian Certified Customers.
Inaxsys Security Systems - INS166IO - Features
- Support through RS485 access to the back-end storage
- Support 16ch Alarm In/6ch Alarm Out interface
- Support 2-bit DIP switch (0/1) to determine the different alarm box access;
- Max support 4 alarm boxes having access to the back-end storage device
- Linked alarms can be configured on the alarm input and output interface when communication is established between the DVR device and the alarm box.
Specifications
Specifications
Inaxsys Security Systems - INS166IO - Product Categories
- Security
- Video Surveillance
- Video Servers and Storage
Inaxsys Security Systems - INS166IO - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | INS166IO |
| Item Description | 16 INPUT/6 OUTPUT ALARM BOX |
| Type | Storage |
| UNSPSC Code | 46171600 |
| UPC | 685225603429 |
| Communication | 1 - RS485 port |
| DIP Switch | 2-bit |
| Alarm in | 16 channels |
| Alarm out | 6 channels |
| Power Supply | 12V / 1A |
| Power Consumption | 0.2W |
| Working Temperature | -10°C ~ +55°C (+14°F ~ +131°F) / 10%~ 90% RH |
| Weight | ?0.2kg(0.44lb) |
| Dimension(W×D×H) | 97.68mm×90.3mm×33mm (3.85” x 3.56” x 1.3”) |
