Brand: Inaxsys Security Systems | SKU: 9998426

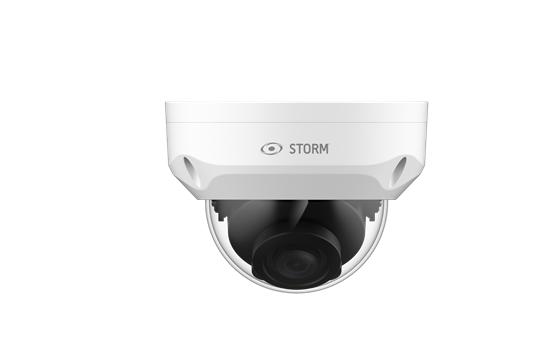

Inaxsys Security Systems INSAIDO4NCF | 4.1 MP WDR Dome ChromaView AI+ Network Camera

$348.18

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description
Inaxsys Security Systems INSAIDO4NCF | 4.1 MP WDR Dome ChromaView AI+ Network Camera

Inaxsys Security Systems - INSAIDO4NCF - Features

  • The 4.1MP WDR Dome ChromaView AI+ Network Camera is a cutting-edge surveillance solution designed for superior image quality and intelligent monitoring. Featuring a 1/1.8” 4 Megapixel progressive scan CMOS sensor, it captures clear and detailed video at resolutions up to 2688 × 1520 at 25/30 fps and 1080P at 50/60 fps. The camera uses the H.265 codec for efficient compression, offering a high compression rate and ultra-low bit rate to optimize storage and bandwidth.
  • This dome camera is equipped with Wide Dynamic Range (WDR) technology at 140 dB, ensuring excellent performance in challenging lighting conditions. Additional features like Day/Night (Electronic) mode, 3D Digital Noise Reduction (DNR), Auto White Balance (AWB), and Automatic Gain Control (AGC) enhance its adaptability to various environments. The AI+ capabilities, including Human Detection and Area Protector, provide advanced edge analytics for enhanced security and operational efficiency.
  • With ChromaView technology, the camera delivers vibrant and accurate color representation, making it ideal for detailed and reliable surveillance. This versatile camera is an excellent choice for any security setup, combining high performance with intelligent features.

Specifications

Inaxsys Security Systems - INSAIDO4NCF - Product Categories

  • Security
  • Video Surveillance
  • Surveillance Cameras

Inaxsys Security Systems - INSAIDO4NCF - Specifications

Brand NameInaxsys Security Systems
Manufacturer Part NumberINSAIDO4NCF
Item Description4.1 MP WDR Dome ChromaView AI+ Network Camera
Compression TypeMultiple Compression Types
Dome ColorClear
EnvironmentIndoor / Outdoor
Form FactorDome
Lens TypeFixed 3.7 Millimeter
PoeYes
Position TypeFixed
Resolution4 Megapixels
Signal ProcessIp
UNSPSC Code46171610
UPC685225603580
Image Sensor1/1.8” 4Megapixel progressive CMOS
Effective Pixels2688 (H) ×1520 (V)
RAM/ROM512MB/128MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Minimum Illumination0.0005 Lux at F1.0
S/N RatioMore than 56 dB
Illumination Distance30 m (98.4 ft)
Illumination LEDs2 warm lights
Day/NightColor / B/W
Backlight CompensationBLC / HLC / WDR 140dB
White BalanceAuto / natural / street lamp / outdoor / manual / regional custom
Gain ControlAuto; Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of InterestYes (4 areas)
Image Rotation0°/90°/180°/270°
Defog / MirrorYes
Privacy Masking8 Areas
Lens TypeFixed-focal
Mount TypeM16
Focal Length2.8 mm
Max. ApertureF1.0
Viewing AngleHorizontal: 107°; Vertical: 60°; Diagonal: 135°
Pan/Tilt/RotationPan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355°
DORI DistanceDetect: 58.2 m (190.9 ft); Observe: 23.3 m (76.4 ft); Recognize: 11.6 m (38.1 ft); Identify: 5.8 m (19.0 ft)
CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart CodecSmart H.265+; Smart H.264+
Resolution4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Frame RateMain Stream: 2688 × 1520 at 1 to 50/60 fps; Sub stream: D1 at 1 to 25/30 fps; Third stream: 1920 × 1080 at 1 to 25/30 fps
Bit RateH.264: 3 Kbps–20480 Kbps; H.265: 3 Kbps–20480 Kbps
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; people counting in area; stay alarm; people No. exception detection; queue management
Alarm In/Out1/1
Audio CompressionPCM; G.711A; G.711Mu; G.726; G.723
Audio In/Out1/1, RCA port
Built-in MicrophoneYes
EthernetRJ-45 (10/100 Base-T)
SDK & APIYes
Cyber SecurityVideo encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade
StorageFTP; SFTP; Micro SD card (Support max. 256 G); NAS
Management SoftwareSTORM, STORM+, ARKIV
ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
CompatibilityONVIF (Profile T/S/G), CGI
BrowserIE; Chrome; Firefox
Maximum User Access20
Smart PhoneiOS, Android
CertificationsCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive; 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL60950-1 CAN/ CSA C22.2 No.60950-1-07
Power Supply12 VDC/PoE (802.3af)/ePoE
Power ConsumptionBasic: 2.6 W (12 VDC); 3.2 W (PoE), Max. (H.265 + 3 streams + intelligence + LED): 7 W (12 VDC); 7.8 W (PoE)
Working Environment-40°C to +60°C (-40°F to +140°F); Less than 95% RH
MaterialMetal
ProtectionIP67, IK10
Dimensions94 mm × ?122 mm (3.7” × ?4.8”)
Weight2.2 lbs (986 g)
