Brand: Inaxsys Security Systems
|
SKU:
753694
Inaxsys Security Systems INSBO4KIRF | 4K ULTRA-HD H265 Network Bullet Camera With Fixed Lens
Regular price
$208.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Inaxsys Security Systems INSBO4KIRF | 4K ULTRA-HD H265 Network Bull...
Regular price
$208.34
Unit price
Brand: Inaxsys Security Systems
|
SKU:
753694
Regular price
$208.34
Unit price
Shipping calculated at checkout.
Description
Description

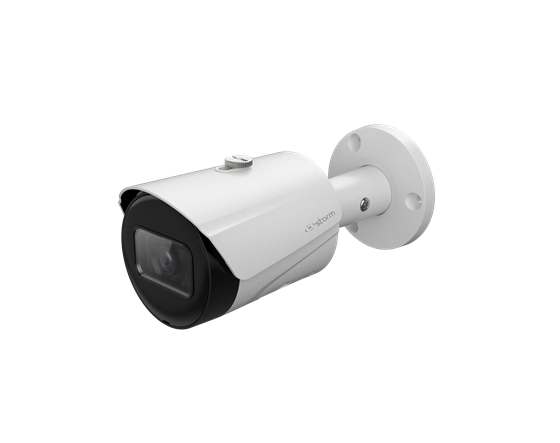

Inaxsys Security Systems INSBO4KIRF | 4K ULTRA-HD H265 Network Bullet Camera With Fixed Lens
Inaxsys Security Systems - INSBO4KIRF - Features
- The 8MP IR Fixed-focal Bullet Network Camera offers high-definition image quality with its advanced 8MP CMOS sensor, ensuring clear visuals for detailed monitoring. Enhanced by WDR (120dB) and Day/Night (ICR) capabilities, it adapts well to varied lighting conditions, while 3DNR, AWB, AGC, and BLC functions optimize clarity and image balance.
- With H.265 encoding, this camera efficiently compresses video files, reducing storage and bandwidth requirements without sacrificing quality. Its built-in IR LED provides up to 30m of night vision, and intelligent features like intrusion and tripwire detection support proactive security measures. Additional motion and audio detection features further enhance monitoring accuracy, making this camera ideal for comprehensive surveillance applications.
Specifications
Specifications
Inaxsys Security Systems - INSBO4KIRF - Product Categories
- Security
- Video Surveillance
- Surveillance Cameras
Inaxsys Security Systems - INSBO4KIRF - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | INSBO4KIRF |
| Item Description | 4K ULTRA-HD H265 Network Bullet Camera With Fixed Lens |
| Compression Type | Multiple Compression Types |
| Environment | Outdoor |
| Form Factor | Bullet |
| Lens Type | Fixed 2.8 Millimeter |
| Poe | Yes |
| Position Type | Fixed |
| Resolution | 8 Megapixels |
| Signal Process | Ip |
| UNSPSC Code | 46171610 |
| UPC | 685225606055 |
| Image Sensor | 1/2.7” 8 Megapixel progressive CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| RAM/ROM | 256MB/128MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Minimum Illumination | 0.009 Lux at F2.0 (Color, 30 IRE); 0.0009 Lux at F2.0 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | More than 56 dB |
| IR Distance | 30 m (98.43 ft) |
| IR LEDs | 1 |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / WDR 120dB |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest | Yes (4 areas) |
| Smart Illumination | Supported |
| Mirror | Yes |
| Privacy Masking | 4 Areas |
| Lens Type | Fixed Lens |
| Mount Type | Board-in |
| Focal Length | 2.8mm |
| Max. Aperture | F2.0 |
| Close Focus Distance | 1.3 m (4.27 ft) |
| Viewing Angle | Horizontal: 106.0° Vertical: 56.0° Diagonal: 125.0° |
| Pan/Tilt/Rotation | Pan: 0°–360°; Tilt: 0°–90°; D: 0°–360° |
| DORI Distance | Detect: 88.0 m (288.71 ft); Observe: 35.2 m (115.49 ft); Recognize: 17.6 m (57.74 ft); Identify: 8.8 m (28.87 ft) |
| VideoVidéo Compression | H.265+; H.264+; H.265; H.264; MJPEG |
| Resolution | 4K (3840×2160) / 6M (3072×2048) / 5M (2560×1920) / 3M (2048x1536) / 3M (2304×1296) / 1080P (1920×1080) / 1.3M (1280x960) / 720P (1280×720) / D1 (704×576/704×480) / VGA (640×480) / CIF (352×288/352×240) |
| Frame Rate | Main Stream: 3840 × 2160 (1 fps to 25/30 fps); 2688 × 1520 (1 fps to 25/30 fps) Sub stream: 704 × 576 at (1 fps to 25 fps); 704 × 480 at (1 fps to 30 fps) |
| Bit Rate | H.264: 32Kbps - 8192Kbps H.265: 16Kbps - 8192Kbps |
| Event Trigger | Work together with STORM Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Smart Functions | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| Ethernet | RJ-45 (10/100 Base-T) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| SDK and API | Yes |
| Management Software | STORM, STORM+, ARKIV |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Compatibility | ONVIF (profile T/S/G); CGI; P2P; Milestone |
| Maximum User Access | 20 |
| Smart Phone | iOS, Android |
| Sertifications | CE-LVD: EN62368-1; CE-EMC: Directive Compatibilité Électromagnétique 2014/30/EU; FCC: 47 CFR FCC Part 15, Sous-partie B; UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Power Supply | 12 VCC/PoE (802.3af) |
| Power Consumption | Basic: 2.7 W (12 VCC); 3.4 W (PoE); Max. (H.265 + max. resolution + max. stream + WDR + IR intensity + AI): 4.5 W (12 VCC); 5.4 W (PoE) |
| Working Environment | -40°C to +60°C (-40°F to +140°F); Less than 95% RH |
| Protection | IP67 |
| Dimensions | 166.2 mm × 70 mm × 70 mm (6.54” × 2.76” × 2.76”) |
| Weight | 1.06 lbs (0.48 kg) |
