Description
Description

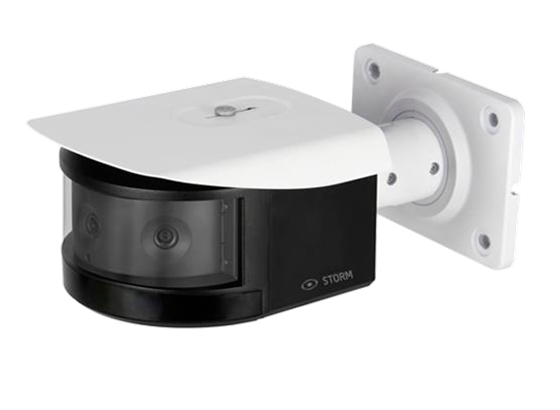

Inaxsys Security Systems INSBO6180IRF | 3x2MP (6MP) H265 Network Multi-lens IR Panoramic Bullet With IR With SD Slot
Inaxsys Security Systems - INSBO6180IRF - Features
- The 3x2MP (6MP) H.265 Network Multi-Lens IR Panoramic Bullet Camera provides an expansive surveillance solution with three integrated 2MP STARVIS™ CMOS lenses, offering a total of 6MP resolution for panoramic monitoring. Equipped with dual-stream encoding in both H.265 and H.264, it efficiently manages bandwidth while ensuring high-quality imaging.
- This camera is designed to capture clear detail in complex lighting environments, featuring 120dB Wide Dynamic Range (WDR) and IR illumination up to 30 meters for optimal visibility in low light. Advanced intelligent detection capabilities, such as intrusion, tripwire, and heatmap functions, enhance situational awareness, while support for up to 128 GB Micro SD card storage offers convenient on-board recording.
Specifications
Specifications
Inaxsys Security Systems - INSBO6180IRF - Product Categories
- Security
- Video Surveillance
- Surveillance Cameras
Inaxsys Security Systems - INSBO6180IRF - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | INSBO6180IRF |
| Item Description | 3x2MP (6MP) H265 Network Multi-lens IR Panoramic Bullet With IR With SD Slot |
| UNSPSC Code | 46171610 |
| UPC | 685225607267 |
| Image Sensor | Three 1/2.8” 2Megapixel progressive scan CMOS |
| Effective Pixels | 4096(H) x 832(V) |
| RAM/ROM | 1024MB / 128MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100,000s |
| Minimum Illumination | 0.007 Lux / F1.8 (Color, 1/3s, 30IRE); 0.05 Lux / F1.8 (Color, 1/30s, 30IRE); 0 Lux / F1.8 (IR on) |
| S/N Ratio | More than 50dB |
| IR Distance | Distance up to 30m (98ft) |
| IR LEDs | 8 |
| Day/Night | Auto(ICR) / Color / B/W |
| Blacklight Compensation | BLC / HLC / WDR(120dB) |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Privacy Masking | 4 Areas |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 3.6mm |
| Max. Aperture | F1.8 |
| Viewing Angle | H: 180?, V:44? |
| Optical Zoom | - |
| Focus Control | Fixed |
| Pan/Tilt/Rotation | Pan: 0?~360?; Tilt: 0?~90?; Rotation: 0?~360? |
| DORI Distance | Detect: 52m (171ft); Observe: 21m (69ft); Recognize: 10m (33ft); Identify: 5m (16ft) |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Resolution | 4096×832 / 3840×780 / 2560×520 / 1280x260 / 1024X208 |
| Frame Rate | Main Stream: 4096x832 (1 to 25/30fps) Sub Stream: 1024x208 (1 to 25/30fps) Third Stream: 1280x260 (1 to 25/30fps) |
| Bit Rate | H.265: 4Kbps ~ 10Mbps; H.264: 8Kbps ~ 16Mbps |
| Audio Compression | G.711a / G.711Mu / AAC / G.726 |
| Intelligent Functions | Tripwire, Intrusion, Object Abandoned/Missing |
| Smart Features | Heatmap, E-PTZ |
| Network | Ethernet RJ-45 (100/1000Base-T) |
| Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
| Compatibility | PSIA, CGI |
| Maximum User Access | 10 Users/20 Users |
| Management Software | STORM, STORM+, ARKIV |
| Edge Storage | NAS; Micro SD card up to 128GB |
| Smart Phone | iOS, Android |
| Video Interface | 1 Port (For adjustment only) |
| Audio Interface | 1/1 channel In/Out |
| RS485 | - |
| Alarm | 2 channel In: 5mA 5VDC 1 channel Out: 1A 30VCC / 0.5A 50VAC |
| Power Supply | AC24V, PoE+ (802.3at)(Class 4) |
| Power Consumption | Less than 23W |
| Working Environment | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Protection | IK10 |
| Dimensions | 298.3mm×172.5mm×120.5mm (11.74”×6.79”×4.74”) |
| Weight | 7.52 lbs (3.41 kg) |
