Brand: Inaxsys Security Systems
|
SKU:
902211

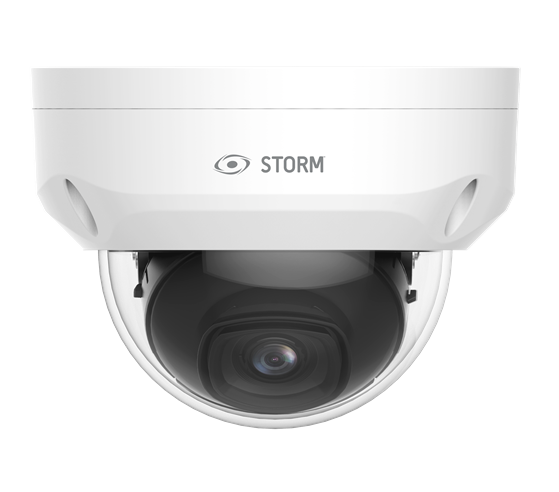

Inaxsys Security Systems INSDO4IRF | 4.1MP H265 IR Network Dome Camera With SD Slot
Regular price
$190.20
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Inaxsys Security Systems INSDO4IRF | 4.1MP H265 IR Network Dome Cam...
Regular price
$190.20
Unit price
Brand: Inaxsys Security Systems
|
SKU:
902211
Regular price
$190.20
Unit price
Description
Description
Inaxsys Security Systems INSDO4IRF | 4.1MP H265 IR Network Dome Camera With SD Slot
Inaxsys Security Systems - INSDO4IRF - Features
- The 4.1MP H.265+ Dome Camera with SD slot delivers high-performance surveillance with its 4MP, 1/3” CMOS image sensor, providing clear and detailed images even in low-light conditions. It outputs a maximum resolution of 2688 × 1520 at 30 fps, ensuring superior video quality.
- Utilizing the H.265 codec, this camera achieves a high compression rate and ultra-low bit rate, optimizing storage and bandwidth efficiency. Equipped with a built-in IR LED, it offers a maximum illumination distance of 50 meters, ensuring effective night vision. The camera also features intelligent detection capabilities, including intrusion and tripwire detection, with support for accurate classification and detection of vehicles and humans.
- Designed for robust security applications, this dome camera combines advanced imaging technology, efficient compression, and intelligent detection, making it an ideal choice for comprehensive surveillance needs.
Specifications
Specifications
Inaxsys Security Systems - INSDO4IRF - Product Categories
- Security
- Video Surveillance
- Surveillance Cameras
Inaxsys Security Systems - INSDO4IRF - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | INSDO4IRF |
| Item Description | 4.1MP H265 IR Network Dome Camera With SD Slot |
| Form Factor | Dome |
| UNSPSC Code | 46171610 |
| UPC | 685225605928 |
| Image Sensor | 1/3” 4Megapixel progressive CMOS |
| Effective Pixels | 2688 (H) ×1520 (V) |
| RAM/ROM | 512MB/128MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Minimum Illumination | 0.005 Lux at F1.6 (Color, 30IRE); 0.0005 Lux at F1.6 (B/W, 30IRE) 0 Lux (Illuminator on) |
| S/N Ratio | More than 56 dB |
| IR Distance | 50 m (164.0 ft) |
| IR LEDs | 3 |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / WDR 120dB |
| White Balance | Auto / natural / street lamp / outdoor / manual / regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest | Yes (4 areas) |
| Smart Illumination | Yes |
| Privacy Masking | 4 Areas |
| Lens Type | Fixed Lens |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F1.6 |
| Viewing Angle | Horizontal: 103.0°; Vertical: 55.0°; Diagonal: 122.0° |
| Pan/Tilt/Rotation | Pan: 0°–355°; Tilt: 0°–65°; D: 0°–355° |
| DORI Distance | Detect: 56.0 m (183.7ft); Observe: 22.4 m (73.5 ft); Recognize: 11.2 m (36.8 ft); Identify: 5.6 m (18.4 ft) |
| Compression | H.265+; H.264+; MJPEG (only supported on the sub stream) |
| Resolution | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate | Main Stream: 2688 × 1520 at 1 to 25/30 fps; Sub stream: 704 × 576 (1 fps to 25 fps) 704 × 480 (1 fps to 30 fps); Third stream: 1280 × 720 at 1 to 25/30 fps |
| Bit Rate | H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps |
| Area Protector | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Use STORM Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection;scene changing; intensity change; tripwire; intrusion; Smart Motion Detection |
| Ethernet | RJ-45 (10/100 Base-T) |
| SDK & API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and im- porting of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Storage | FTP; SFTP; NAS; Micro SD Card up to 256 GB |
| Management Software | STORM, STORM+, ARKIV |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Compatibility | CGI; P2P; Milestone; Genetec |
| Maximum User Access | 20 |
| Smart Phone | iOS, Android |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Less than 7.3W |
| Working Environment | -40°C to +60°C (-40°F to +140°F); Less than 95% RH |
| Protection | IP67, IK10 |
| Dimensions | 81 mm × ?109.9 mm (3.2” × ?4.3”) |
| Weight | 1.15 lbs (0.52 kg) |
