Brand: Inaxsys Security Systems
|
SKU:
753761

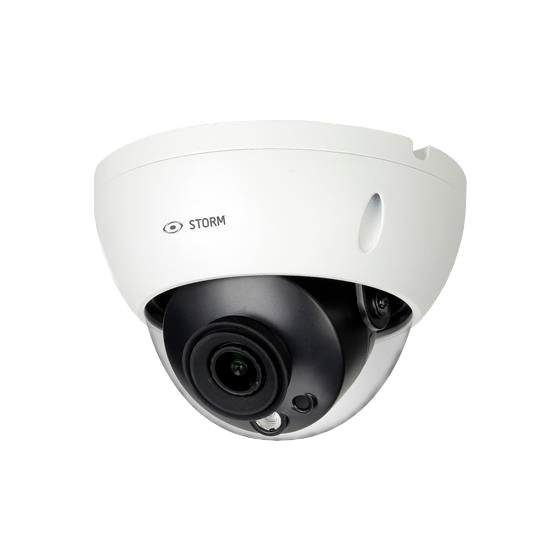

Inaxsys Security Systems INSDO4KIRF | 4K ULTRA-HD H265 Network Dome Camera With Fixed Lens
Regular price
$208.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Inaxsys Security Systems INSDO4KIRF | 4K ULTRA-HD H265 Network Dome...
Regular price
$208.34
Unit price
Brand: Inaxsys Security Systems
|
SKU:
753761
Regular price
$208.34
Unit price
Shipping calculated at checkout.
Description
Description
Inaxsys Security Systems INSDO4KIRF | 4K ULTRA-HD H265 Network Dome Camera With Fixed Lens
Inaxsys Security Systems - INSDO4KIRF - Features
- The 4K Ultra-HD H.265 Fixed Dome Camera combines high-resolution surveillance with efficient performance features, delivering clear 8MP video from its 1/2.7" CMOS image sensor even in low-light conditions. Equipped with WDR (120dB) and Day/Night (ICR) functionality, it adapts to varying light levels, supported by 3DNR, AWB, AGC, and BLC for enhanced image clarity and balance.
- This dome camera utilizes the H.265 codec to provide high compression rates and ultra-low bit rates, optimizing storage and bandwidth. Built-in IR LEDs offer up to 30 meters of night vision, while intelligent features like intrusion and tripwire detection enable proactive monitoring and detailed security coverage, making it a robust solution for modern surveillance needs.
Specifications
Specifications
Inaxsys Security Systems - INSDO4KIRF - Product Categories
- Security
- Video Surveillance
- Surveillance Cameras
Inaxsys Security Systems - INSDO4KIRF - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | INSDO4KIRF |
| Item Description | 4K ULTRA-HD H265 Network Dome Camera With Fixed Lens |
| Form Factor | Dome |
| UNSPSC Code | 46171610 |
| UPC | 685225606048 |
| Image Sensor | 1/2.7” 8 Megapixel progressive CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| RAM/ROM | 256MB/128MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Minimum Illumination | 0.009 Lux at F2.0 |
| S/N Ratio | More than 56 dB |
| IR Distance | 30 m (98.43 ft) |
| IR LEDs | 3 |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / WDR 120dB |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Illumination | Yes |
| Privacy Masking | 4 Areas |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8mm |
| Max. Aperture | F2.0 |
| Viewing Angle | Horizontal: 105.0° Vertical: 56.0° Diagonal: 125.0° |
| Pan/Tilt/Rotation | Pan: 0°–355°; Tilt: 0°–65°; D: 0°–355° |
| DORI Distance | Detect 74.7 m (245.1 ft), Observe 29.9 m (98.1 ft), Recognize 14.9 m (48.9 ft), Identify 7.5 m (24.6 ft) |
| Video Compression | H.265+; H.264+; MJPEG |
| Resolution | 4K (3840×2160) / 6M (3072×2048) / 5M (2560×1920) / 3M (2048x1536) / 3M (2304×1296) / 1080P (1920×1080) / 1.3M (1280x960) / 720P (1280×720) / D1 (704×576/704×480) / VGA (640×480) / CIF (352×288/352×240) |
| Frame Rate | Main Stream: 3840 × 2160 (1 fps–15 fps); 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps); 704 × 480 (1 fps–30 fps) |
| Bit Rate | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
| Smart Functions | Tripwire, Intrusion |
| Alarms Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Storage | FTP; SFTP; Micro SD Card up to 256GB; NAS |
| Management Software | STORM, STORM+, ARKIV |
| Compatibility | CGI; P2P; Milestone; Genetec |
| Maximum User Access | 20 |
| Smart Phone | iOS, Android |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Less than 6.2W |
| Working Environment | -40°C to +60°C (-40°F to +140°F); Less than 95% RH |
| Protection | IP67, IK10 |
| Dimensions | 81 mm × ?109.9 mm (3.19” × ?4.33”) |
| Weight | 1.08 lbs (0.491kg) |
