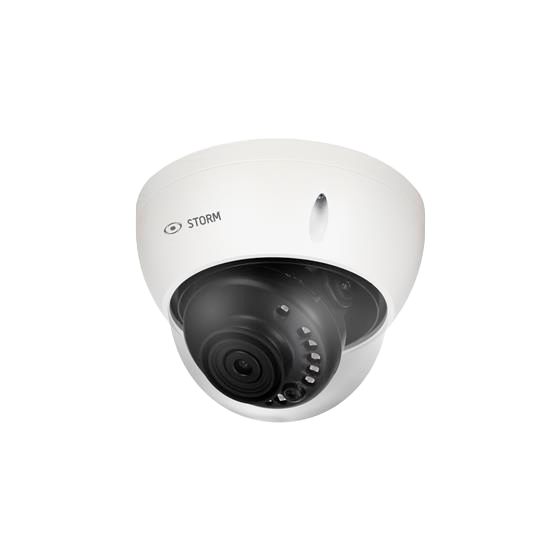

Inaxsys Security Systems INSDO5IRCF | 5MP HDCVI Fixed Dome
Regular price
$164.41
Unit price
Brand: Inaxsys Security Systems
|
SKU:
1048917
Regular price
$164.41
Unit price
Description
Description
Inaxsys Security Systems INSDO5IRCF | 5MP HDCVI Fixed Dome
Inaxsys Security Systems - INSDO5IRCF - Features
- The 5MP HD over Coax Fixed Dome Camera is a robust surveillance solution featuring a 2.8mm fixed lens and a maximum frame rate of 25 fps at 5MP resolution in a 16:9 video output format. This camera supports multiple video formats, including CVI, CVBS, AHD, and TVI, ensuring broad compatibility with various systems.
- Designed for optimal performance in low-light conditions, the camera is equipped with Smart IR technology, providing clear night vision with an IR illumination distance of up to 30 meters. Its durable construction includes an IP67 rating for weather resistance and an IK10 rating for impact protection, making it suitable for both indoor and outdoor environments.
- Powered by a DC12V supply, the 5MP HD over Coax Fixed Dome Camera combines high-quality imaging with reliable performance, making it an excellent choice for a wide range of security applications.
Specifications
Specifications
Inaxsys Security Systems - INSDO5IRCF - Product Categories
- Security
- Video Surveillance
- Surveillance Cameras
Inaxsys Security Systems - INSDO5IRCF - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | INSDO5IRCF |
| Item Description | 5MP HDCVI Fixed Dome |
| Lens Type | Fixed |
| Position Type | Fixed |
| Resolution | 5 Megapixels |
| Signal Process | Analog |
| UNSPSC Code | 46171600 |
| UPC | 685225609810 |
| Image Sensor | 1/2.7” 5 Megapixel progressive scan CMOS |
| Effective Pixels | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100,000s; NTSC: 1/30~1/100,000s |
| Minimum Illumination | 0.005 Lux / F1.6, 30IRE, 0 Lux IR on |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 30 m (98.4 ft) |
| IR LEDs | 12 |
| Day/Night | Auto switch by ICR |
| Backlight Compensation | BLC / HLC / DWDR |
| White Balance | Auto/Manual |
| Gain Control | AGC |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Viewing Angle | H: 111°; V: 58° |
| Pan/Tilt/Rotation | Pan: 0° ~ 355°; Tilt: 0° ~ 65°; Rotation: 0° ~ 355° |
| DORI Distance | Detect: 63.6 m (208.7 ft); Observe: 25.4 m (83.3 ft); Recognize: 12.7 m (41.7 ft); Identify: 6.4 m (21.0 ft) |
| Frame Rate | PAL: 5M at 25 fps; 4M at 25 fps; 1080P at 25 fps; NTSC: 5M at 25 fps; 4M at 30 fps; 1080P at 30 fps; PAL: 4M at 25 fps; NTSC: 4M at 30 fps; PAL: 4M at 25 fps; NTSC: 4M at 30 fps; PAL: 960H; NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480) |
| Video Output | Video output choices of CVI / TVI / AHD / CVBS by one BNC port |
| Power Supply | 12V ±30% DC |
| Power Consumption | Less than 3.5W |
| Working Environment | –40°C to +60°C (–40°F to 140°F); Less than 95% (non-condensation) |
| Protection | IP67; IK10 |
| Dimensions | ?109.9 mm × 81.0 mm ( ?4.33” × 3.19” ) |
| Weight | 0.99 lbs (0.45 kg) |
