Brand: Inaxsys Security Systems
|
SKU:
10364858

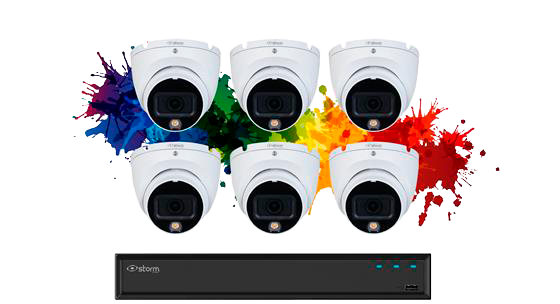

Inaxsys Security Systems INSK8N6CT2T | 8ch Camera and NVR KIT: 8 Channel 2 TB 4K NVR Bundle with 6 x CHROMAVIEW 4.1MP TURRETS
Regular price
$914.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Inaxsys Security Systems INSK8N6CT2T | 8ch Camera and NVR KIT: 8 Ch...
Regular price
$914.00
Unit price
Brand: Inaxsys Security Systems
|
SKU:
10364858
Regular price
$914.00
Unit price
Shipping calculated at checkout.
Description
Description
Inaxsys Security Systems INSK8N6CT2T | 8ch Camera and NVR KIT: 8 Channel 2 TB 4K NVR Bundle with 6 x CHROMAVIEW 4.1MP TURRETS
Inaxsys Security Systems - INSK8N6CT2T - Features
- Camera Features
- Introducing the CHROMAVIEW 4.1MP Turret Camera, featuring a 4MP, 1/3” CMOS image sensor designed for superior performance in low light conditions. This camera delivers a maximum resolution of 4MP (2688 × 1520) at 30 fps and utilizes the H.265 codec for high compression rates and ultra-low bit rates.
- Equipped with a built-in warm light that provides illumination up to 30 meters, it ensures clear visibility in all lighting conditions. The camera also includes advanced abnormality detection features such as motion detection, video tampering, network disconnection, IP conflict, and illegal access, making it an ideal choice for reliable and comprehensive surveillance.
- NVR Features
- Introducing the 8-Channel 2TB 4K NVR, equipped with H.265+/H.265 dual-stream video compression for efficient storage and transmission. This NVR supports adaptive decoding and offers a maximum decoding capability of 6 × 1080p at 30 fps. Enhanced with AI features for each camera, it includes Area Protector and Smart Motion Detection, providing advanced security and surveillance solutions.
Specifications
Specifications
Inaxsys Security Systems - INSK8N6CT2T - Product Categories
- Security
- Video Surveillance
- Video Recorders
Inaxsys Security Systems - INSK8N6CT2T - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | INSK8N6CT2T |
| Item Description | 8ch Camera and NVR KIT: 8 Channel 2 TB 4K NVR Bundle with 6 x CHROMAVIEW 4.1MP TURRETS |
| Capacity | 8 Channel |
| Type | Nvr |
| UNSPSC Code | 46171621 |
| UPC | 685225102885 |
| Camera specifications | - |
| Image Sensor | 1/3” 4Megapixel progressive CMOS |
| Effective Pixels | 2688 (H) ×1520 (V) |
| RAM/ROM | 128MB/16MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Minimum Illumination | 0.004 Lux at F1.0 |
| S/N Ratio | More than 56 dB |
| Illumination Distance | 30 m (98.43 ft) |
| Illumination LEDs | 1 (warm light) |
| Day/Night | Color / B/W |
| Backlight Compensation | BLC / HLC / WDR (120 dB) |
| White Balance | Auto / natural / street lamp / outdoor / manual / regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest | Yes (4 areas) |
| Image Rotation | 0° / 90° / 180° / 270° (Support 90° / 270° with 2560 × 1440 resolution and lower) |
| Smart Illumination | Yes |
| Privacy Masking | 4 Areas |
| Mirror | Yes |
| Lens Type | Fixed-flocal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.0 |
| Viewing Angle | Horizontal: 97°; Vertical: 54°; Diagonal: 115° |
| Pan/Tilt/Rotation | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| DORI Distance | Detect 66.0m((216.5ft); Observe 26.4m(86.6 ft); Recognize 13.2m(43.3 ft); Identify 6.6m(21.7 ft) |
| Compression | H.265+; H.264+; MJPEG (only supported on the sub stream) |
| Resolution | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate | Main Stream: 2688 × 1520 at 1 to 25/30 fps / Sub stream: 704 × 576 (1 fps to 25 fps); 704 × 480 (1 fps to 30 fps) |
| Bit Rate | H.264: 32 Kbps–6144 Kbps; H.265: 12 Kbps–6144 Kbps |
| Built-in Microphone | Yes |
| Audio | G.711a; G.711Mu; G.726; PCM |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B |
| Alarm Event | IP conflict; motion detection; video tampering; safety exception; network disconnection; audio exception |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and im- porting of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Ethernet | RJ-45 (10/100 Base-T) |
| SDK & API | Yes |
| Storage | FTP |
| Management Software | STORM, STORM+, ARKIV |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
| Compatibility | ONVIF (Profile S/ Profile T); CGI; P2P |
| Maximum User Access | 6 |
| Smart Phone | iOS, Android |
| Browser | Chrome; Firefox; IE |
| Power Supply | 12V DC/PoE (802.3af) |
| Working Environment | -40°C to +60°C (-40°F to +140°F); Less than 95% RH |
| Protection | IP67 |
| Material | Metal |
| Dimensions | 85.6 mm × ?94.0 mm (3.37” × ?3.70”) |
| Weight | 0.73 lbs (0.33 kg) |
| NVR specifications | - |
| Main Processor | Industrial embedded micro-processor |
| Operating System | Embedded LINUX |
| Operation Interface | Web; local GUI |
| Performance | 4 channels |
| Performance | 4 channels, Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change |
| Channels | 8 Channels |
| Network Bandwidth | Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps |
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 720p, D1 |
| Decoding Capability | 1-channel 12MP at 30 fps; 1-channel 8MP at 30 fps; 2-channel 5MP at 30 fps; 3-channel 4MP at 30 fps; 6-channel 1080p at 30 fps |
| Video Output | 1 × VGA, 1 × HDMI (simultaneous) |
| Multi-screen Display | 1 / 4 / 8 / 9 |
| Third Party Camera Access | ONVIF |
| Video | H.265+; H.264+; H.265; H.264; MJPEG |
| Audio | PCM; G.711A; G.711U; G.726 |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports STORM IP cameras, DVR, NVR, and more.) ; P2P |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), CGI, SDK |
| Multi-channel Playback | Up to 8 channels |
| Record Mode | Manual record; alarm record; motion detection record; schedule record |
| Storage Method | Local HDD and Network |
| Backup | USB device |
| Playback Function | 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame / 2. Full screen; backup(video clip/file); partially zoom in; audio on/off |
| General Alarm | Motion detection; privacy masking; video loss; PIR alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception |
| Smart Alarm | Area Protector; Smart Motion Detection |
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; email; tour |
| Audio Input | 1 channel |
| Audio Output | 1 channel |
| HDD | 1 SATA ports, up to 16 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| USB | 1 front USB 2.0 port; 1 rear USB 2.0 port |
| Network | 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| PoE | 8 × PoE ports, 10/100 Mbps |
| Power Consumption | Total output of NVR is ? 10 W (without HDD) Total output power of PoE is 72 W, the maximum output power of asingle port is 25.5 W |
| Weight | 1.95 lbs (0.89kg) |
| Dimensions | 260 mm × 232.7 mm × 47.6 mm (10.24” × 9.16” × 1.87”) |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F); 10%–93% (RH) |
