Description
Description

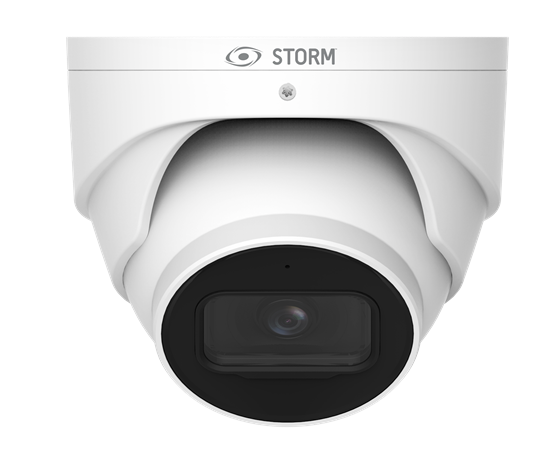

Inaxsys Security Systems INSTO4IRWF | 4.1MP Lite AI IR Fixed Turret WDR 120DB Camera
Inaxsys Security Systems - INSTO4IRWF - Features
- The 4.1MP Lite AI IR Fixed Turret WDR 120DB Camera combines advanced surveillance features with intelligent detection technology. Featuring a 4MP, 1/3” CMOS image sensor, it delivers high-quality images even in low-light conditions, with a maximum resolution output of 2688 × 1520 at 30 fps. The camera uses the H.265 codec for high compression and ultra-low bit rates, optimizing storage and bandwidth usage.
- Equipped with a built-in IR LED, the camera offers night vision capabilities with a maximum IR distance of 50 meters. Its intelligent detection features include intrusion and tripwire detection, supporting the accurate classification and detection of vehicles and humans. This makes the camera an excellent choice for comprehensive and efficient surveillance solutions.
Specifications
Specifications
Inaxsys Security Systems - INSTO4IRWF - Product Categories
- Security
- Video Surveillance
- Surveillance Cameras
Inaxsys Security Systems - INSTO4IRWF - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | INSTO4IRWF |
| Item Description | 4.1MP Lite AI IR Fixed Turret WDR 120DB Camera |
| Lens Type | Fixed |
| Position Type | Fixed |
| UNSPSC Code | 46171610 |
| UPC | 685225603610 |
| Image Sensor | 1/3” 4 Megapixel progressive scan CMOS |
| Effective Pixels | 2688 (H) ×1520 (V) |
| RAM/ROM | 512MB/128MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Minimum Illumination | 0.005 Lux at F1.6 (Color, 30IRE); 0.0005 Lux at F1.6 (B/W, 30IRE) 0 Lux (Illuminator on) |
| S/N Ratio | More than 56 dB |
| IR Distance | 50 m (164.0 ft) |
| IR LEDs | 2 |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / WDR 120dB |
| White Balance | Auto / natural / street lamp / outdoor / manual / regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest | Yes (4 areas) |
| Smart Illumination | Yes |
| Privacy Masking | 4 Areas |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Viewing Angle | Horizontal: 103°; Vertical: 55°; Diagonal: 122° |
| Pan/Tilt/Rotation | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| DORI Distance | Detect: 56.0 m (183.7ft); Observe: 22.4 m (73.5 ft); Recognize: 11.2 m (36.8 ft); Identify: 5.6 m (18.4 ft) |
| Compression | H.265+; H.264+; MJPEG (only supported on the sub stream) |
| Resolution | 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate | Main Stream: 2688 × 1520 at 1 to 25/30 fps; Sub stream: 704 × 576 (1 fps to 25 fps) 704 × 480 (1 fps to 30 fps); Third stream: 1280 × 720 at 1 to 25/30 fps |
| Bit Rate | H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps |
| Area Protector | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with the STORM Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection;scene changing; intensity change; tripwire; intrusion; Smart Motion Detection |
| Built-in Microphone | Yes |
| Audio Compression | G.711a; G.711Mu; G726 |
| Ethernet | RJ-45 (10/100 Base-T) |
| SDK & API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and im- porting of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Storage | FTP; SFTP; NAS; Micro SD Card up to 256 GB |
| Management Software | STORM, STORM+, ARKIV |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Compatibility | CGI; P2P; Milestone; Genetec |
| Maximum User Access | 20 |
| Smart Phone | iOS, Android |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Less than 7.7W |
| Working Environment | -50°C to +60°C (-58°F to +140°F); Less than 95% RH |
| Protection | IP67 |
| Dimensions | 99.1 mm × ?121.9 mm (3.9” × ?4.8”) |
| Weight | 1.45 lbs (0.66 kg) |
