Brand: Inaxsys Security Systems
|
SKU:
10508289

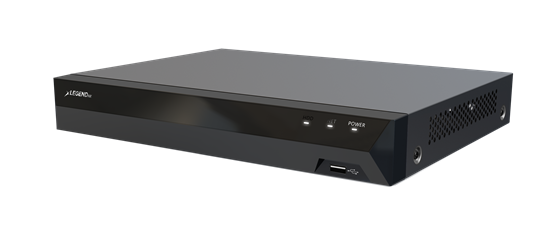

Inaxsys Security Systems LGNX16164KN | 16 CHANNEL 4K NVR/16 POE
Regular price
$628.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Inaxsys Security Systems LGNX16164KN | 16 CHANNEL 4K NVR/16 POE
Regular price
$628.65
Unit price
Brand: Inaxsys Security Systems
|
SKU:
10508289
Regular price
$628.65
Unit price
Shipping calculated at checkout.
Description
Description
Inaxsys Security Systems LGNX16164KN | 16 CHANNEL 4K NVR/16 POE
Inaxsys Security Systems - LGNX16164KN - Features
- This 16-channel NVR supports up to 12MP IP video input with AI features such as SMD, perimeter protection, and face detection for enhanced security. With 80Mbps bandwidth, 16 PoE ports, ONVIF & RTSP protocol support, and simultaneous 4K HDMI/VGA outputs, it ensures high-quality and efficient surveillance management.
- 16-Channels IP Video input, up to 12MP
- AI by Camera: SMD, perimeter protection, face detection, etc.
- Incoming & Outgoing bandwidth : 160M / 80M
- Supports ONVIF & RTSP protocols
- VGA/HDMI Simultaneous video output, maximum resolution of HDMI is 4K
- 16 Ports POE
- Ordering Information
- Storage Capacity
- LGNX16164KN2T
- 2 TB
- LGNX16164KN4T
- 4 TB
- LGNX16164KN6T
- 6 TB
- LGNX16164KN8T
- 8 TB
- LGNX16164KN10T
- 10 TB
- LGNX16164KN12T
- 12 TB
- LGNX16164KN16T
- 16 TB
- LGNX16164KN20T
- 20 TB
Specifications
Specifications
Inaxsys Security Systems - LGNX16164KN - Product Categories
- Security
- Video Surveillance
- Video Recorders
Inaxsys Security Systems - LGNX16164KN - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | LGNX16164KN |
| Item Description | 16 CHANNEL 4K NVR/16 POE |
| Capacity | 16 Channel |
| Type | Nvr |
| UNSPSC Code | 46171621 |
| UPC | 685225308805 |
| IP Video Input | 16-Channels |
| Audio Input | 1-Channel, RCA |
| HDMI | 1-Channel: 4K (3840 × 2160)/30Hz, (1920 × 1080)/60Hz, (1280 × 1024)/60Hz, (1280 × 720)/60Hz |
| VGA | 1-Channel: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Audio Output | 1-Channel, RCA |
| Compression | H.265+/ H.265/ H.264+/ H.264 |
| Resolution | 12MP / 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF / QCIF |
| Playback Resolution | 12MP / 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF / QCIF |
| Decoding | 1-Channel @ 12M 20fps; 2-Channels @ 8M 30fps; 3-Channels @ 5M 30fps; 4-Channels @ 4M 30fps; 8-Channels @ 1080P 30fps; 16-Channels @ 720P 30fps |
| Synchronous Playback | 16 Canaux |
| Smart Playback | Enhanced playback with advanced search features, such as motion or object detection for faster review |
| Normal Playback | Standard, continuous playback of recorded footage |
| Segmented Playback | Splits recorded footage into time segments for easier navigation |
| Tagged Playback | Allows playback of video segments that have been labeled or tagged for easy access |
| Event Playback | Focuses playback on recorded events like motion detection or alarms |
| Picture Playback | View recorded footage in still image format for detailed inspection |
| Backup Mode | USB Device / Network |
| Smart Detection | Advanced detection capabilities include Area Intrusion, Line Crossing, Region Entry/Exit, Rapid Movement, Object Removal, Unattended Object, Loitering, Parking, Face Detection, Crowd Gathering Detection, Blur Detection, Scene Change Detection, Audio Anomaly Detection, Human and Vehicle Detection, Smart Motion Detection (SMD), and Perimeter Protection (PP) |
| Smart Playback | Face Detection / Line Crossing / Area Intrusion / Motion Detection / Human Detection / Vehicle Detection |
| Cloud Storage | Supported |
| Cloud Upgrade | Supported |
| Network Compatibility | HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, NTP, DHCP, DNS, Filtre IP, DDNS, FTP, P2P, ONVIF |
| Smart Phone | IOS (iPhone, iPad), Android (Phone, Pad) |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Ethernet | 1 RJ-45 10/100/1000 Mbps Interface Ethernet Auto-Adaptive |
| SATA | 2 Interfaces SATA |
| Capacity | Up to 14TB capacity for each HDD |
| PoE Interface | 16 independent 10/100 Mbps PoE Ethernet interfaces |
| USB Interface | Front panel: 1 × USB 2.0, Rear panel: 1 × USB 2.0 |
| Alarm In | 4-Channels |
| Alarm Out | 1-Channel |
| Power Consumption | ?15W (without HDD and PoE) |
| Working Environment | -10°C ~ +55°C (14°F ~ 131°F)/10% ~ 90%RH |
| Dimension (W×D×H) | 380 × 305 × 45 mm (14.96" × 12.00" × 1.77") |
| Weight | 7.93 lb / 3.6 Kg |
