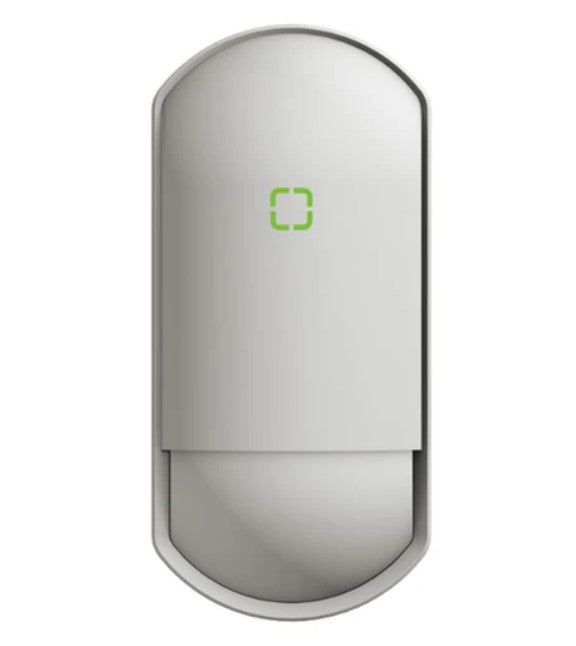

Commercial Grade Dual Technology, Microwave & PIR movement detector with 15m detection range. The perfect choice for residential to commercial applications for harsher environments. IR Ready, these detectors are factory fitted with an End-of-line (EOL) resistor module that is specific to Inner Range security controllers which dramatically speeds up installation time by reducing the complexity of the installation. This module is easily removed so these high quality detectors are compatible with any brand of security alarm system. High quality, highly reliable, IR Ready and easy to install, these Commercial Grade Intrusion Detectors will suit any indoor application from residential to highly sensitive commercial applications.
Specifications
Specifications
Inner Range - IR-D-P2E - Specifications
| Wire Gauge | 12 V DC |
|---|---|
| AWG 22 (0.33 mm²) | 410 m |
| Coverage | Wide?15 m (50 ft.) 85°, Narrow?24 m (80 ft.) 5° |
| Detection zones | Wide: 78 zones, Narrow: 18 zones |
| Mounting height | 2.0 to 3.0 m (6'7" to 9'8") |
| LED indicator | Switchable ON/OFF Green: [1] Warm-up [2] Alarm |
| Power input | 9.5 to 16 V DC UL |
| Operation temperature | -20? to +45?(-4°F to +113°F) |
| Environmental humidity | 95% max. |
| Dimension | H: 129.2 x W: 61.5 x D: 50.9 mm (H: 5.09" x W: 2.42" x D: 2.00") |
| Weight | Approx. 110 g (3.88 oz) (with Bracket : Approx. 140 g (4.94 oz)) |
