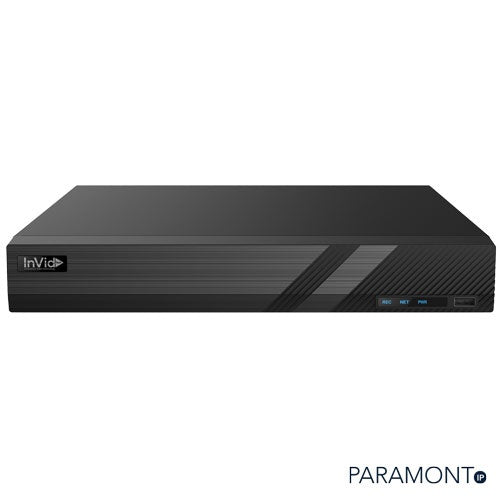

Invid Tech PN1B-8X8NH2 | Network Video Recorder, 80 Mbps Max Incoming, 8 Channel, Embedded Linux
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Invid Tech PN1B-8X8NH2 | Network Video Recorder, 80 Mbps Max Incomi...
Description
Description
Network Video Recorder, Bandwidth - Incoming Maximum: 80 Mbps, Compression Codec: H264, H265, H265+, H265S, Frame Rate - Maximum: 30 fps, HD Bays - Total: 1, HDD Drive Type: SATA, Number of Channels: 8, Operating System: Embedded Linux, Port Configuration: 2 x USB 2.0, 2 x 100M RJ45, Power Consumption: 10 W, Resolution: 8 MP/1080 P, Special Feature: Remote Controller, Storage Capacity - Maximum: 18 TB, Voltage: 48 VDC, Temperature Rating: -10 to 50 C, Dimensions: WxHxD: 11.8 x 1.7 x 9.8 in., Special Rating: CE, ETL, FCC, NDAA, REACH, WEEE, Additional_Details: With 8 Plug and Play Ports, 4K
Invid Tech - PN1B-8X8NH2 - Features
- 8 Plug & Play Ports for easy camera setup PoE (Power Over Ethernet) available on all ports
- Up to 8 Megapixel Resolution Recording
- Supports up to 8 channel simultaneous playback
- Works with ONVIF or other supported IP cameras
- Local HDMI main monitor output with 4K support
- Local VGA main monitor output up to 1080p
Specifications
Specifications
Invid Tech - PN1B-8X8NH2 - Product Categories
- Security
- Video Surveillance
- Video Management, Recording and Storage
- Network Video Recorders (NVR)
Invid Tech - PN1B-8X8NH2 - Specifications
| Manufacturer Name | Invid Tech |
|---|---|
| Manufacturer Part Number | PN1B-8X8NH2 |
| Item Description | Network Video Recorder, 80 Mbps Max Incoming, 8 Channel, Embedded Linux |
| Bandwidth - Incoming Maximum | 80 Mbps |
| Compression Codec | H264, H265, H265+, H265S |
| Frame Rate - Maximum | 30 fps |
| HD Bays - Total | 1 |
| HDD Drive Type | SATA |
| Number of Channels | 8 Channel |
| Operating System | Embedded Linux |
| Port Configuration | 2 x USB 2.0, 2 x 100M RJ45 |
| Power Consumption | 10 W |
| Resolution | 8 MP |
| Special Feature | Remote Controller |
| Storage Capacity - Included | 2 TB |
| Storage Capacity - Maximum | 18 TB |
| Voltage | 48 VDC |
