Jonard 30-R-50-010 | 30 AWG Kynar® Wire Pre-Cut, Red, 1" (Pack...
Description
Description

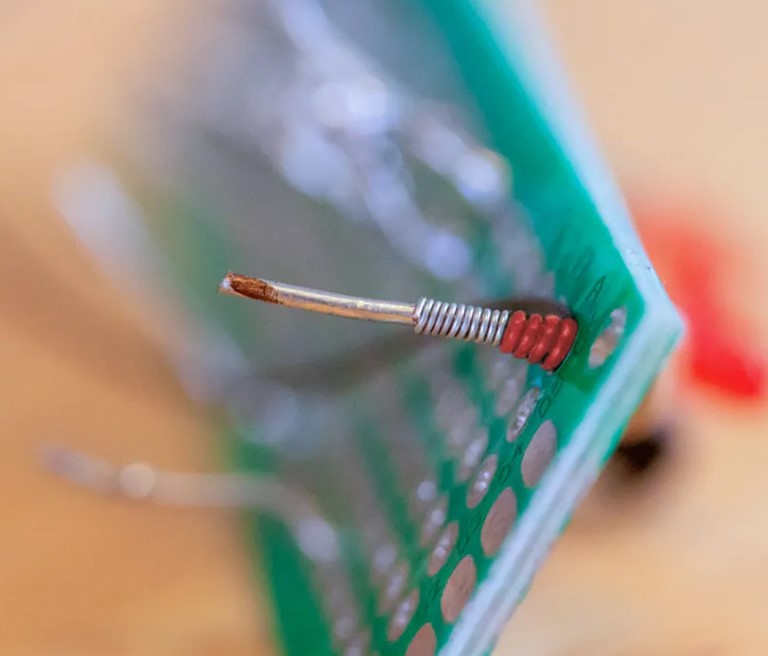

Typically used where flexibility, strength, and low weight is required, Kynar® wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. Additionally, Kynar® insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons
Jonard - 30-R-50-010 - Features
- OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility
- Kynar® insulation provides high temperature resistance (up to 105°C) and excellent abrasion resistance
- Meets or exceeds UL 1423 standards

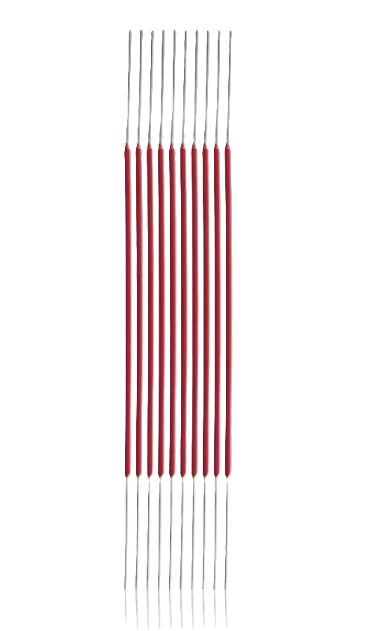

- This wire is insulated in the middle and stripped on both ends
- Insulation length is 1" and the stripped length on each end is 1"
Specifications
Specifications
Jonard - 30-R-50-010 - Specifications
| Manufacturer Part Number | 30-R-50-010 |
|---|---|
| Manufacturer | Jonard |
| Item Description | 30 AWG Kynar® Wire Pre-Cut, Red, 1" (Pack of 50) |
| Insulation Type | Kynar® |
| Insulation Thickness | 0.005" (0.127 mm) |
| Wire Gauge | 30 AWG (0.25 mm) |
| Overall Diameter | 0.020" (0.50 mm) |
| Standards | UL 1423 |
| Voltage | Not Rated |
| Insulation Length | 1" (25.4 mm) |
| Each End Strip Length | 1" (25.4 mm) |
| Overall Length | 3" (76 mm) |
| Dimensions | 3 in x 0 in x 0 in (7.62 cm x 0 cm x 0 cm) |
| UPC # | 811490011021 |
