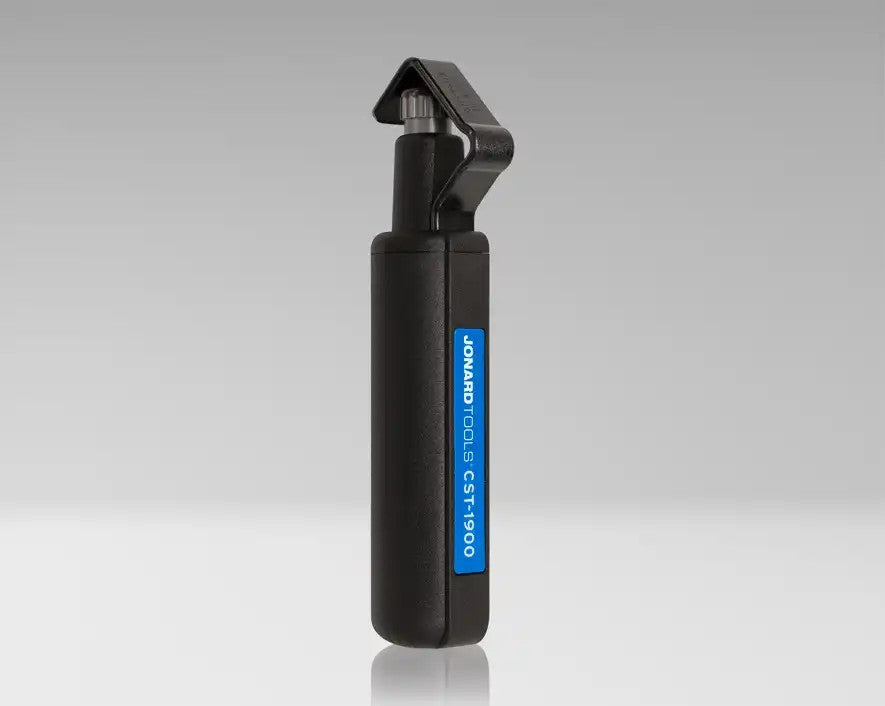

Jonard CST-1900 | Round Cable Strip & Ring Tool
Description
Description
The PATENTED CST-1900 Round Cable Strip & Ring Tool is designed for fast and precise removal of cable jackets from round cables that are 3/16” to 1 1/8” (4.5 mm-29 mm) in diameter. This round cable stripper features the following: Patented stripping mechanism provides a Spiral Stripping Mode to strip and remove tough insulations Cuts through a variety of jacket materials such as PVC, rubber, PE, and many others Triple action design makes longitudinal cuts for end stripping, spiral cuts for end and mid span stripping, and circular cuts for jacket removal Spring-loaded blade can be rotated 90 degrees for versatile slitting and can be adjusted for multiple round cable sizes from 3/16" to 1 1/8" (4.5 mm-29 mm) in diameter Blade depth 0 mm-3 mm Replacement blade is available (part #: CST-7915)
Jonard - CST-1900 - Features
- Patented stripping mechanism provides a Spiral Stripping Mode to strip and remove tough insulations
- Cuts through a variety of jacket materials such as PVC, rubber, PE, and many others
- Triple action design makes longitudinal cuts for end stripping, spiral cuts for end and mid span stripping, and circular cuts for jacket removal
- Spring-loaded blade can be rotated 90 degrees for versatile slitting and can be adjusted for multiple round cable sizes from 3/16" to 1 1/8" (4.5 mm-29 mm) in diameter
- Blade depth 0 mm-3 mm
Specifications
Specifications
Jonard - CST-1900 - Product Categories
- Hardware
- Tools and Supplies
- Cable Termination Tools
Jonard - CST-1900 - Specifications
| Brand Name | Jonard |
|---|---|
| Manufacturer Part Number | CST-1900 |
| Item Description | Round Cable Strip & Ring Tool |
| Type | Copper |
| UNSPSC Code | 43223300 |
| Cut Type | Slit, Ring |
| Cable Type | Jacket, Round Distribution |
| Cable Diameter | 3/16"-1 1/8" (4.5 mm-29 mm) |
| Blade Depth | 0 mm-3 mm |
| Overall Length | 5 1/4" (133 mm) |
| Dimensions | 5.38 in x 1.1 in x 1.5 in (13.65 cm x 2.79 cm x 3.81 cm) |
| Weight | 0.21 lb (97.156 g) |
| UPC # | 811490011977 |
Documents and Downloads
Documents and Downloads
