Jonard CST-92 | Coaxial Cable Stripper
Regular price
$23.37
Unit price
Brand: Jonard
|
SKU:
10685995
Regular price
$23.37
Unit price
Description
Description

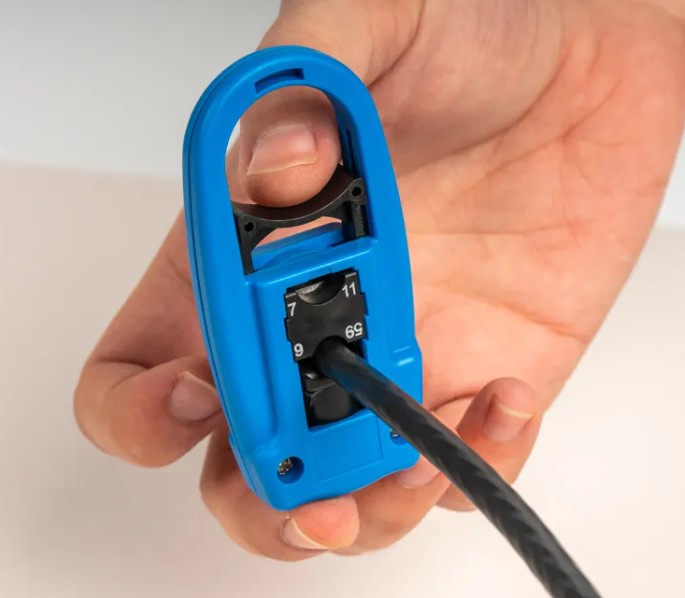

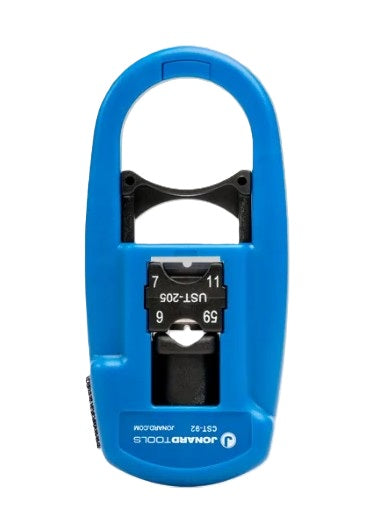

Jonard CST-92 | Coaxial Cable Stripper
The Jonard Tools CST-92 COAX stripping tool is designed to strip RG59, RG6, RG6 Tri & Quad Shield, N48, RG7, and RG11 coaxial cables for quick and easy termination.
Jonard - CST-92 - Features
- Included blade cartridge provides a 2-level strip for F, BNC, and RCA connector termination
- Cartridge is reversible for ambidextrous use
- Hook and Loop strip on side of the tool folds back the braided shield on the cable with ease
- Large finger loop provides smooth rotation during use
- Stripping action removes 1/4" of jacket and 5/16" of shield and dielectric, which exposes the center conductor
Specifications
Specifications
Jonard - CST-92 - Specifications
| Manufacturer Part Number | CST-92 |
|---|---|
| Manufacturer | Jonard |
| Item Description | Coaxial Cable Stripper |
| Cable Type | COAX |
| Cable Size | RG59/6/N48 & RG7/11 |
| Strip Length | Jacket: 0.25" (6.35 mm), Shield & Dielectric: 0.3125" (7.9375 mm) |
| Dimensions | 3.7 in x 1.73 in x 0.94 in (9.39 cm x 4.38 cm x 2.37 cm) |
| Weight | 0.07 lb (31.78 g) |
| UPC # | 810053352168 |
