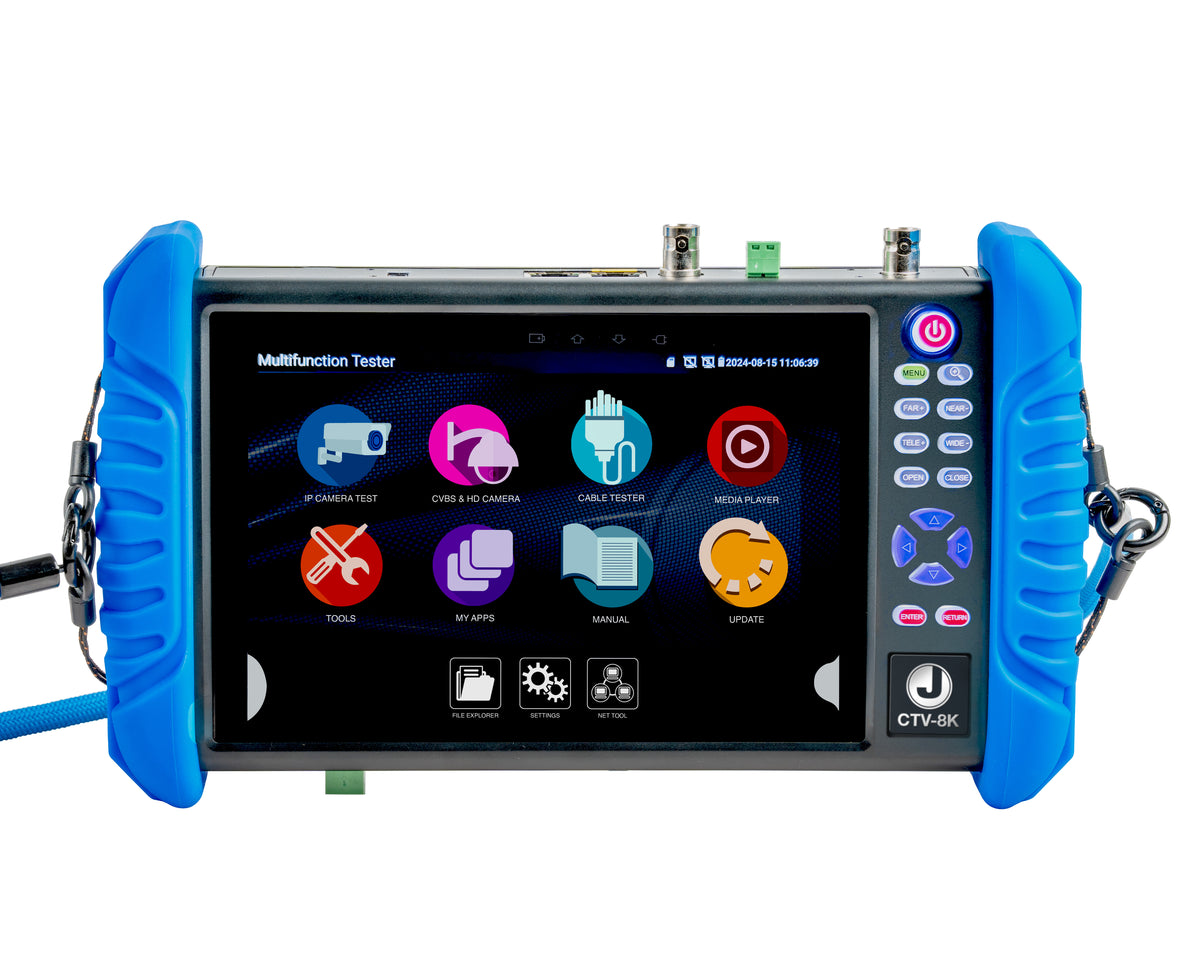

Jonard CTV-8K | Multifunctional 8k CCTV Tester
Regular price
$1,062.88
Unit price
Brand: Jonard
|
SKU:
10669524
Regular price
$1,062.88
Unit price
Description
Description
Jonard CTV-8K | Multifunctional 8k CCTV Tester
Introducing the CTV-8K, the ultimate multifunctional CCTV tester that supports a wide array of camera types, making setup and testing of your network a breeze. With its built-in POE and HDMI tester, along with the RJ45 TDR tester, this all-in-one solution allows you to effortlessly verify and troubleshoot your entire system. Empower yourself with enhanced productivity from start to finish with the CTV-8K installation and troubleshooting tester for digital/IP, HD coax, and analog CCTV camera systems. This product features the following:
Jonard - CTV-8K - Features
- 8k IP Camera Test and 4K 60fps HDMI Test
- Connect to various cameras using RJ45, Wi-Fi or BNC ports
- Power the camera with 12V from the Li-Ion battery or PoE/PoE+
- Comprehensive camera setup with aim, focus, PTZ, presets and network settings
- Setup Security Cameras- use the analog video port to setup security cameras
- Product has been independently tested to meet ETL Listed standards
Specifications
Specifications
Jonard - CTV-8K - Specifications
| IP Camera Test | 8K H.265 IP |
|---|---|
| HDMI Output | Max support 4K 60FPS; Open HDMI app output pure color interface |
| VGA Input | Supports up to 1920 x 1080P |
| Additional Functions | PoE protocol detection and testing; Real-time network traffic monitoring; Cable Length Measurement/TDR; RS485 input/output |
| Android System Version | 11 |
| Supported Camera Types | IP, CVBS, AHD, CVI, TVI |
| Display | 7-inch touch screen, 1280 x 800 |
| Network port | Auto-adjusting 10/100/1000 Mbps, RJ45, Dual LAN port |
| Wifi Speed | 150 Mbps |
| 8K H.265 Mainstream Test | New hardware decoding, 8K H.265/4K H.264 camera image display by mainstream testing |
| IP Camera Type | ONVIF, ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, RTSP Viewer |
| CVI Video Signal Test | 1 channel CVI input (BNC interface). Supports resolutions: 720P 25/30/50/60fps,1080P 25/30fps, 2560x1440P 25/30fps, 2592x1944 20fps, 2960x1920 20fps, 3840 x 2160 12.5/15 fps. |
| TVI Video Signal Test | 1 channel TVI input (BNC interface). Supports resolutions: 720P 25/30/50/60fps, 1080P 25/30fps, 2048x1536P 18/25/30fps, 2688x1520P 15fps, 2560x1440P 15/25/30fps, 2560x1944P 12.5/20fps, 3840 x 2160 12.5/15 fps |
| AHD Video Signal Test | 1 channel AHD input (BNC interface). Supports resolutions: 720P 25/30fps, 1080P 25/30fps, 2048x1536P 18/25/30fps, 2560x1440P 15/25/30fps, 2560x1944P 12.5/ 20fps, 3840 x 2160P 15 fps |
| Analog Video Test | 1 channel BNC Input & 1 channel BNC Output , NTSC/PAL (Auto adapting) |
| Battery | 11.1V Li-Po, 5200 mAh |
| IP discovery | Auto-scan the whole network segment camera IP |
| Rapid ONVIF | Search cameras quickly, auto log in and display images from the camera, and activate Hikvision cameras |
| Hik Test Tool | Batch activate Hikvision cameras, display images from the camera, modify channels, batch modify IP, change username and password parameters, etc. |
| DH Test Tool | Batch activate Dahua cameras, batch modify IP, modify channels, change username and password parameters, etc. |
| Auto HD | Auto-recognize the resolution and auto-display the image of the connected camera. Supports coaxial PTZ control and calls the OSD menu. Supports up to 8MP TVI/CVI/AHD and CVBS cameras. |
| Zoom Image | Supports Analog and IP camera image zooming & movement |
| Snapshot, Video record and playback | Capture current images and record live video as JPG file. Media player will view photos and playback video |
| HDMI IN | HDMI IN, Support 4K 30FPS, 3840x2160P 30FPS, 720×480P /720×576P/1280×720P/1920×1080P /1024×768P/1280×1024P /1280×900P /1440×900P. |
| Working Temperature | -10?---+50? |
| Working Humidity | 30%-90% |
| Dimensions | 12 in x 7 in x 4 in (30.48 cm x 17.78 cm x 10.16 cm) |
| Weight | 4.68 lb (2124.72 g) |
| UPC # | 810132438028 |
