Brand: Jonard
|
SKU:
10596176
Jonard FPM-50S | Mini Optical Power Meter, (-50 to +26dBm)
Regular price
$229.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Jonard FPM-50S | Mini Optical Power Meter, (-50 to +26dBm)
Regular price
$229.74
Unit price
Description
Description

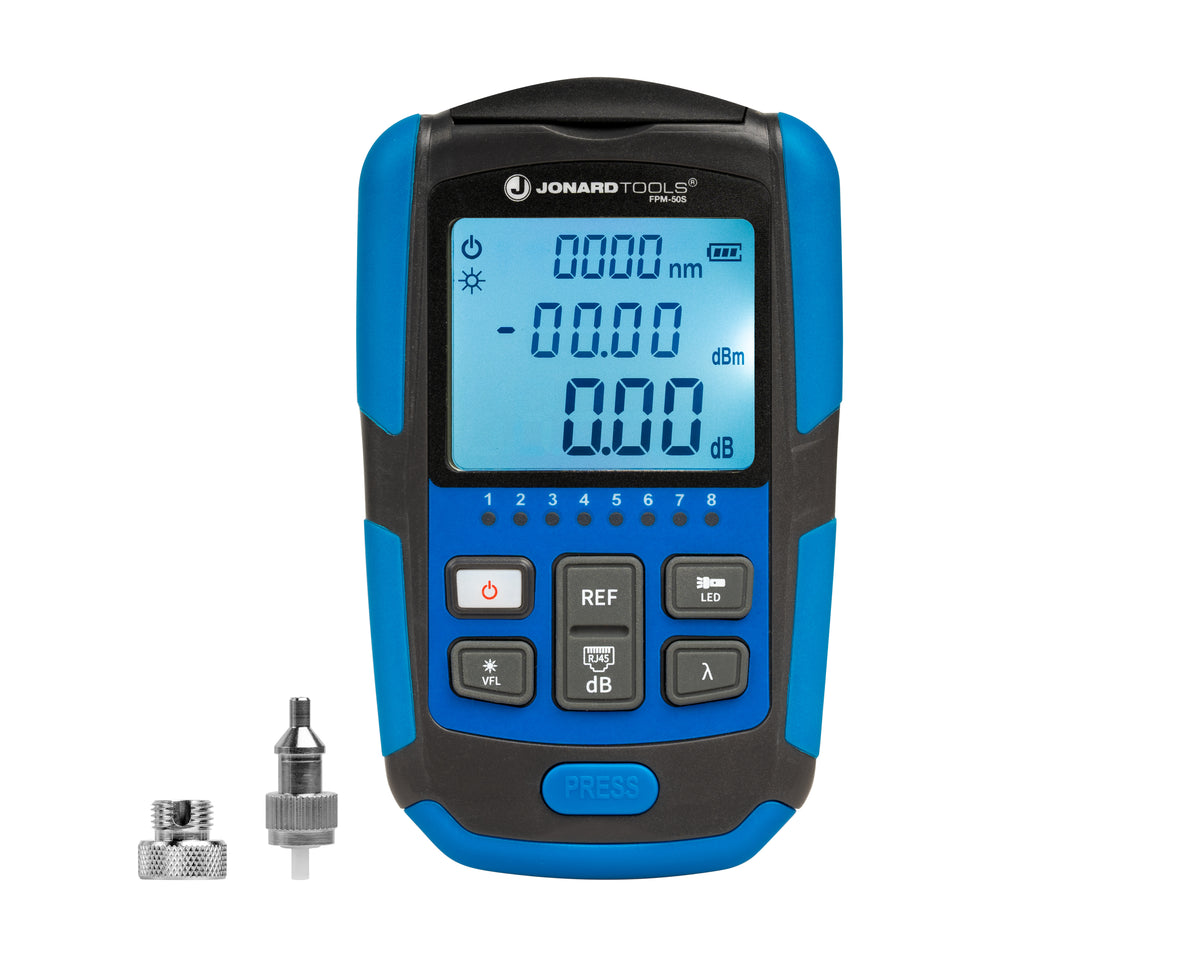

Jonard FPM-50S | Mini Optical Power Meter, (-50 to +26dBm)
The Jonard Tools Mini Optical Power Meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables. It also features a built-in visual fault locator and network cable tester and remote. This power meter features the following:
Jonard - FPM-50S - Features
- Measures power using a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
- Measures 10 preset calibrated wavelengths with high precision to determine absolute or relative power
- LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
- Built-in 2 mW visual fault locator (VFL) identifies faults in fiber cable in a pinch
- Tests RJ45 connectorized network cables using built-in remote
- Comes with FC and LC adapters so that fiber connectors can be directly connected to the tool
- The FC/SC adapters are for APC/PC/UPC connectors
- The LC adapter is for PC/UPC connectors only
Specifications
Specifications
Jonard - FPM-50S - Specifications
| Connector Types | FC (APC/PC/UPC) & LC (PC/UPC) |
|---|---|
| Calibrated Wavelengths (nm) | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650 nm, ? ± 0.2 dB |
| Detector Type | InGaAs |
| Measurement Range | -50 dBm to +26 dBm |
| Single Mode Range | 980, 1270, 1310, 1490, 1550, 1577, 1625, 1650 nm |
| Multi Mode Range | 850, 1300 nm |
| XGSPON Range | 1270, 1577 nm |
| Resolution | 0.01 dB |
| Operating Time | ? 120 hours |
| Battery Type | (2) AAA 1.5V Alkaline Batteries |
| Dimensions | 4 in x 2 in x 1 in (10.16 cm x 5.08 cm x 2.54 cm) |
| Weight | 0.3 lb (136.2 g) |
| UPC # | 810053359785 |
