Brand: Jonard
|
SKU:
10353816

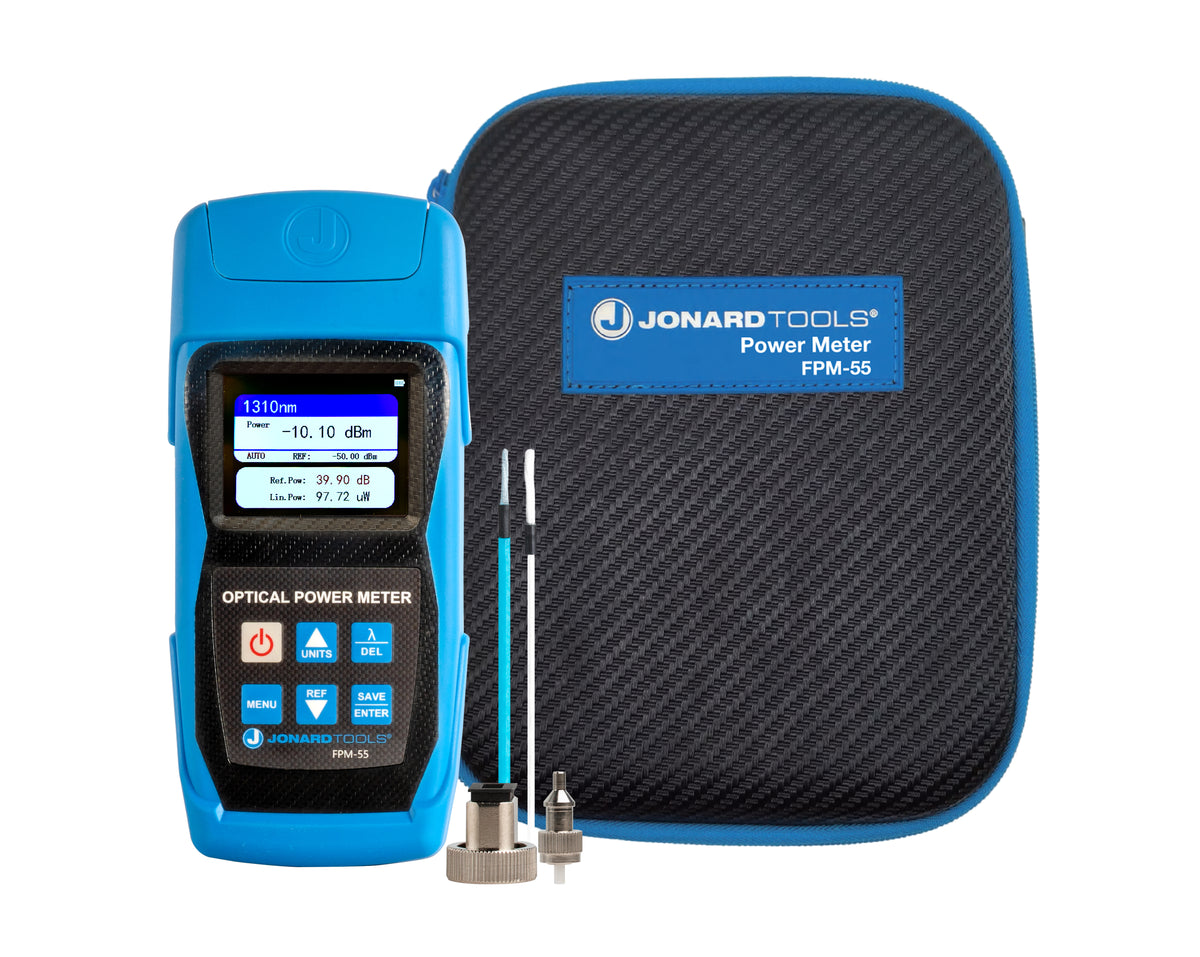

Jonard FPM-55 | Fiber Optic Power Meter with Data Storage (-50 to +26 dBm) and FC/SC/LC Adapters
Regular price
$483.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Jonard FPM-55 | Fiber Optic Power Meter with Data Storage (-50 to +...
Regular price
$483.66
Unit price
Description
Description
Jonard FPM-55 | Fiber Optic Power Meter with Data Storage (-50 to +26 dBm) and FC/SC/LC Adapters
Includes: Fiber Optic Power Meter Instruction Manual Protective Cover (3) AA Batteries (required for operation) (2) Cleaning Swabs FC Adapter SC Adapter FC-LC Adapter (Singlemode Only) Protective Carrying Case Measures a wide variety of wavelengths Determines absolute or relative power Stores up to 1,000 data entries Intelligent backlit control reduces power consumption Auto-off function can be turned on or off
Jonard - FPM-55 - Features
- Measures a wide variety of wavelengths
- Determines absolute or relative power
- Stores up to 1,000 data entries
- Intelligent backlit control reduces power consumption
- Auto-off function can be turned on or off
Specifications
Specifications
Jonard - FPM-55 - Specifications
| Detector Type | InGaAs |
|---|---|
| Wavelength Test Range (nm) | 800 ~ 1700 |
| Measurement Range (dBm) | +26 ~ -50 |
| Default Calibration Wavelength (nm) | 850/980/1300/1310/1490/1550/1625/1650 |
| Minimum Display Resolution (dB) | 0.01 |
| Linearity (dB) | ? 0.1 |
| Uncertainty | ± 0.15 |
| Frequency Identification (Hz) | CW, 270 Hz, 330 Hz, 1000 Hz, 2000 Hz |
| Measurement Unit | dBm, dB, xW |
| Optical Connector | FC, SC |
| Communication Interface | USB-C |
| Data Storage (no. of entries) | 2000 |
| Wavelength Identification | Yes, using our FLS-50 or FLS-55 |
| Display Size | 2.4-inch LCD |
| Power Supply | 1.5V*3 AA alkaline batteries |
| Continuous Working time | ?50 hr |
| Auto turn-off (min) | OFF, 10, 20, 30 |
| Operating Temperature (°C) | -10 ~ +60 |
| Storage Temperature (°C) | -25 ~ +70 |
| Dimensions | 9 in x 7 in x 3 in (22.86 cm x 17.78 cm x 7.62 cm) |
| Weight | 1.74 lb (789.96 g) |
| UPC # | 810053350416 |
