Jonard FPM-70 | Fiber Optic Power Meter (-70 to +6 dBm) with FC/SC/...
Regular price
$315.37
Unit price
Description
Description

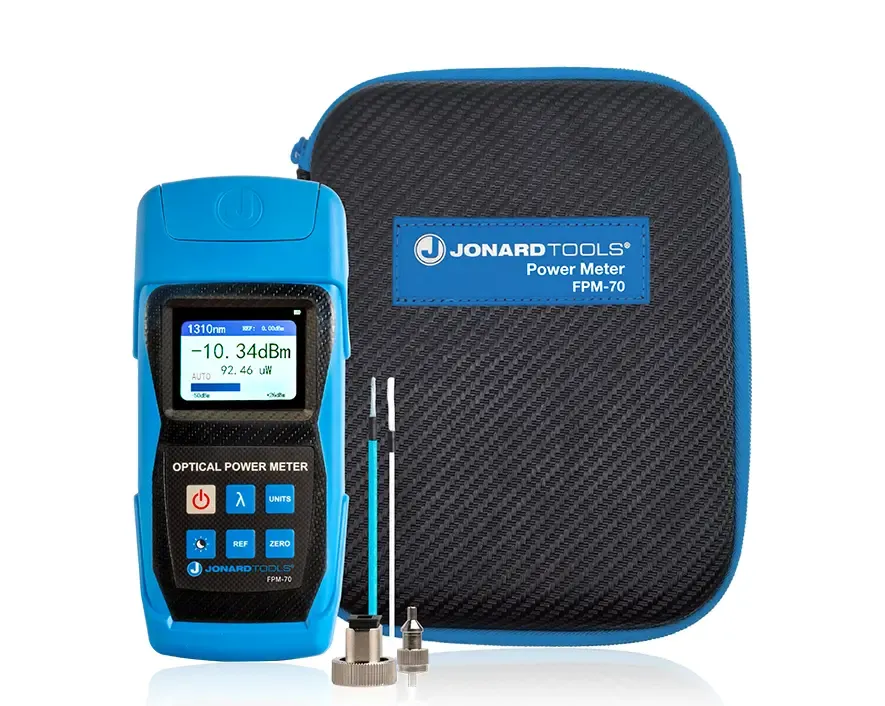

Jonard FPM-70 | Fiber Optic Power Meter (-70 to +6 dBm) with FC/SC/LC Adapters
Measures both the absolute optical power and relative power loss in fiber optic cables. Power measurement range (+10 ~ -70 dBm) with FC/SC/LC Adapters.
Jonard - FPM-70 - Features
- Measures a wide variety of wavelengths
- Determines absolute or relative power
- Intelligent backlit control reduces power consumption
- Auto-off function can be turned on or off
- Automatic wavelength detection function
- FC, SC, & FC-LC adapters included
- Color LCD Display
- Backside Kickstand
Specifications
Specifications
Jonard - FPM-70 - Specifications
| Manufacturer Part Number | FPM-70 |
|---|---|
| Brand Name | Jonard |
| Detector Type | InGaAs |
| Wavelength Test Range (nm) | 800 ~ 1700 |
| Measurement Range (dBm) | +10 ~ -70 |
| Default Calibration Wavelength (nm) | 850/980/1300/1310/1490/1550/1625/1650 |
| Minimum Display Resolution (dB) | 0.01 |
| Linearity (dB) | ? 0.12 |
| Uncertainty | ± 0.2 |
| Frequency Identification (Hz) | CW, 270 Hz, 330 Hz, 1000 Hz, 2000 Hz |
| Measurement Unit | dBm, dB, xW |
| Optical Connector | FC, SC |
| Wavelength Identification | Yes, using our FLS-50 or FLS-55 |
| Display Size | 2.4-inch LCD |
| Power Supply | 1.5V*3 AA alkaline batteries |
| Continuous Working time | ?50 hr |
