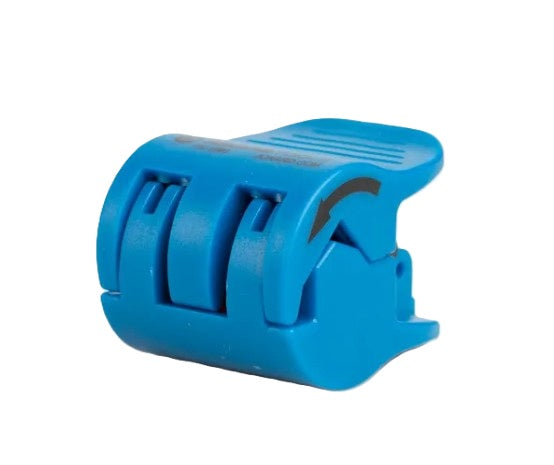

Jonard FS-1080 | Thin-walled Microduct Scoring Tool, 5–16 mm
Regular price
$35.67
Unit price
Brand: Jonard
|
SKU:
10686006
Regular price
$35.67
Unit price
Description
Description
Jonard FS-1080 | Thin-walled Microduct Scoring Tool, 5–16 mm
The Jonard Tools Microduct Scoring Tool is perfect for scoring and ringing 10/8 and 12/10 fiber optic microducts without damaging the fibers inside.
Jonard - FS-1080 - Features
- Unique design allows you to score and ring 10/8, 12/10, and 14/12 fiber optic microducts without any adjustments to the tool
- Perfect for microducts 5 mm-16 mm (0.20"-0.63") in diameter with a wall thickness of 1.0 mm-1.3 mm

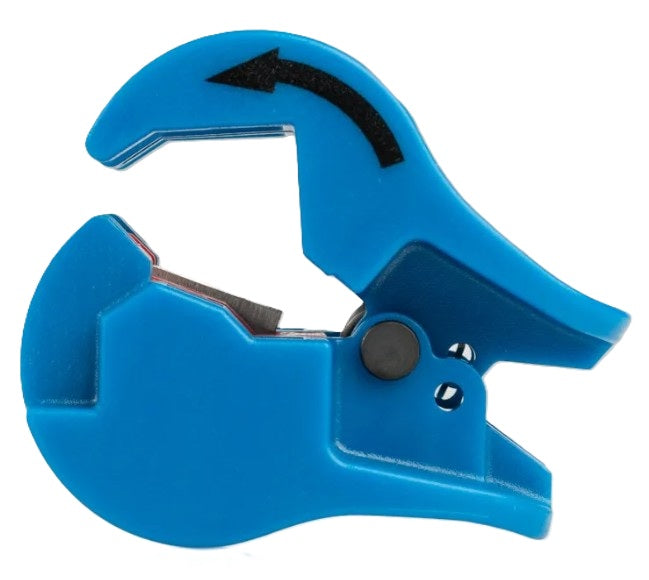

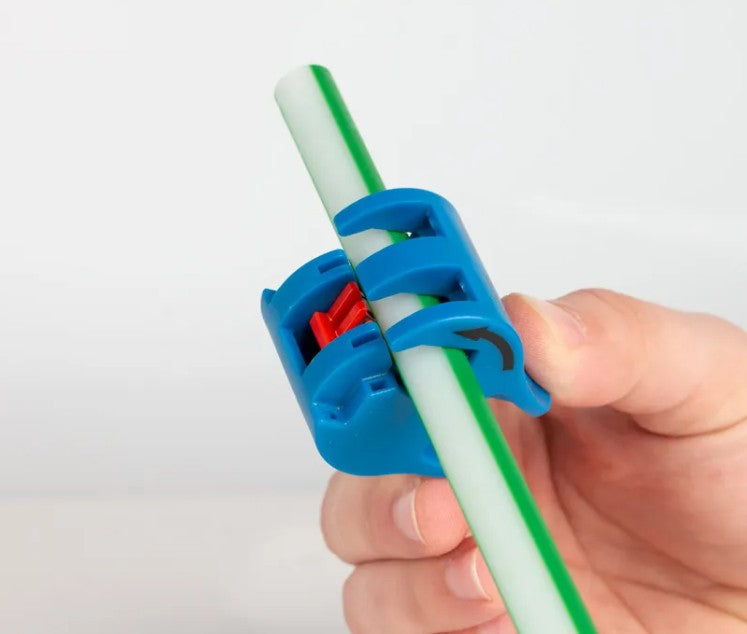

- Wide jaws curl around the microducts, holding them in place while scoring
- Spring-loaded butterfly clip makes it easy to open and position it perfectly on microducts
- Includes the FS-1080RB blade for 10/8 and 12/10 but also compatible with FS-1416RB blades for 14/10 and 16/10 fiber optic microducts
Specifications
Specifications
Jonard - FS-1080 - Specifications
| Manufacturer Part Number | FS-1080 |
|---|---|
| Manufacturer | Jonard |
| Item Description | Thin-walled Microduct Scoring Tool, 5–16 mm |
| Microduct Wall Thickness | 1.0 mm-1.3 mm (0.039"-0.051") |
| Microduct Diameter Range | 5.0-16.0 mm (0.20"-0.63") |
| Blade Depth | 1 mm (0.039") |
| Dimensions | 1.84 in x 1.2 in x 1.4 in (4.67 cm x 3.05 cm x 3.56 cm) |
| Weight | 0.08 lb (36.32 g) |
| UPC # | 811490017917 |
