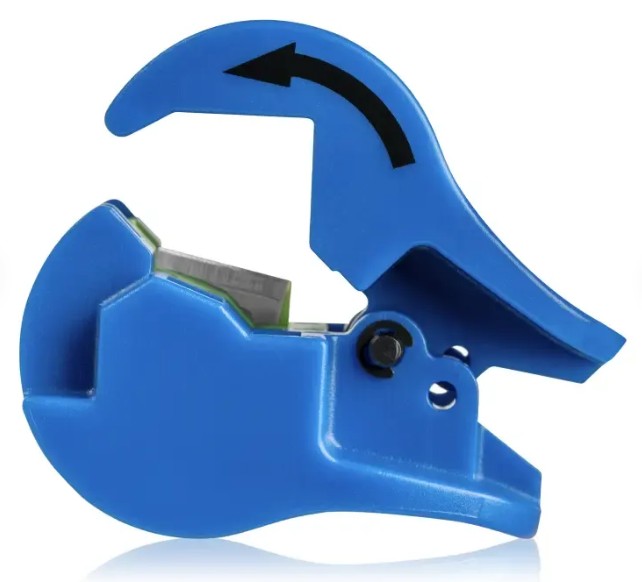

Jonard FS-2025 | Precision Microduct Scoring Tool, 5–16 mm
Regular price
$35.67
Unit price
Brand: Jonard
|
SKU:
10686008
Regular price
$35.67
Unit price
Description
Description
Jonard FS-2025 | Precision Microduct Scoring Tool, 5–16 mm
The Jonard Tools Microduct Scoring Tool is perfect for scoring and ringing 10/8 and 12/10 fiber optic microducts without damaging the fibers inside.
Jonard - FS-2025 - Features
- Unique design allows you to score and ring 14/10 and 16/10 fiber optic microducts without any adjustments to the tool
- Precisely scores microducts from 5 mm-16 mm (0.20"-0.63") in diameter with a wall thickness of 2.0 mm-2.5 mm

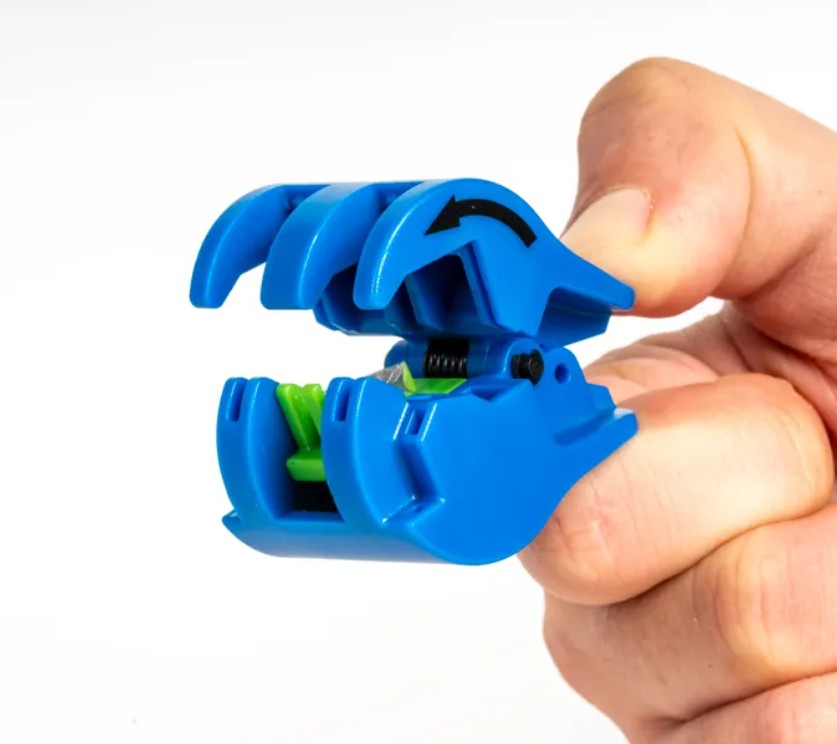

- Wide jaws curl around the microducts, holding them in place while scoring
- Spring-loaded butterfly clip makes it easy to open and position it perfectly on microducts
- Includes the FS-2025RB blade, but also compatible with FS-1080RB and FS-1416RB blades for other blade depths
- Replacement Blades available: FS-2025RB, FS-1080RB, and FS-1416RB
Specifications
Specifications
Jonard - FS-2025 - Specifications
| Manufacturer Part Number | FS-2025 |
|---|---|
| Manufacturer | Jonard |
| Item Description | Precision Microduct Scoring Tool, 5–16 mm |
| Microduct Wall Thickness | 2.0-2.5 mm (0.079"-0.098") |
| Microduct Diameter Range | 7.0-16.0 mm (0.20"-0.63") |
| Blade Depth | 2.0 mm (0.079") |
| Dimensions | 1.79 in x 1.38 in x 1.29 in (4.53 cm x 3.49 cm x 3.28 cm) |
| Weight | 0.07 lb (29.964 g) |
| UPC # | 810132435959 |
