Brand: Jonard
|
SKU:
10686029

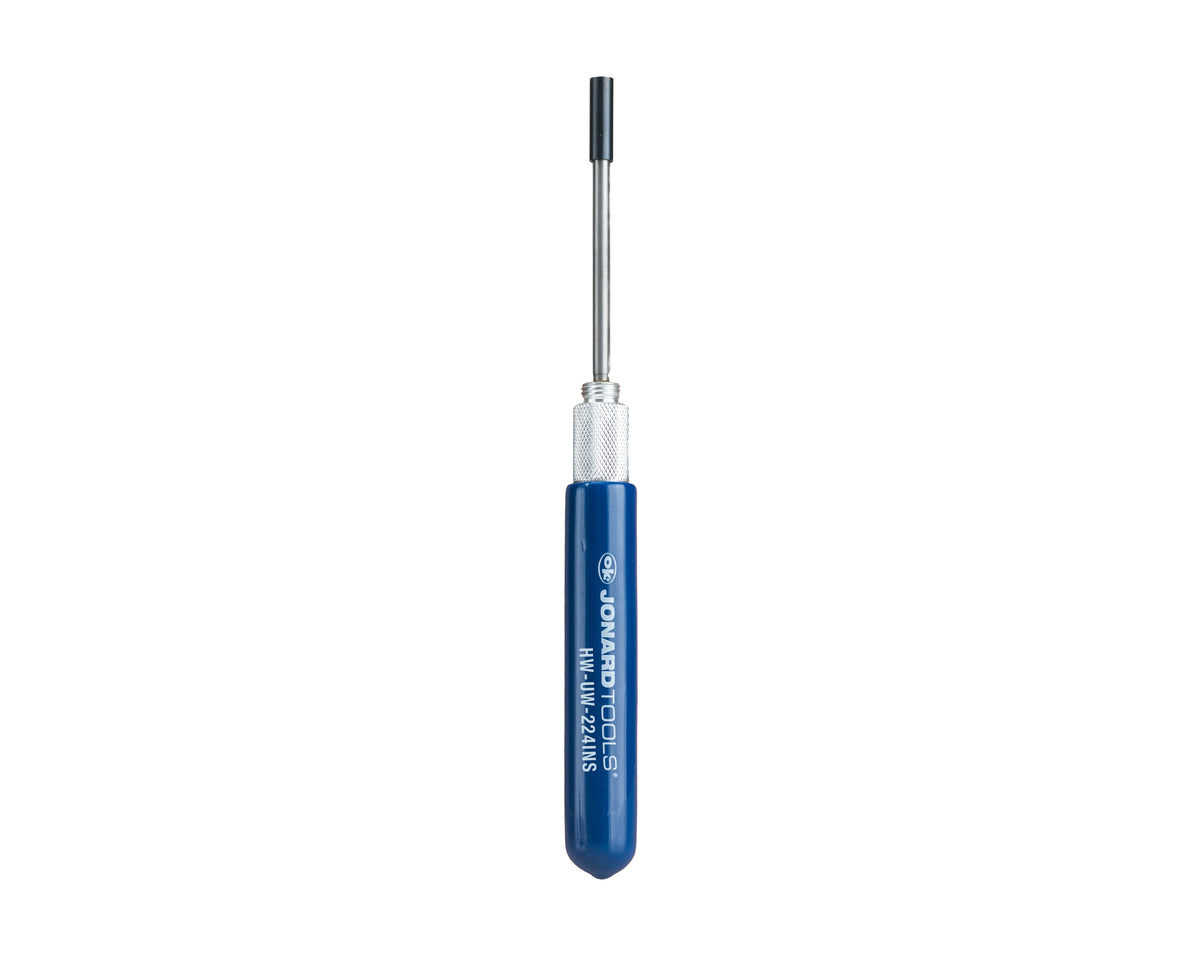

Jonard HW-UW-224INS | Wrap-Unwrap Tool, 22-24 AWG Insulated
Regular price
$142.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Jonard HW-UW-224INS | Wrap-Unwrap Tool, 22-24 AWG Insulated
Regular price
$142.11
Unit price
Description
Description
Jonard HW-UW-224INS | Wrap-Unwrap Tool, 22-24 AWG Insulated
Designed to wrap or unwrap wire on binding posts, this hand wrap tool is perfect for use on 22-24 AWG (0.65 mm - 0.50 mm diameter) wire. This hand wrap tool also features the following:
Jonard - HW-UW-224INS - Features
- Insulated handle for dielectric protection
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
- Switch from Wrapping to Unwrapping quickly by changing the cap from one end to the other
Specifications
Specifications
Jonard - HW-UW-224INS - Specifications
| Wrap Type | Regular |
|---|---|
| Wrap Wire Gauge | 22-24 AWG (0.65-0.50 mm) |
| Wrap Terminal Hole Diameter | 0.075" (1.90 mm) |
| Wrap Terminal Hole Depth | 1" (25.40 mm) |
| Wrap Outside Diameter | 0.218" (5.54 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Unwrap Wire Gauge | 20-26 AWG (0.80-0.40 mm) |
| Unwrap Terminal Hole Diameter | 0.070" (1.77 mm) |
| Unwrap Terminal Hole Depth | 1" (25.40 mm) |
| Unwrap Outside Diameter | 0.156" (3.96 mm) |
| Handle Type | Insulated |
| Dimensions | 7.13 in x 0.63 in x 0.63 in (18.1 cm x 1.59 cm x 1.59 cm) |
| Weight | 0.1 lb (44.946 g) |
| UPC # | 811490015364 |
