Jonard HW-UW-30 | Wrap-Unwrap Tool, 30 AWG
Regular price
$152.08
Unit price
Brand: Jonard
|
SKU:
10686033
Regular price
$152.08
Unit price
Description
Description

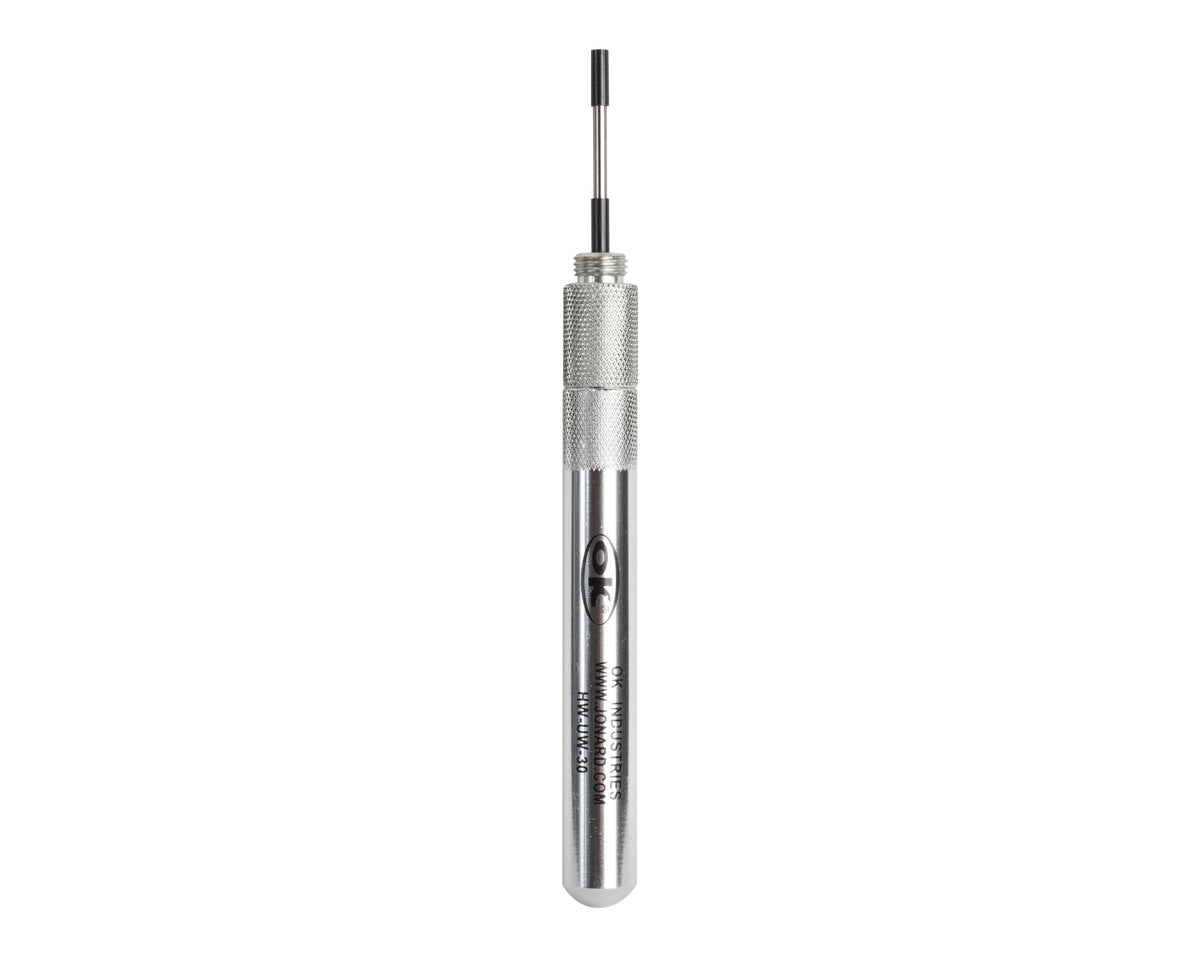

Jonard HW-UW-30 | Wrap-Unwrap Tool, 30 AWG
Designed to wrap or unwrap wire on binding posts, this hand wrap tool is perfect for use on 30 AWG (0.25 mm diameter) wire. This hand wrap tool also features the following:
Jonard - HW-UW-30 - Features
- For use on 0.025" (0.63 mm) square terminals whose center-to-center of the pins are 0.100" (2.54 mm)
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
- Switch from Wrapping to Unwrapping quickly by changing the cap from one end to the other
Specifications
Specifications
Jonard - HW-UW-30 - Specifications
| Wrap Type | Modified |
|---|---|
| Wrap Wire Gauge | 30 AWG (0.25 mm) |
| Maximum Insulation Diameter | 0.027" (0.69 mm) |
| Wrap Terminal Hole Diameter | 0.036" (0.91 mm) |
| Wrap Terminal Hole Depth | 0.75" (19.05 mm) |
| Wrap Outside Diameter | 0.125" (3.17 mm) |
| Wrap Post Size | 0.025" (0.63 mm) |
| Unwrap Wire Gauge | 24-32 AWG (0.5-0.20 mm) |
| Unwrap Terminal Hole Diameter | 0.038" (0.96 mm) |
| Unwrap Terminal Hole Depth | 1" (25.40 mm) |
| Unwrap Outside Diameter | 0.093" (2.36 mm) |
| Handle Type | Aluminum |
| Dimensions | 5.63 in x 0.5 in x 0.5 in (14.29 cm x 1.27 cm x 1.27 cm) |
| Weight | 0.06 lb (28.602 g) |
| UPC # | 811490013155 |
