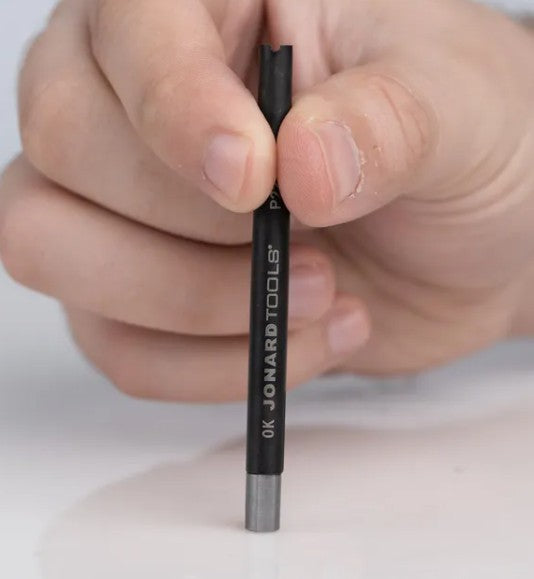

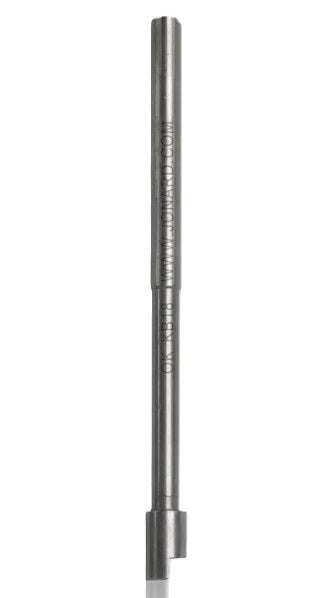

Jonard KB18 | Wire Wrapping Bit, 18 AWG
Regular price
$116.85
Unit price
Brand: Jonard
|
SKU:
10686035
Regular price
$116.85
Unit price
Description
Description
Jonard KB18 | Wire Wrapping Bit, 18 AWG
Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 18 AWG wire around binding posts when used in conjunction with a wire wrapping tool..
Specifications
Specifications
Jonard - KB18 - Specifications
| Manufacturer Part Number | KB18 |
|---|---|
| Manufacturer | Jonard |
| Item Description | Wire Wrapping Bit, 18 AWG |
| Sleeve Part No. | P194LN (sold separately) |
| Wrap Function | Wrap |
| Wrap Type | Regular |
| Wire Gauge | 18 AWG (1 mm) |
| Minimum Terminal Diagonal | 0.060" (1.52 mm) |
| Maximum Terminal Diagonal | 0.073" (1.85 mm) |
| Terminal Hole Diameter | 0.075" (1.9 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Effective Radius | 0.15" (3.81 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Dimensions | 3.13 in x 0.23 in x 0.23 in (7.94 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.02 lb (9.08 g) |
| UPC # | 811490013445 |
