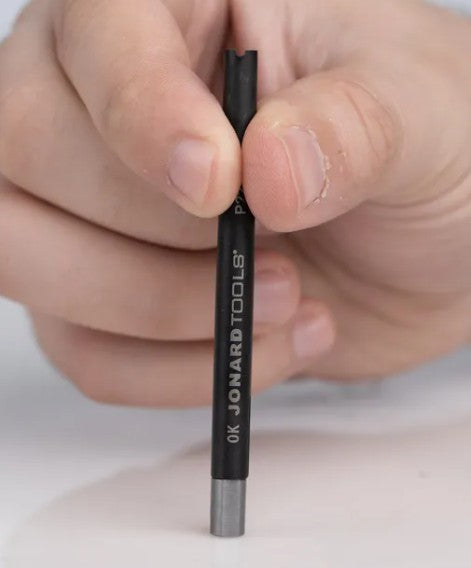

Jonard KB2075 | Wire Wrapping Bit, 20-22 AWG
Regular price
$81.18
Unit price
Brand: Jonard
|
SKU:
10686036
Regular price
$81.18
Unit price
Description
Description
Jonard KB2075 | Wire Wrapping Bit, 20-22 AWG
Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 20-22 AWG wire around binding posts when used in conjunction with a wire wrapping tool..
Specifications
Specifications
Jonard - KB2075 - Specifications
| Manufacturer Part Number | KB2075 |
|---|---|
| Manufacturer | Jonard |
| Item Description | Wire Wrapping Bit, 20-22 AWG |
| Sleeve Part No. | P2224 and P2224INS (sold separately) |
| Wrap Function | Wrap |
| Wrap Type | Regular |
| Wire Gauge | 20-22 AWG (0.80 mm - 0.65 mm) |
| Minimum Terminal Diagonal | 0.042" (1.07 mm) |
| Maximum Terminal Diagonal | 0.073" (1.85 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Terminal Hole Diameter | 0.075" (1.9 mm) |
| Effective Radius | 0.123" (3.12 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Dimensions | 3.13 in x 0.23 in x 0.23 in (7.94 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.02 lb (7.264 g) |
| UPC # | 811490013377 |
