Jonard KB24 | Wire Wrapping Bit, 24 AWG
Regular price
$77.49
Unit price
Brand: Jonard
|
SKU:
10686041
Regular price
$77.49
Unit price
Description
Description

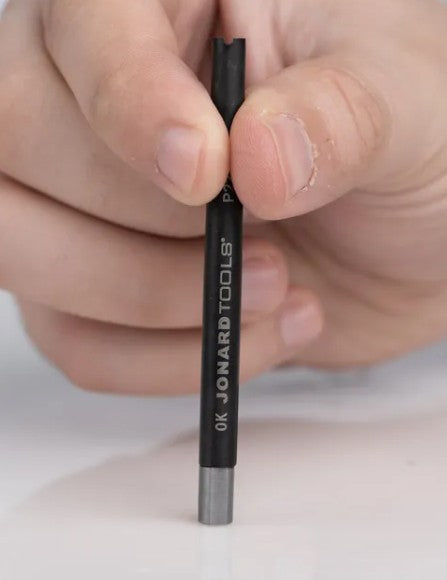

Jonard KB24 | Wire Wrapping Bit, 24 AWG
Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 24 AWG wire around binding posts when used in conjunction with a wire wrapping tool..
Specifications
Specifications
Jonard - KB24 - Specifications
| Manufacturer Part Number | KB24 |
|---|---|
| Manufacturer | Jonard |
| Item Description | Wire Wrapping Bit, 24 AWG |
| Sleeve Part No. | P2426 and P2426INS (sold separately) |
| Wrap Function | Wrap |
| Wrap Type | Regular |
| Wire Gauge | 24 AWG (0.5 mm) |
| Minimum Terminal Diagonal | 0.055" (1.39 mm) |
| Maximum Terminal Diagonal | 0.074" (1.87 mm) |
| Terminal Hole Depth | 0.75" (19.05 mm) |
| Terminal Hole Diameter | 0.075" (1.9 mm) |
| Effective Radius | 0.100" (2.54 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Dimensions | 5.13 in x 0.23 in x 0.23 in (13.02 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.02 lb (7.264 g) |
| UPC # | 811490013230 |
