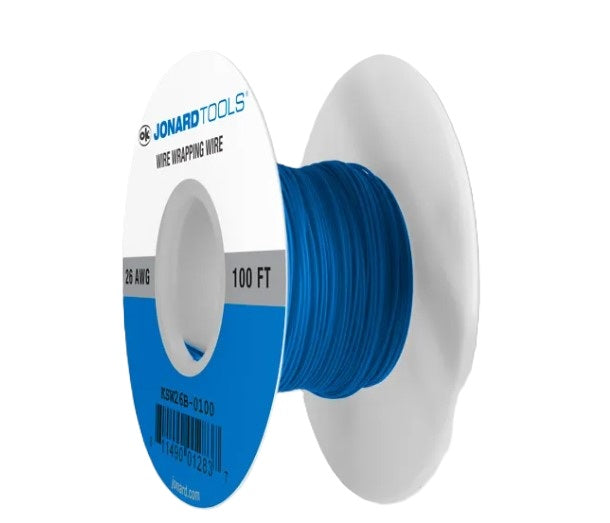

Jonard KSW26B-0100 | 26 AWG Kynar® Wire CSW, Low Strip Force, Blue, 100 ft
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Jonard KSW26B-0100 | 26 AWG Kynar® Wire CSW, Low Strip Force, Blue,...
Description
Description

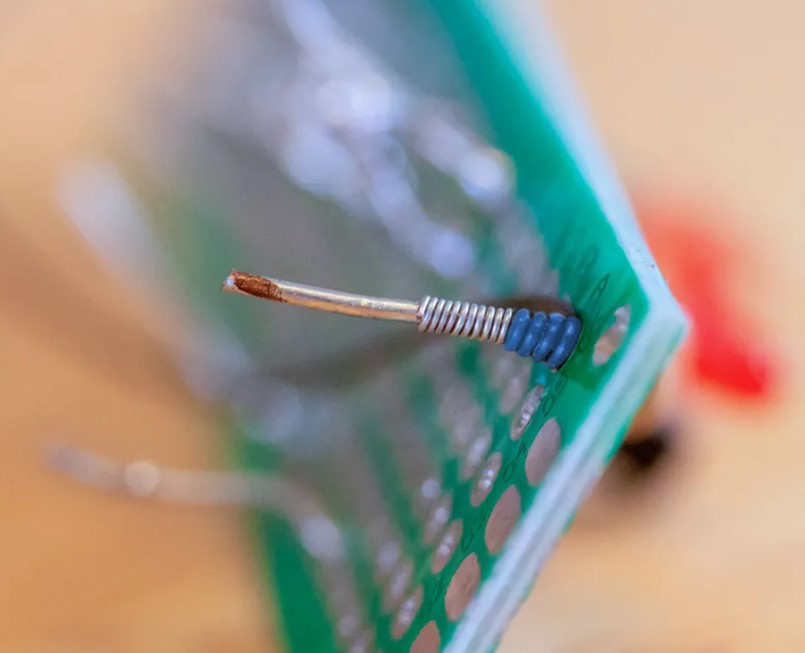

Typically used where flexibility, strength, and low weight is required, Kynar® wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. Additionally, Kynar insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons
Jonard - KSW26B-0100 - Features
- Low strip-force Kynar® insulation is further processed to provide a low strip force for use with CSW bits and sleeves (RoHS Compliant)
- OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility
- Kynar® insulation provides high temperature resistance (up to 105°C) and excellent abrasion resistance
- Meets or exceeds UL 1422 standards
Specifications
Specifications
Jonard - KSW26B-0100 - Specifications
| Manufacturer Part Number | KSW26B-0100 |
|---|---|
| Manufacturer | Jonard |
| Item Description | 26 AWG Kynar® Wire CSW, Low Strip Force, Blue, 100 ft |
| Insulation Type | Low Strip Force Kynar® |
| Insulation Thickness | 0.005" (0.127 mm) |
| Wire Gauge | 26 AWG (0.40 mm) |
| Overall Diameter | 0.027" (0.69 mm) |
| Standards | UL 1422 |
| Voltage | Not Rated |
| Reel Length | 100 ft. (30.48 meters) |
| Dimensions | 2 in x 2 in x 1 in (5.08 cm x 5.08 cm x 2.54 cm) |
| Weight | 0.14 lb (63.56 g) |
| UPC # | 811490012837 |
