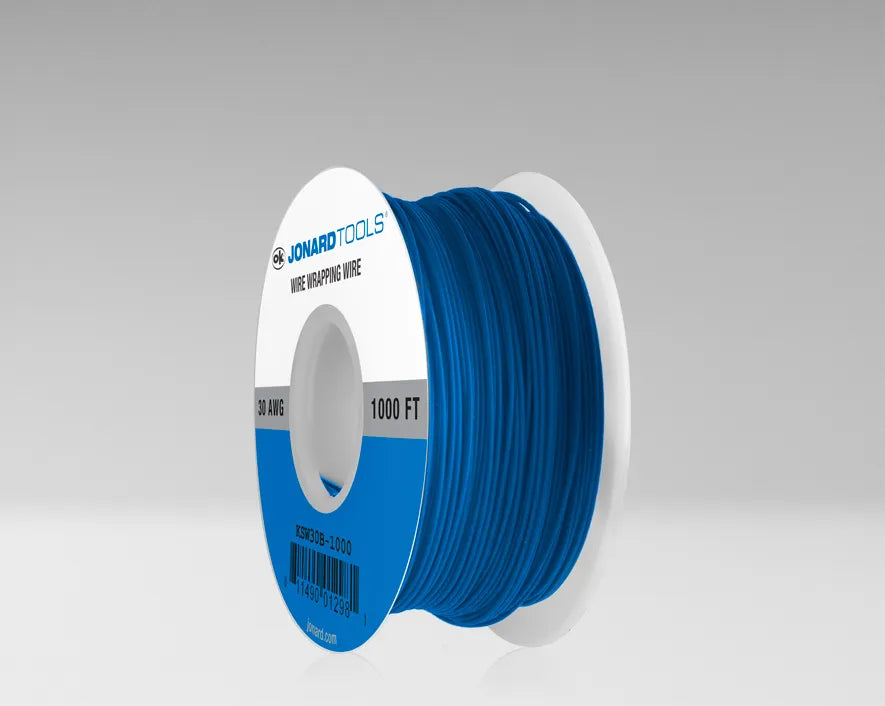

Jonard KSW30B-1000 | 30 AWG Kynar® Wire CSW, Low Strip Force, Blue, 1000 ft
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Typically used where flexibility, strength, and low weight is required, Kynar® wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. It is also commonly used for circuit board prototyping because of its lighter weight and smaller overall diameter. Additionally, Kynar insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons. These properties make Kynar® wire an excellent choice when working in even the harshest environmental applications.
Jonard - KSW30B-1000 - Features
- Low strip-force Kynar® insulation is further processed to provide a low strip force for use with CSW bits and sleeves (RoHS Compliant)
- OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility
- Kynar® insulation provides high temperature resistance (up to 105°C) and excellent abrasion resistance
- Meets or exceeds UL 1423 standards
Specifications
Specifications
Jonard - KSW30B-1000 - Specifications
| Manufacturer Part Number | KSW30B-1000 |
|---|---|
| Brand Name | Jonard |
| Insulation Type | Low Strip Force Kynar® |
| Insulation Thickness | 0.005" (0.127 mm) |
| Wire Gauge | 30 AWG (0.25 mm) |
| Overall Diameter | 0.020" (0.50 mm) |
| Standards | UL 1423 |
| Voltage | Not Rated |
| Reel Length | 100 ft. (30.48 meters) |
| Dimensions | 2 in x 2 in x 2 in (5.08 cm x 5.08 cm x 5.08 cm) |
| Weight | 0.53 lb (240.62 g) |
| UPC # | 811490012981 |
