Jonard MS-6A | Mid Span Slitter for Air Blown Fiber (1.2 mm-3.3 mm)
Regular price
$104.55
Unit price
Brand: Jonard
|
SKU:
10686057
Regular price
$104.55
Unit price
Description
Description

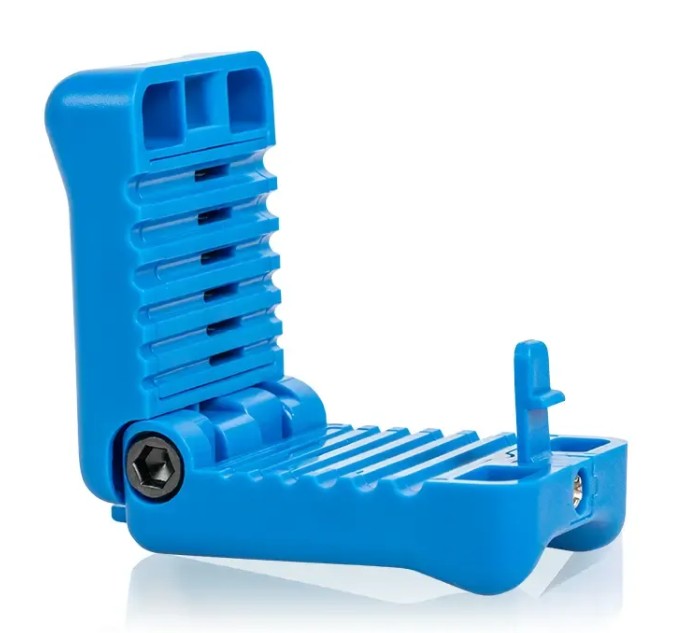

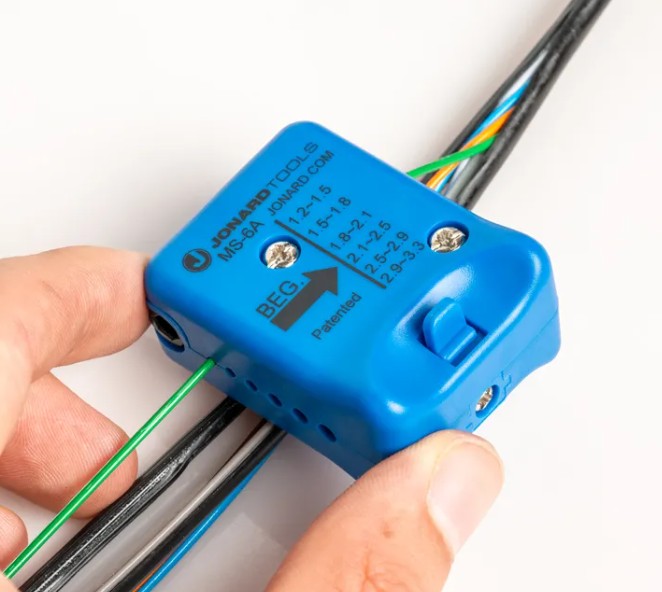

Jonard MS-6A | Mid Span Slitter for Air Blown Fiber (1.2 mm-3.3 mm)
The PATENTED and AWARD-WINNING MS-6A Mid Span Slit Tool is designed to provide easy access to optical fibers in outer jackets and loose buffer tubes of Prysmian Air Blown Fiber cables.
Jonard - MS-6A - Features
- Consists of 6 precision slitting grooves ranging in size from 1.2 mm to 3.3 mm
- Compact design weighing less than 2.5 oz with included tethering hole makes it perfect to use in tight spaces or on the go
- Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
- This tool was specially designed for use on Prysmian Air Blown Fiber (also known as Fassadenkabel), and other similar style cables
Specifications
Specifications
Jonard - MS-6A - Specifications
| Manufacturer Part Number | MS-6A |
|---|---|
| Manufacturer | Jonard |
| Item Description | Mid Span Slitter for Air Blown Fiber (1.2 mm-3.3 mm) |
| Cut Type | Slit |
| Number of Slitting Grooves | 6 |
| Cable Type | Prysmian Air Blown Fiber (ABF) |
| Cable Diameter | 1.2 mm-3.3 mm |
| Dimensions | 2.22 in x 1.52 in x 1.04 in (5.64 cm x 3.86 cm x 2.63 cm) |
| Weight | 0.09 lb (39.044 g) |
| UPC # | 810132437519 |
