Jonard OTDR-1000 | Multi-Function OTDR
Regular price
$1,826.63
Unit price
Brand: Jonard
|
SKU:
10271121
Regular price
$1,826.63
Unit price
Description
Description

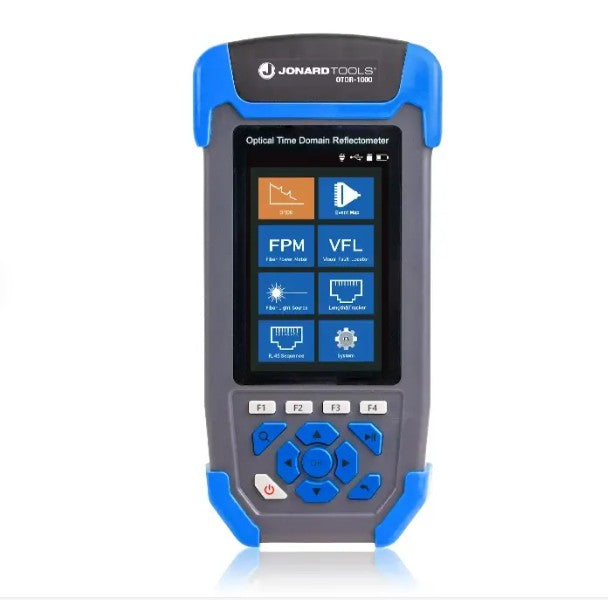

Jonard OTDR-1000 | Multi-Function OTDR
Jonard Tools’ Multi-function OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses. This Multi-function OTDR also features the following:
Jonard - OTDR-1000 - Features
- Includes 8 different functions for testing and evaluating fiber optic and network cables
- Bright 3.5” color LCD screen makes it quick and easy to evaluate data
- Rubberized hard plastic case is shock-proof and drop-proof for maximum durability
- 600 MB Internal storage with MicroSD/TF card slot for additional memory
- Built-in rechargeable lithium ion battery provides power on-the-go
- Can be charged or connected to a computer for data transfer via included micro-USB cable
Specifications
Specifications
Jonard - OTDR-1000 - Specifications
| Wavelengths | 1310nm/1550nm±20nm |
|---|---|
| Fiber Type | G.652 SingleMode Fiber |
| Dynamic Range | 24dB/22dB |
| Event Blind Zone | 3m |
| ATT Blind Zone | 8m |
| Test Range | 500m~60km |
| Pulse Width | 3ns~10us |
| Range Accuracy | ±?1m+Sampling Interval +0.005?×Test Distance? |
| Loss Accuracy | ±0.2dB/dB |
| # of Sampling Points | 16k~128k |
| Sampling Resolution | 0.05m~8m |
| Reflection Accuracy | ±3dB |
| Data Storage | Internal??600?External?TF Card |
| Laser Safety Level | Class IIIA |
| File Format | SOR Standard File Format |
| Included Connectors for OTDR | FC, SC, LC (PC/UPC) |
| Dimensions | 10.5" x 7.5" x 2.5" (26.67 cm x 19.05 cm x 6.35 cm) |
| Weight | 2.06 lb (935.24 g) |
| UPC # | 810053350669 |
