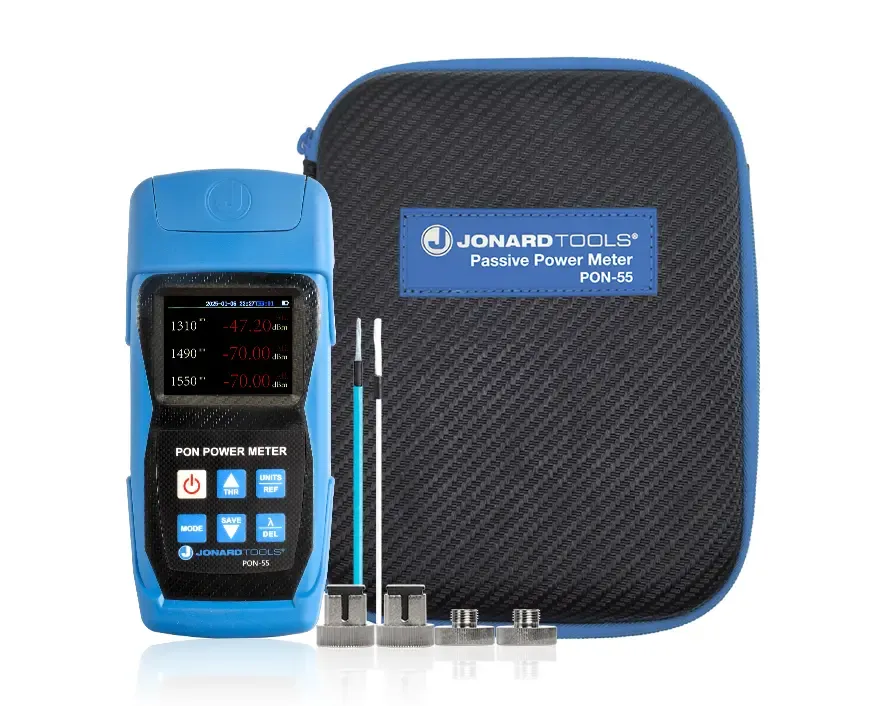

Jonard PON-55 | Passive Optical Network Power Meter for BPON/EPON/GPON, APC
Designed to perform live testing with OLT equipment, this PON Power Meter with APC connectors is perfect for use during FTTx/PON service turn-up or maintenance. It is able to simultaneously test and measure the signal power of voice, data, and video connections, and is essential for the construction and maintenance of PON systems.
Jonard - PON-55 - Features
- Includes APC/FC Adapters and APC/SC Adapters to directly connect to UPC/PC FC and SC fiber connectors
- Analyzes voice, data, and video signals in BPON/EPON/GPON FTTx systems
- Concurrently measures 1310 nm Upstream Burst Signals and 1490/1550 nm Downstream Signal Measurements anywhere in the network
- Three pass, warning, and fail LED indicators to allow you to quickly assess your network's power level
- Supports 1310 nm Upstream Burst Signal and 1490/1550 nm Downstream Signal Measurements
- USB port allows quick transfer of data, and up to 1,000 measurement items can be saved at once
- Optional 10 minute auto-off can be activated or deactivated
- Shatter-resistant sleeve protects it from accidental falls or other damage
- Included software allows you to set the thresholds, transfer data, and calibrate the wavelength from your PC
Specifications
Specifications
Jonard - PON-55 - Specifications
| Manufacturer Part Number | PON-55 |
|---|---|
| Brand Name | Jonard |
| Network Types | BPON/EPON/GPON |
| Connector Types | FC/SC (APC) |
| Wavelengths | 1310 nm, 1490 nm, 1550 nm |
| Measurement Range | -35 dBm?+10 dBm @ 1310/1490 nm, -35dBm?+10dBm @ 1550 nm |
| Max Output Power | 15 dBm @ 1310/1490/1550 nm |
| Detector Type | InGaAs |
| Connatural Uncertainty (dB) | ±0.5 dB |
| Linearity (dB) | ±0.1 dB |
| Batteries | (3) 1.5V AA |
| Battery Life | 90 Hours |
| Operation Temperature | -10??60? |
| Dimensions | 6.25" x 9" x 2.8" (15.88 cm x 22.86 cm x 7.11 cm) |
| Tool Weight | 0.93 lb (0.423 kg) |
| Weight | 0.11 lb (49.94 g) |
