Jonard RG6-10 | RG6 Connectors (Pack of 10)
Regular price
$12.30
Unit price
Brand: Jonard
|
SKU:
10686462
Regular price
$12.30
Unit price
Description
Description

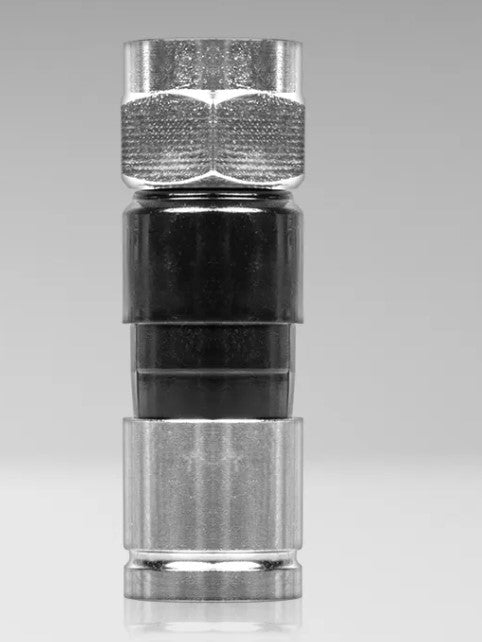

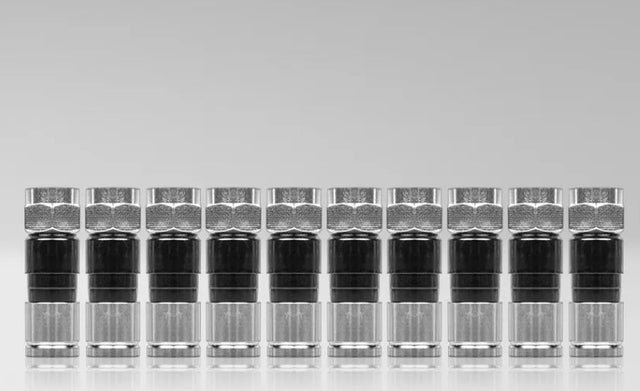

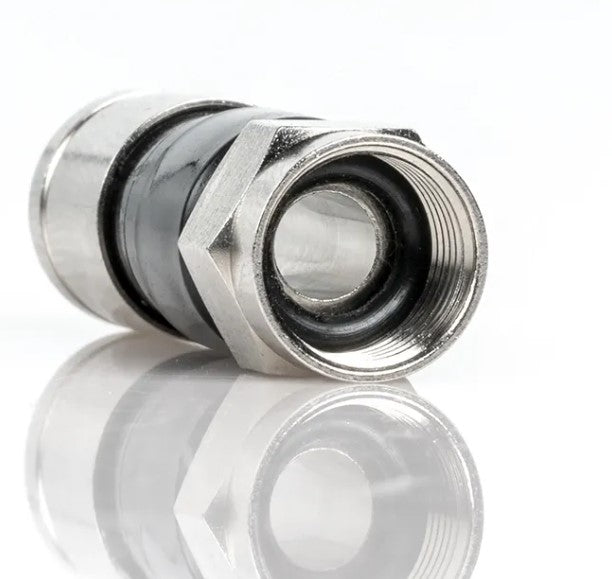

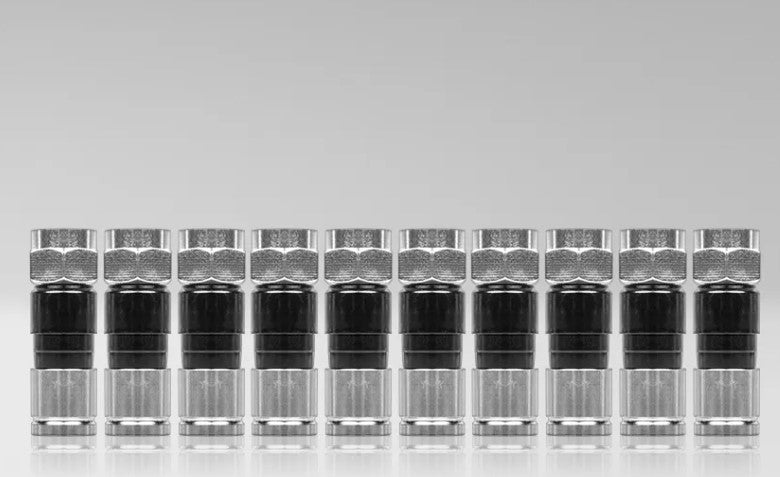

Jonard RG6-10 | RG6 Connectors (Pack of 10)
These RG6 connectors are universal compression connectors, ideally suited for professional and consumer use. The all-metal design of the connector body and nut allows for unparalleled electrical and mechanical performance
Jonard - RG6-10 - Features
- Perfect for terminating cables for satellite, cable TV, and cable modems
- The universal one-piece, all-metal design works with Standard, Trishield, and Quadshield RG6 cables
- Detachably coupled, advanced polymer compression system compresses the connector perfectly each time
- Triple internal weather sealing prevents moisture from entering cable without the use of an external weather grommet
- Standard 5/16" - 1/4" cable preparation using industry-standard preparation tools
Specifications
Specifications
Jonard - RG6-10 - Specifications
| Manufacturer Part Number | RG6-10 |
|---|---|
| Manufacturer | Jonard |
| Item Description | RG6 Connectors (Pack of 10) |
| Connector Type | Q II F-Type Compression Connector (Series 6 Universal Design) |
| Standards | IEC 60169-24 |
| Temperature Range | -40?+60? |
| Vibration | 100 m/s² (10?500Hz) |
| Impedance | 75 ? |
| Frequency Range | DC?1GHz |
| Working Voltage | 170V Max |
| Withstand Voltage | 500V (RMS valid value of sea level) |
| Center Contact Resistance | ? 10 m? |
| Outer Contact Resistance | ? 5 m? |
| Durability | ?500 cycles |
