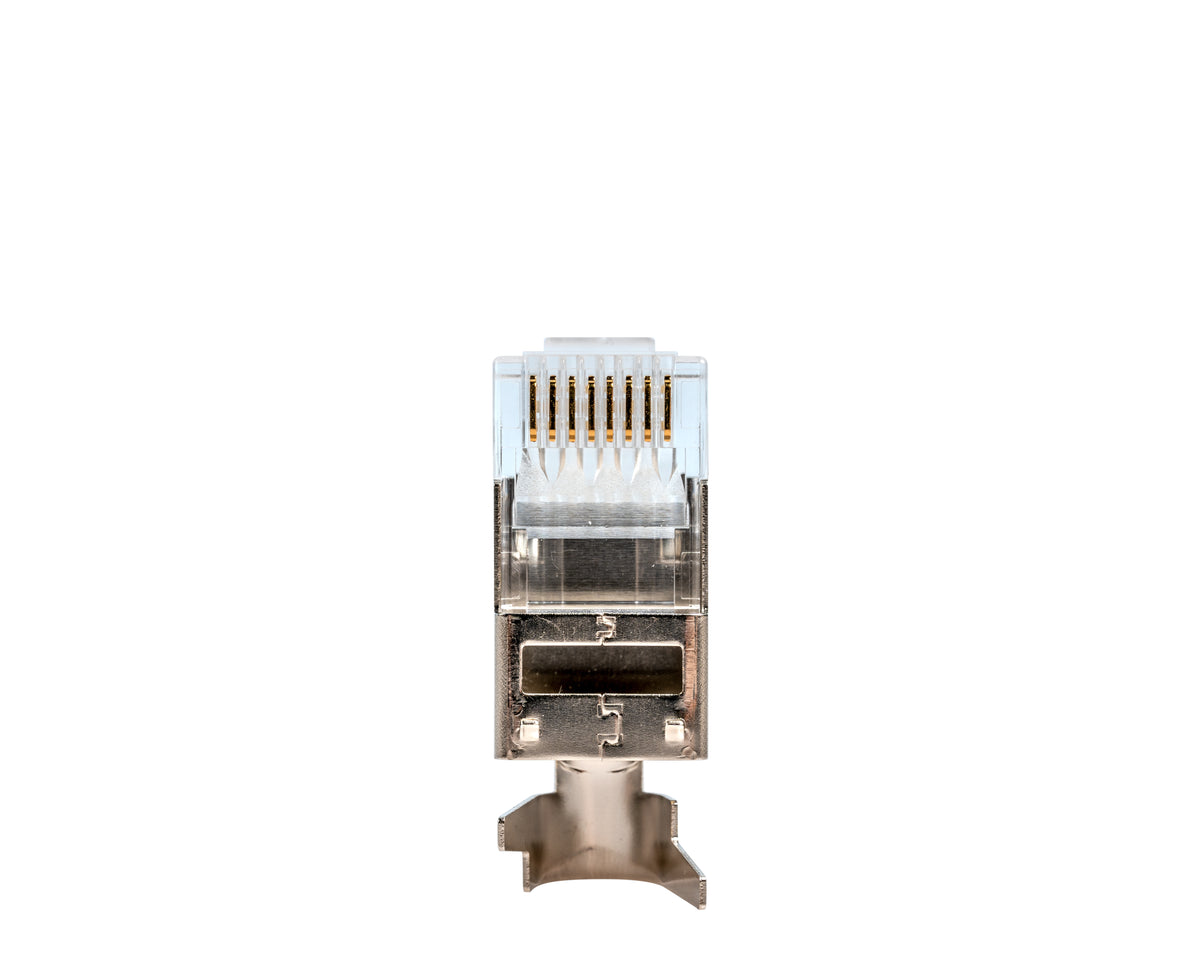

Jonard RJ456A-SC | Shielded RJ45 Connector with Crimp Tail for CAT6...
Description
Description
The Jonard Tools CAT6A RJ45 Pass-Through Connectors are used by network installers/technicians in order to terminate CAT6e, CAT6A, and CAT7A network cables with a pass-through crimper. They are used in households and businesses and are ideal for terminating a round network cable or even replacing an existing connector. These connectors feature the following: Connectors are shielded with nickel-plated brass to reduce damage if the cable is accidently pulled 50 ?in gold plating on contact surfaces provides greater signal quality than the competition Tripoint-type prongs allow you to use stranded or solid CAT6e, CAT6A, and CAT7 cables Simplify twisted pair network cable termination by allowing the wires to pass through the connector Advantage of the pass-through feature is that you do not have to measure and cut the wires before termination, which can lead to having poor connection and signal loss Clear housing allows the operator to see the wire pairs easily
Jonard - RJ456A-SC - Features
- Connectors are shielded with nickel-plated brass to reduce damage if the cable is accidently pulled
- 50 ?in gold plating on contact surfaces provides greater signal quality than the competition
- Tripoint-type prongs allow you to use stranded or solid CAT6e, CAT6A, and CAT7 cables
- Simplify twisted pair network cable termination by allowing the wires to pass through the connector
- Advantage of the pass-through feature is that you do not have to measure and cut the wires before termination, which can lead to having poor connection and signal loss
Specifications
Specifications
Jonard - RJ456A-SC - Specifications
| Number of Connectors | 100 |
|---|---|
| Cable Type | CAT6e, CAT6A and CAT7 |
| Cable Diameter | 26 - 23 AWG (5 - 8 mm) |
| Connector Type | Three-prong RJ45 |
| Plating Thickness | 50 micro-inches |
| Housing Material | Polycarbonate, Nickel-plated Brass |
| Standards | ANSI/TIA-568-C.2, UL 1863, FCC Part 68 subpart F |
| Operating Temperature | -10°C to 60°C |
| Dimensions | 10 in x 8 in x 0 in (25.4 cm x 20.32 cm x 0 cm) |
| Weight | 0.93 lb (422.22 g) |
| UPC # | 810053351932 |
