Jonard SPCO-1 | SPARC™ Fusion Splicer, Core Alignment
Regular price
$9,449.04
Unit price
Brand: Jonard
|
SKU:
10686098
Regular price
$9,449.04
Unit price
Description
Description

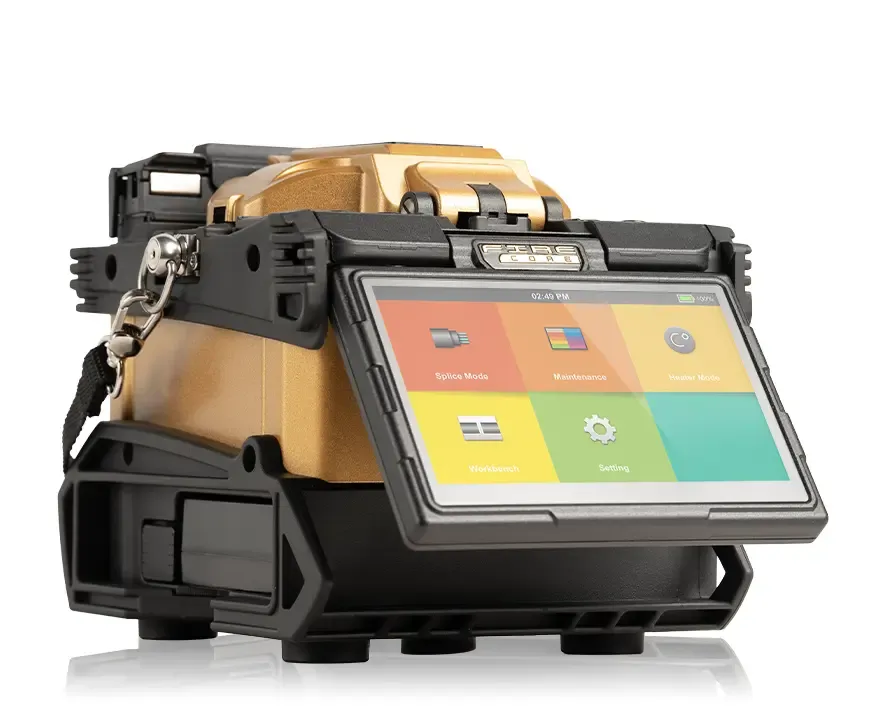

Jonard SPCO-1 | SPARC™ Fusion Splicer, Core Alignment
The SPARC Core Alignment Fusion Splicer is an advanced Core Alignment Fusion Splicer. It ensures impeccable fiber splicing precision, reliability, and efficiency. Engineered for fiber optic professionals, it combines rapid splicing times with cutting-edge features, offering a seamless and dependable splicing experience even in challenging environments.
Jonard - SPCO-1 - Features
- Splices fiber optic cables in as little as 4 seconds
- Pressure Heater Technology reduces heating time to only 9 seconds
- Versatile fiber holder to easily switch between standard and loose-tube fibers
- Improved lighting for higher visibility in dark settings
- Intuitive full touch screen for enhanced user experience
- 7000 mAh battery provides up to 400+ cycles (splicing and heating) on one charge
- Rugged design with water resistance (IPx2), shock resistance (drop tested from 30"), and dust resistance (IP5X)
- On-board memory stores up to 20,000 splice data or 10,000 images
Specifications
Specifications
Jonard - SPCO-1 - Specifications
| Manufacturer Part Number | SPCO-1 |
|---|---|
| Brand Name | Jonard |
| Alignment Method | Core Alignment |
| Number of Fibers | Single |
| Applicable Fibers | SM (ITU-T G.652& T G.657) / MM (ITU-T G.651) / DS (ITU- T G.653) / NZDS (ITU-T G.655) |
| Coating Diameter | 100 µm - 3 mm |
| Cladding Diameter | 80 - 150 µm |
| Cleave Length | 5 - 16 mm |
| Typical Splice Loss | SM: 0.01dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.01dB |
| Splice Time | Quick mode: Avg. 4 sec / SM mode: Avg. 5 sec / Auto mode: Avg. 7 sec |
| Splice Programs | Max 128 modes |
| Automatic Calibration | Automatic Arc Calibration by air pressure & temperature |
| Electrode Life Span | 6000 Arc Discharges |
| Heating Programs | Max 32 modes |
| Heating Time | Quick: 9s / Average: 13s |
| Protection Sleeve Length | 20 mm - 60 mm |
| Dimensions | 6.5" x 6.2" x 6" (16.51 cm x 15.75 cm x 15.24 cm) |
| Weight | 5.2 lbs (2358.68 g) |
| UPC # | 810132437922 |
