Jonard SPRI-1 | SPARC™ Fusion Splicer, Ribbon Fiber
Regular price
$13,442.44
Unit price
Description
Description

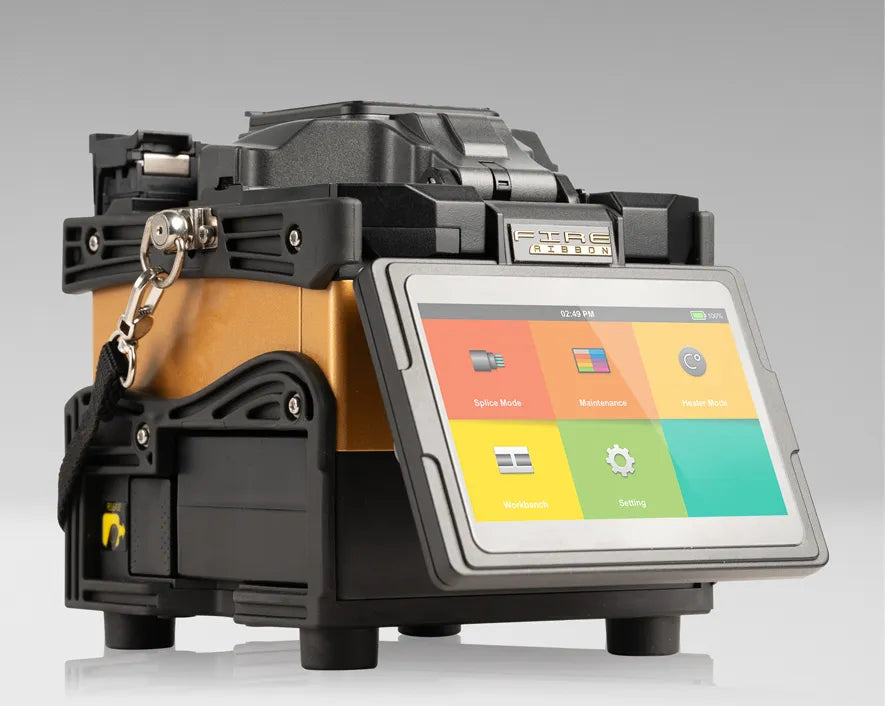

Jonard SPRI-1 | SPARC™ Fusion Splicer, Ribbon Fiber
The SPARC core Alignment Fusion Splicer is an advanced Ribbon Fiber Fusion Splicer. It ensures impeccable fiber splicing precision, reliability, and efficiency. Engineered for fiber optic professionals, it combines rapid splicing times with cutting-edge features, offering a seamless and dependable splicing experience even in challenging environments.
Jonard - SPRI-1 - Features
- Splices fiber optic cables in as little as 15 seconds for ribbon fiber or 9 seconds for single fibers
- Pressure Heater Technology reduces heating time to only 20 seconds
- Versatile fiber holders to easily switch between different sizes of ribbon fibers
- Improved lighting for higher visibility in dark settings
- Intuitive full touch screen for enhanced user experience
- 9000 mAh battery provides up to 220 cycles (splicing and heating) on one charge
- Rugged design with water resistance (IPx2), shock resistance (drop tested from 30"), and dust resistance (IP5X)
- On-board memory stores up to 5,000 test results
- Product has been independently tested to meet ETL Listed standards
Specifications
Specifications
Jonard - SPRI-1 - Specifications
| Manufacturer Part Number | SPRI-1 |
|---|---|
| Brand Name | Jonard |
| Alignment Method | Core Alignment |
| Number of Fibers | Up to 12 |
| Applicable Fibers | SM (ITU-T G.652& T G.657) / MM (ITU-T G.651) / DS (ITU- T G.653) / NZDS (ITU-T G.655) |
| Compatible Fiber | Ribbon : 0.25~0.4 mm / Single: 250 ?m & 900 ?m |
| Cladding Diameter | 125 µm |
| Cleave Length | 10 - 13 mm |
| Typical Splice Loss | SM: 0.01dB / MM: 0.01dB / OS: 0.03dB / NZDS: 0.03dB / G.657: 0.01db |
| Splice Time | Quick Mode: Avg. 4 sec / SM Mode: Avg. 5 sec / Auto Mode: Avg. 7 sec |
| Splice Programs | Max 100 modes |
| Automatic Calibration | Automatic Arc Calibration by air pressure & temperature |
| Electrode Life Span | 1500 Arc Discharges |
| Heating Programs | Max 32 modes |
| Heating Time | Quick: 9s / Average: 13s |
| Protection Sleeve Length | 20 mm - 60 mm |
| Dimensions | 6.8" x 6.5" x 6.5" (17.27 cm x 16.51 cm x 16.51 cm) |
| Weight | 6 lb (2721.55 g) |
| UPC # | 810132438004.0 |
