Jonard TSAB-40 | Thermal Stripper, Adjustable Blade
Regular price
$3,796.09
Unit price
Brand: Jonard
|
SKU:
10686122
Regular price
$3,796.09
Unit price
Description
Description

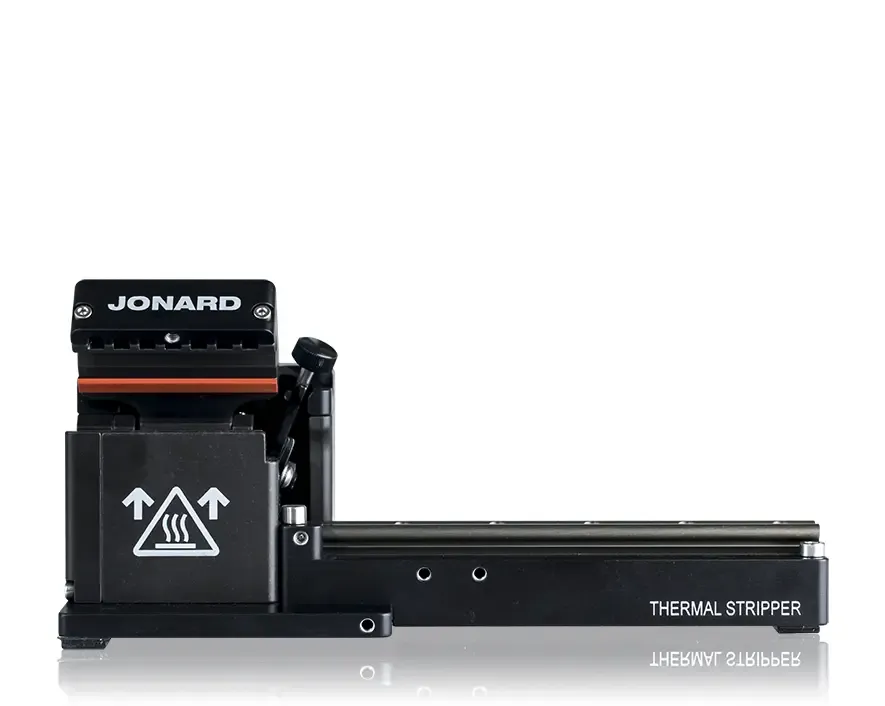

Jonard TSAB-40 | Thermal Stripper, Adjustable Blade
Designed to thermomechanically remove coatings from optical fibers with cladding, this adjustable thermal stripper is perfect for stripping extremely difficult or baked-on coatings with ease.
Jonard - TSAB-40 - Features
- Heater is adjustable up to 200°C, far hotter than any competing product
- Has the ability to remove some fluoroacrylate undercoatings using high temperature
- Adjustable temperature and time settings allow it to adapt to a wide range of acrylate coatings and cladding sizes
- Supports optical fibers with cladding diameters from 30 µm to 1000 µm, with buffer diameters up to 1200 µm, including 250 µm, 400 µm, and 900 µm coated fibers
- Compact and low-maintenance benchtop design makes this easy and convenient to use
- Supports Fitel, Fujikura, and Ericsson fiber holder platforms, and a Universal Clamp for LDF or any other type of fiber (each sold separately)
- Product has been independently tested to meet ETL Listed standards
- Includes: Adjustable Thermal Stripper, Power Supply, Power Cord, Cleaning Brush
Specifications
Specifications
Jonard - TSAB-40 - Specifications
| Manufacturer Part Number | TSAB-40 |
|---|---|
| Brand Name | Jonard |
| Blade Type | Adjustable |
| Supported Fiber Buffers | ? 1200 µm |
| Supported Fiber Types | 30 µm-1000 µm cladding |
| Adjustable Temperature Range | 60-200°C, or ambient |
| Adjustable Heat Time Range | 0-30 seconds (2 second increments) |
| External Power Supply | 100-240 VAC, 47-63 Hz |
| Dimensions | 5.1" x 2.9" x 2.8" (129.5 mm x 73.5 mm x 71 mm) |
| UPC # | 811490011243 |
