Jonard UTIC-1632 | Utility Cable Insulation End Chamfer Tool
Regular price
$218.15
Unit price
Brand: Jonard
|
SKU:
10686130
Regular price
$218.15
Unit price
Description
Description

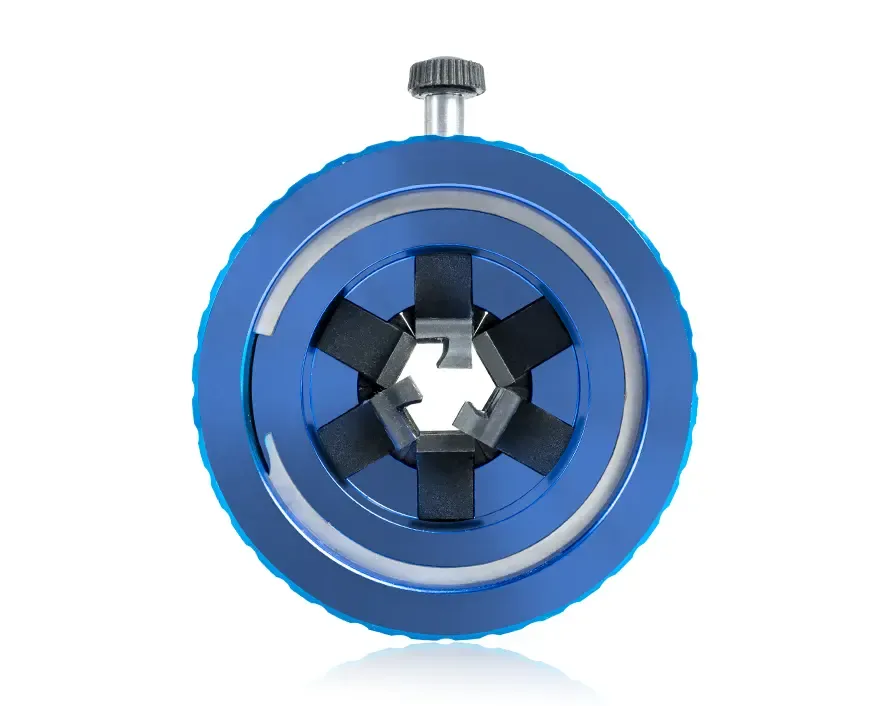

Jonard UTIC-1632 | Utility Cable Insulation End Chamfer Tool
The Jonard Tools UTIC-1632 is engineered to be the ultimate tool for ease and safety when chamfering Medium Voltage Underground Residential Distribution cable insulation. With its highly stable three blade design, it chamfers insulation easily and efficiently.
Jonard - UTIC-1632 - Features
- Uses three specially designed blades for efficient chamfering, improving tool performance and stability.
- Easily adjusts to fit cables from 0.65? to 1.875? (16.5 to 47.6 mm) in diameter for chamfering the XLPE insulation.
- Creates a 45° bevel approximately 0.125? (3.17 mm) deep.
- Blue anodized housing has increased durability and has a sleek, professional look.
- Black oxide coating on the blades prevent rust and corrosion, ensuring longevity and consistent performance.
Specifications
Specifications
Jonard - UTIC-1632 - Specifications
| Manufacturer Part Number | UTIC-1632 |
|---|---|
| Brand Name | Jonard |
| Cable Compatibility | Primary Distribution Underground |
| Voltage Range | 15 kV - 35 kV |
| Cable Diameter | 0.65" - 1.875" (16.5 mm - 47.6 mm) |
| Compatible Material | XLPE Insulation |
| Cable Access | End |
| Removal Method | Chamfer |
| Blade Depth | 0.125" (3.17 mm) at 45° angle |
| Dimensions | 4 in x 3.5 in x 1 in (10.16 cm x 8.89 cm x 2.54 cm) |
| Weight | 0.63 lb (286.02 g) |
| UPC # | 810132436147 |
