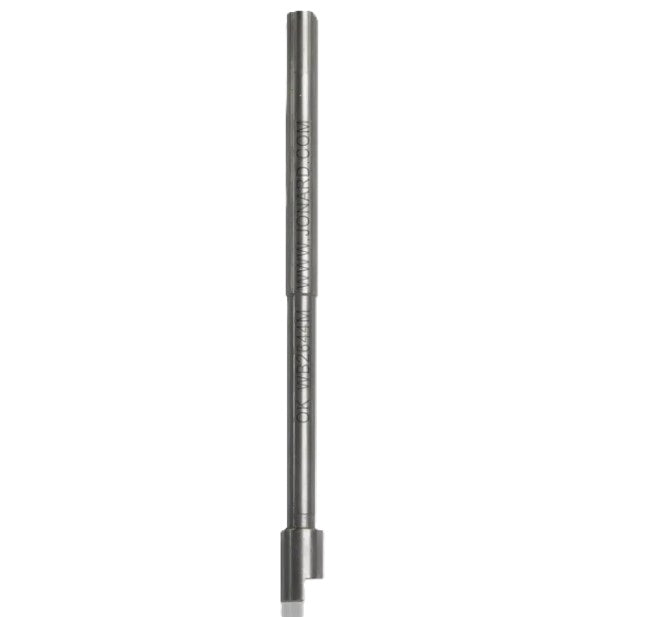

Jonard WB2669M | Modified Wire Wrapping Bit, 26 AWG
Regular price
$81.18
Unit price
Brand: Jonard
|
SKU:
10686139
Regular price
$81.18
Unit price
Description
Description
Jonard WB2669M | Modified Wire Wrapping Bit, 26 AWG
Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 26 AWG wire around binding posts when used in conjunction with a wire wrapping tool..
Specifications
Specifications
Jonard - WB2669M - Specifications
| Manufacturer Part Number | WB2669M |
|---|---|
| Manufacturer | Jonard |
| Item Description | Modified Wire Wrapping Bit, 26 AWG |
| Sleeve Part No. | P2224 and P2426INS (sold separately) |
| Wrap Function | Wrap |
| Wrap Type | Modified |
| Wire Gauge | 26 AWG (0.40 mm) |
| Maximum Insulation Diameter | 0.041" (1.04 mm) |
| Minimum Terminal Diagonal | 0.053" (1.34 mm) |
| Maximum Terminal Diagonal | 0.069" (1.75 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Terminal Hole Diameter | 0.069" (1.75 mm) |
| Effective Radius | 0.109" (2.77 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Dimensions | 3.11 in x 0.23 in x 0.22 in (7.89 cm x 0.59 cm x 0.55 cm) |
| Weight | 0.02 lb (7.264 g) |
| UPC # | 811490013544 |
