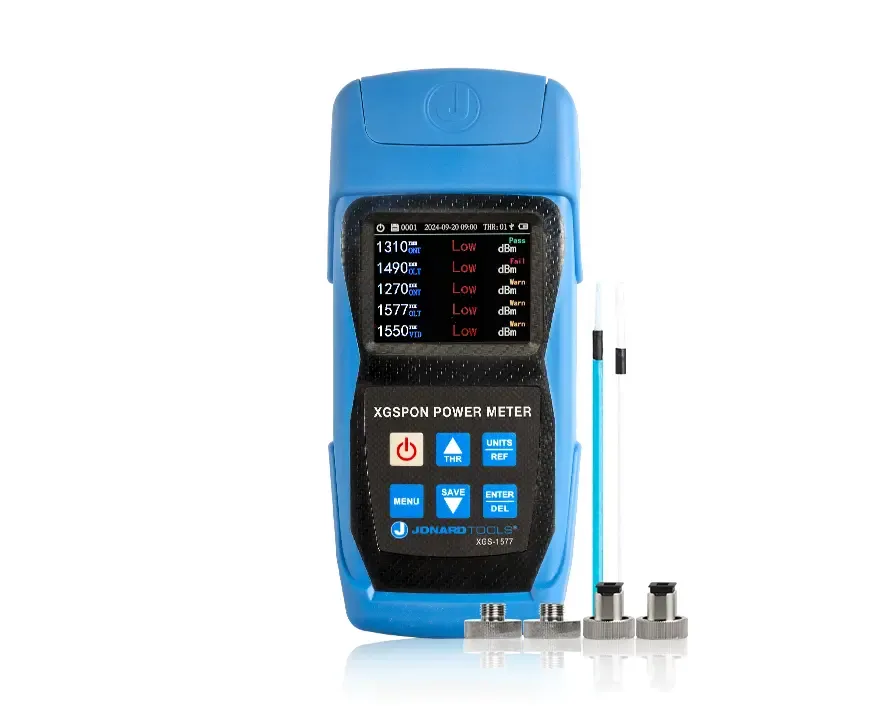

Jonard XGS-1577 | Passive Optical Network Power Meter for XGSPON/XGPON/BPON/EPON/GPON
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Jonard XGS-1577 | Passive Optical Network Power Meter for XGSPON/XG...
Description
Description
The XGS-1577 XGSPON Meter is a high-performance testing tool designed for accurate and simultaneous measurements of upstream and downstream PON wavelengths in optical networks. With support for 1270 nm and 1310 nm upstream wavelengths, and 1490 nm, 1550 nm, and 1577 nm downstream wavelengths, this meter is ideal for EPON, BPON, GPON, XG-PON, and XGS-PON installations and maintenance. Its user-friendly interface, equipped with a bright color LCD screen, allows for easy data reading and navigation. It also features both SC/APC and FC/APC adapters, ensuring compatibility with most optical networks.
Jonard - XGS-1577 - Features
- Supports simultaneous 1270/1310 nm upstream and 1490/1550/1577 nm downstream measurements
- Includes SC/APC and FC/APC adapters to be used on the most commonly used PON networks
- Color LCD screen with adjustable brightness for clear and easy data viewing
- Saves up to 1,000 test results which can be downloaded and evaluated on a PC
- Built-in kickstand provides an ergonomic viewing angle
- Powered by (3) AA batteries that last less than 90 hours, ideal for field use
Specifications
Specifications
Jonard - XGS-1577 - Specifications
| Manufacturer Part Number | XGS-1577 |
|---|---|
| Brand Name | Jonard |
| Network Types | XGSPON/XGPON/BPON/EPON/GPON |
| Connector Types | SC/APC, FC/APC |
| Upstream Wavelengths | 1270±10 nm, 1310±20 nm |
| Downstream Wavelengths | 1490±10 nm, 1550±10 nm, 1577±6 nm |
| Downstream Range | +13?-40 dBm @ 1270/1310 nm |
| Upstream Range | +13 ~ -50 dBm @ 1490 nm, +25 ~ -50 dBm @ 1550 nm, +10 ~ -50 dBm @ 1577 nm |
| Insertion Loss | ?1.5 dB |
| Uncertainty | ?0.5 dB |
| Data Storage | 1000 entries |
| PC Interface | USB-C |
| Auto-Off | Off, 10 min, 20 min, 30 min |
| Batteries | (3) 1.5V AA |
