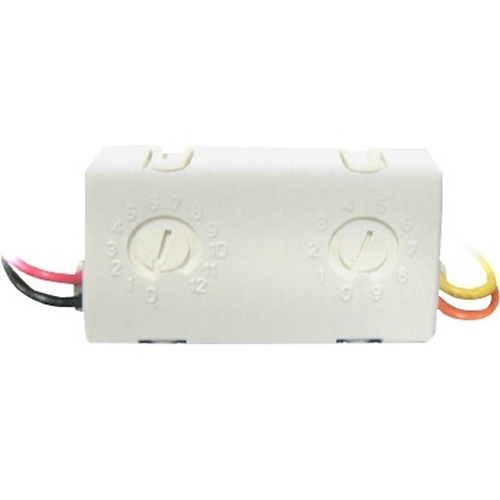

Kidde Commercial FX-IDCWS | Dual Input Waterflow, Supervisory Module
Regular price
$139.86
Unit price
Brand: Kidde commercial
|
SKU:
784539
Regular price
$139.86
Unit price
Description
Description
The FX-IDCWS connects normally open waterflow alarm and supervisory initiating device circuits (IDCs) to the Kidde control panel.
The FX-IDCWS is designed for Class B circuit operation.
The device address is set using the two rotary switches located on the front of the module. Two consecutive addresses are required.
The second address is automatically assigned one number higher that the value set on the rotary switches.
The FX-IDCWS can operate in the following modes:
Waterflow:
Alarm latching delayed: Configures the module for use with only nonretarded waterflow alarm switches. When the NO input contact of an initiating device is closed, an alarm is sent to the control panel, which after a 16 second time delay, generates an alarm signal.
Supervisory:
Supervisory active nonlatching US marketplace
Supervisory active latching Canadian marketplace
Nonlatching: Configures the module for normally open dry contact initiating devices. When the NO input contact of an initiating device is closed, a supervisory signal is sent to the control panel and the supervisory condition is not latched at the module.
Latching: Configures the module for normally open dry contact initiating devices. When the NO input contact of an initiating device is closed, a supervisory signal is sent to the control panel and the supervisory condition is not latched at the module.
The FX-IDCWS is designed for Class B circuit operation.
The device address is set using the two rotary switches located on the front of the module. Two consecutive addresses are required.
The second address is automatically assigned one number higher that the value set on the rotary switches.
The FX-IDCWS can operate in the following modes:
Waterflow:
Alarm latching delayed: Configures the module for use with only nonretarded waterflow alarm switches. When the NO input contact of an initiating device is closed, an alarm is sent to the control panel, which after a 16 second time delay, generates an alarm signal.
Supervisory:
Supervisory active nonlatching US marketplace
Supervisory active latching Canadian marketplace
Nonlatching: Configures the module for normally open dry contact initiating devices. When the NO input contact of an initiating device is closed, a supervisory signal is sent to the control panel and the supervisory condition is not latched at the module.
Latching: Configures the module for normally open dry contact initiating devices. When the NO input contact of an initiating device is closed, a supervisory signal is sent to the control panel and the supervisory condition is not latched at the module.
KIDDE is a registered trademark of Kidde IP Holdings Limited and is in no way affiliated with All Data Resource
Main Features
- The FX-IDCWS Connects Normally Open Waterflow Alarm and Supervisory Initiating Device Circuits (IDCS) to the Kidde Control Panel
- The FX-IDCWS is Designed for Class B Circuit Operation
Specifications
Specifications
Specifications
| UPC Code | 793016036612 |
|---|---|
| Product Model | FX-IDCWS |
| Brand Name | Kidde Commercial |
| Country of origin | China. Country of origin is subject to change. |
| Type | INITIATING CIRCUIT |
| UNSPSC Code | 46171600 |
