Kidde Commercial GSA-CT1HT | Single Input Module High Teperature Op...
Description
Description

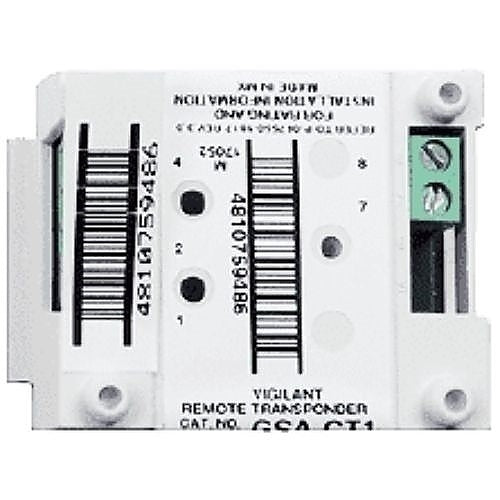

The GSA-CT1 Single Input Module, GSA-CT1HT High Temperature Single Input Module and GSA-CT2/GSA-MCT2 Dual Input Modules are intelligent analog addressable devices used to connect one or two Class B normally-open Alarm, Supervisory, or Monitor type dry contact Initiating Device Circuits (IDC).The actual function of these modules is determined by the "personality code" selected by the installer. This code is downloaded to the module from the Signature loop controller during system configuration.The input modules gather analog information from the initiating devices connected to them and convert it into digital signals. The module's on-board microprocessor analyzes the signal and decides whether or not to input an alarm.
Kidde Commercial - GSA-CT1HT - Features
- Multiple applications Including Alarm, Alarm with delayed latching (retard) forWaterflow applications, Supervisory, and Monitor. The installer selects one of four"personality codes" to be downloaded to the module through the loop controller.
- GSA-CT1HT rated for high temperature environments Suitable for attic installation and monitoring high temperature heat detectors.
- Plug-in (UIO) or standard 1-gang mount UIO versions allow quick installationWhere multiple modules are required. The 1-gang mount version is ideal for remote locations that require a single module.
- Automatic device mapping Signature modules transmit information to the loop controller regarding their circuit locations with respect to other Signature devices on the wire loop.
- Electronic addressing Programmable addresses are downloaded from the loop controller, a PC, or the Signature Program/Service Tool. There are no switches or dials to set.
- Ground fault detection by addressDetects ground faults right down to the device level.
Specifications
Specifications
Kidde Commercial - GSA-CT1HT - Specifications
| Maximum Operating Temperature | 158°F (70°C) |
|---|---|
| Minimum Operating Temperature | 32°F (0°C) |
| Product Type | Input Module |
